Description

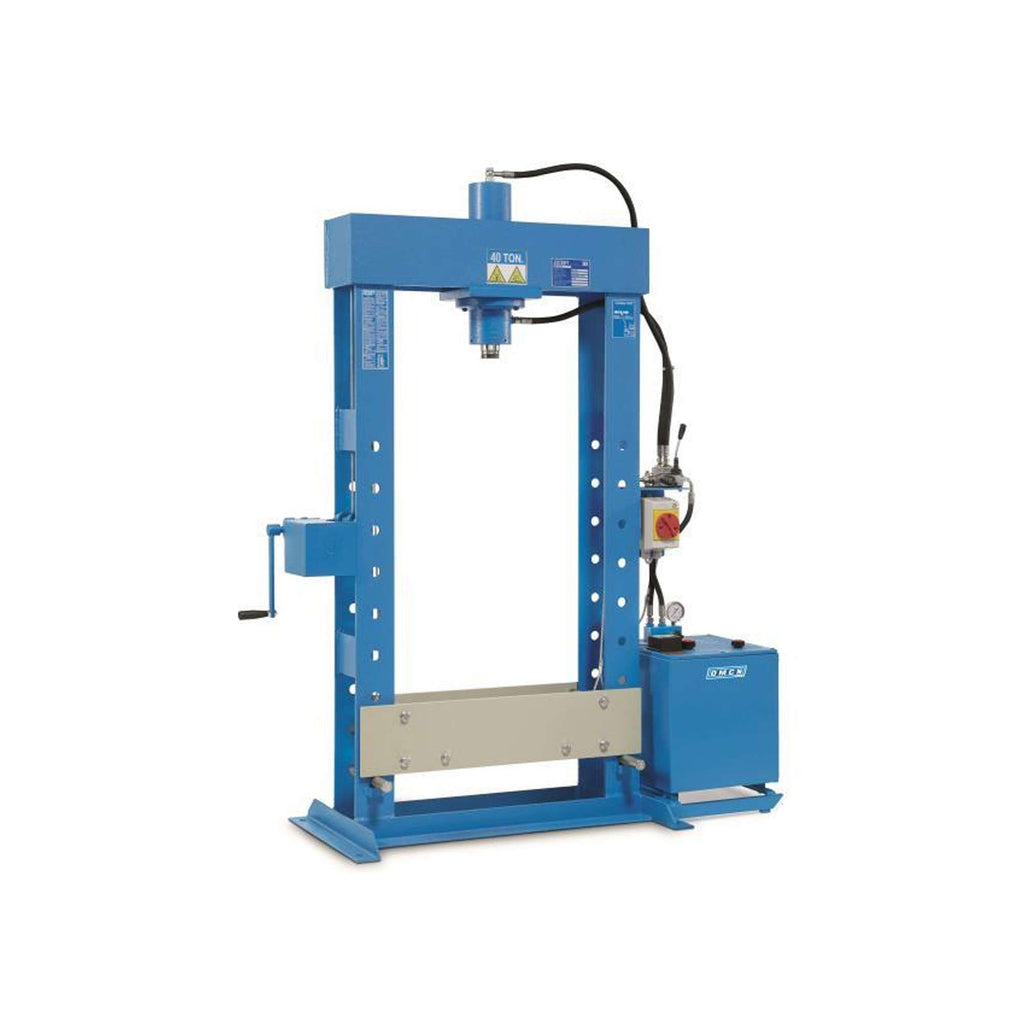

OMCN 162/W single-speed electro-hydraulic press with 3-position lever control valve actuation. Robust base frame construction providing maximum stability and minimum space requirements.
Thanks to the perforated frame, the support base can be adjusted in height so that workpieces of different sizes can be processed. The lever-operated system allows a free hand to work. The winch allows the pallet to be lifted quickly and conveniently.
+ rapid approach
+ precision
+ freedom
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 50000 kg.
Technical construction layout
Cylinder rod in special, treated and chrome-plated steel
Actuation via 3-position lever distributor
One-hand operation
One-speed pump
Calibration valve for adjusting the power according to the machining operation
Maximum versatility
Height-adjustable bed
Bench lifting by winch
Base with holes for floor fixing
Manometer supplied as standard
Dimensions and footprint
Overall dimensions 2130 x 1650 x 850 mm
Pressure 50 tonnes
Piston stroke 260 mm
Piston diameter 60 mm
Approach speed 600 mm/min
Working speed 215 mm/min
Motor power 1.5 Kw
Delivery 10-15 days
