Description

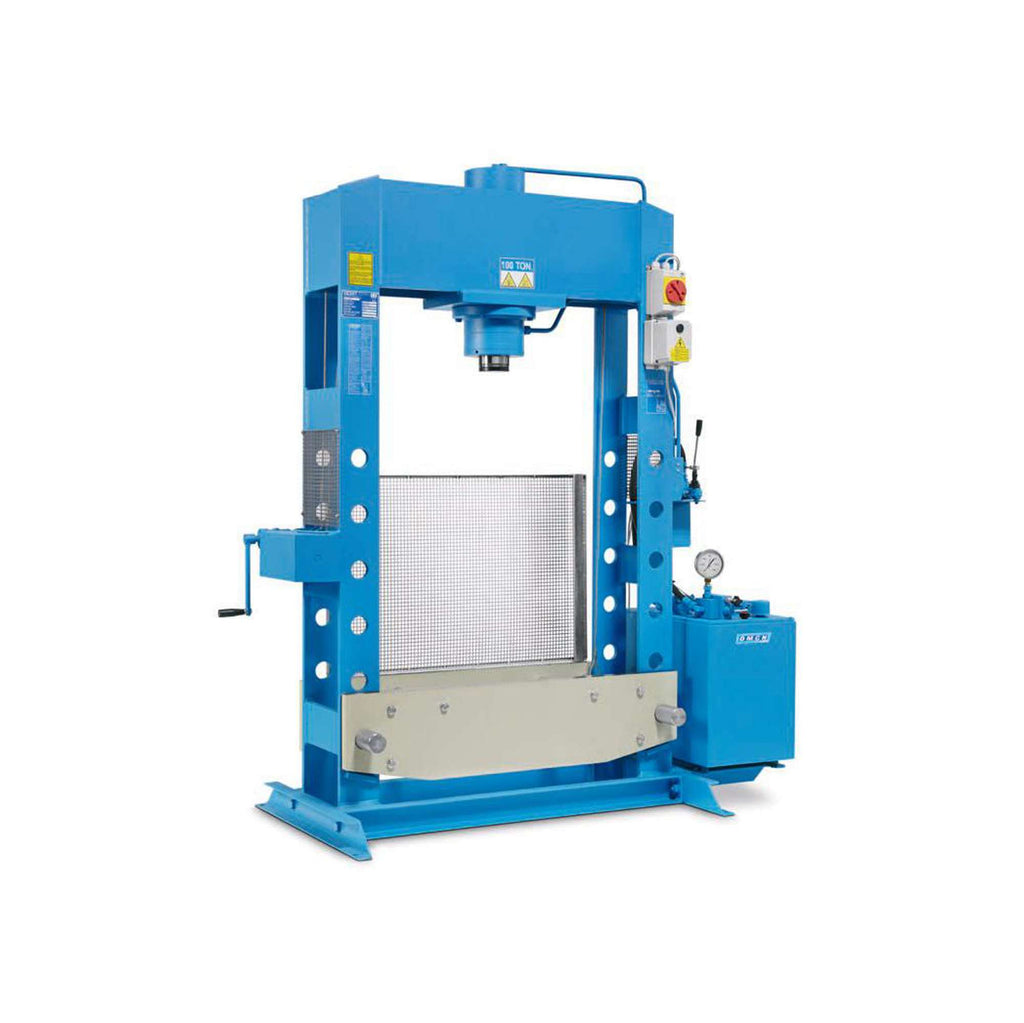

Electro-hydraulic motorised 2-speed press with automatic insertion 20 T OMCN 156/MR
The 156/MR electro-hydraulic press has a lever-operated distributor and push-button on the control panel to be operated simultaneously. Two-speed motorised control unit with automatic engagement.
The treated and chrome-plated steel cylinder rod and the steel spring inserted in the cylinder for rapid rod return, this machine is made to last, always guaranteeing optimum performance. Equipped with rear and side protection panels.
It has a power output of 0.75kw capable of generating 20T and a rod speed of 5200mm/min. Supplied with calibration valves to adjust the power according to the work to be performed.
The working space is 510x1000mm.
An adjustable height bench is included with this model. Also equipped with a large-diameter pressure gauge. Manometer supplied as standard.
It has a dimension of 1960x500x1110mm and a weight of 208kg.
Features:
20t pressing capacity
Hydraulic drive
Power 0.75 kW
Technical specifications
Motor power 0.75kW
Pressing capacity 20t
Rod speed 5200 mm/min
Working speed 300 mm/min
A 1960mm
B 500mm
C 1110mm
D 510mm
E 1000mm
F 140mm
G 285mm
H 50mm
Weight 208kg
Delivery 10-15 days
