Description

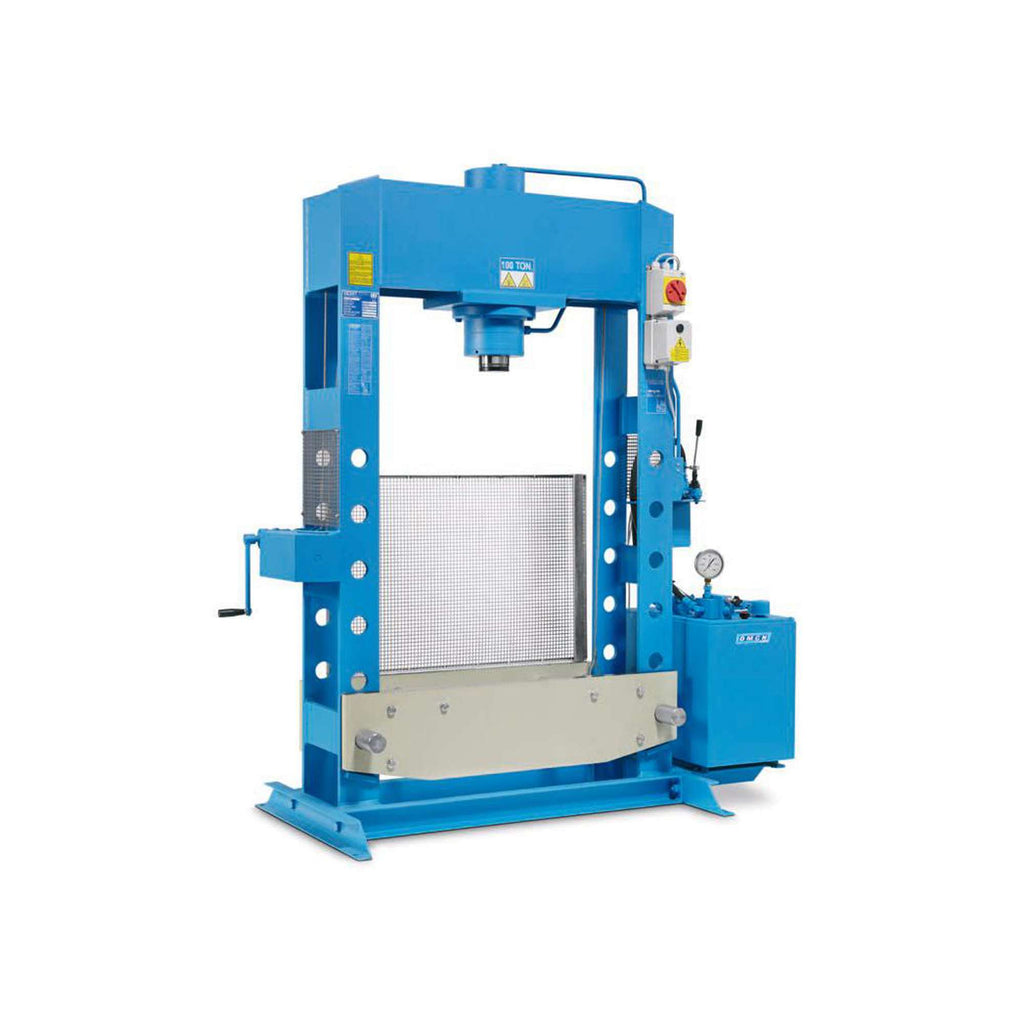

Technical construction layout
- Cylinder rod made of special steel, treated and chrome-plated.
- Two-speed motorised control unit with automatic engagement.
- Operation via lever distributor and push button on the panel to be operated simultaneously.
- Complete with rear and side protective panels in galvanised steel.
- Equipped with calibration valve to adjust the power according to the work to be carried out.
- Maximum versatility thanks to the height-adjustable bed.
- Bench lifting by means of special winch.
- Manometer supplied as standard.
Lifting capacity: 100 ton
Approach speed: 1600 mm/min
Working speed: 180 mm/min
A: 2310 mm
B: 900 mm
C: 1930 mm
D: 1010 mm
E: 1055 mm
F: 280 mm
G: 310 mm
H: 110 mm
Motor power: 3 Kw
Weight: 1100 kg
Delivery 10-15 days
