Description

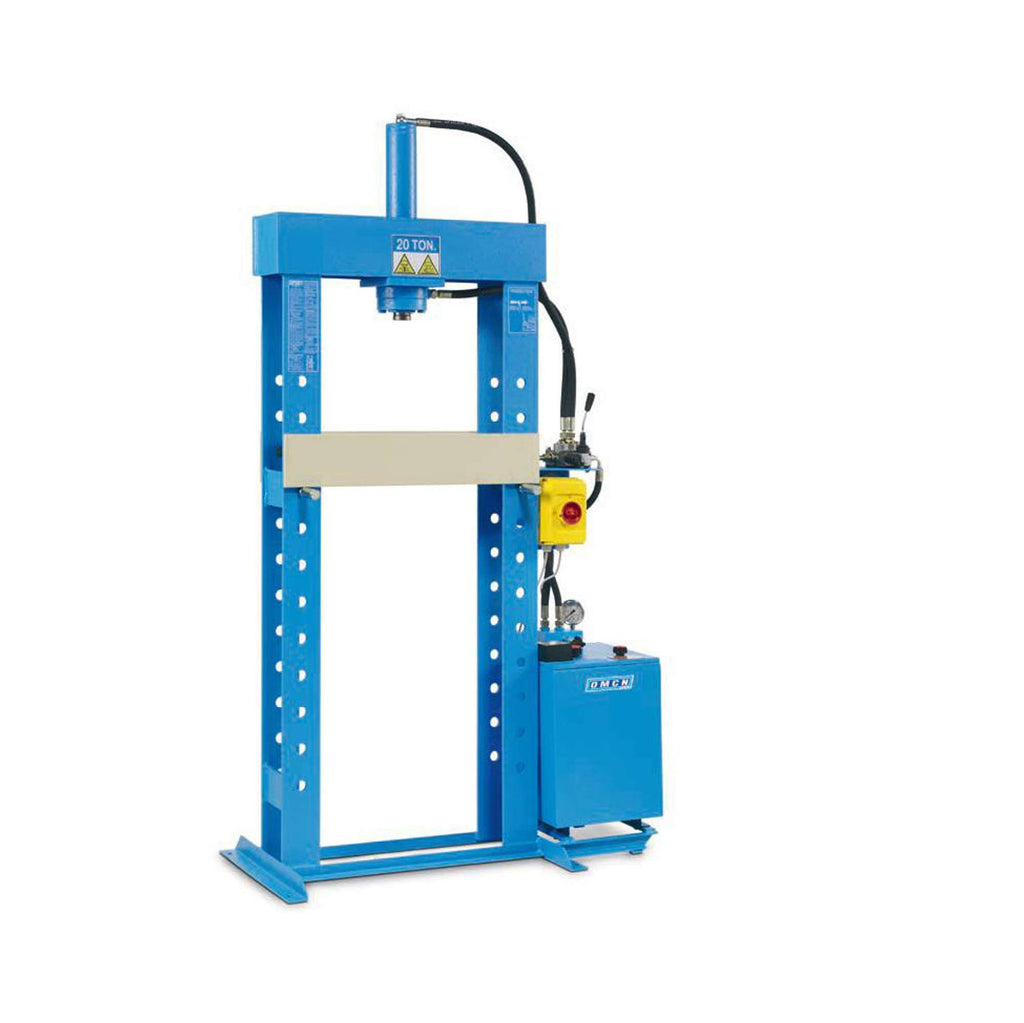

OMCN P30/W single-speed electro-hydraulic press with actuation via 3-position lever control valve. Robust base frame construction providing maximum stability and minimum space requirements.
Thanks to the perforated frame, the support base can be adjusted in height so that workpieces of different sizes can be processed. The lever-operated system allows a free hand to work. The winch allows the pallet to be lifted quickly and conveniently.
+ rapidity in approach
+ precision
+ freedom
Indispensable in the workshop and in the industrial sector, perfect for pressing metal objects, such as when assembling mechanical assemblies, pressing bearings or pulleys onto shafts.
Made in Italy and CE certified press made of robust materials that guarantee reliability over time and is capable of generating a force of 30000 kg.
Technical construction layout
Cylinder rod in special, treated and chrome-plated steel
Two-speed motorised control unit with automatic engagement
Actuation via 3-position lever distributor
One-hand operation
One-speed pump
Calibration valve for adjusting the power according to the machining operation
Maximum versatility
Height-adjustable bed
Bench lifting by winch
Base with holes for floor fixing
Manometer supplied as standard
Dimensions and footprint
Overall dimensions 2020 x 1600 x 600 mm
Pressure 30 tonnes
Piston stroke 260 mm
Piston diameter 60 mm
Working speed 575 mm/min
Approach speed 575 mm/min
Motor power 3 Kw
Delivery 10-15 days
