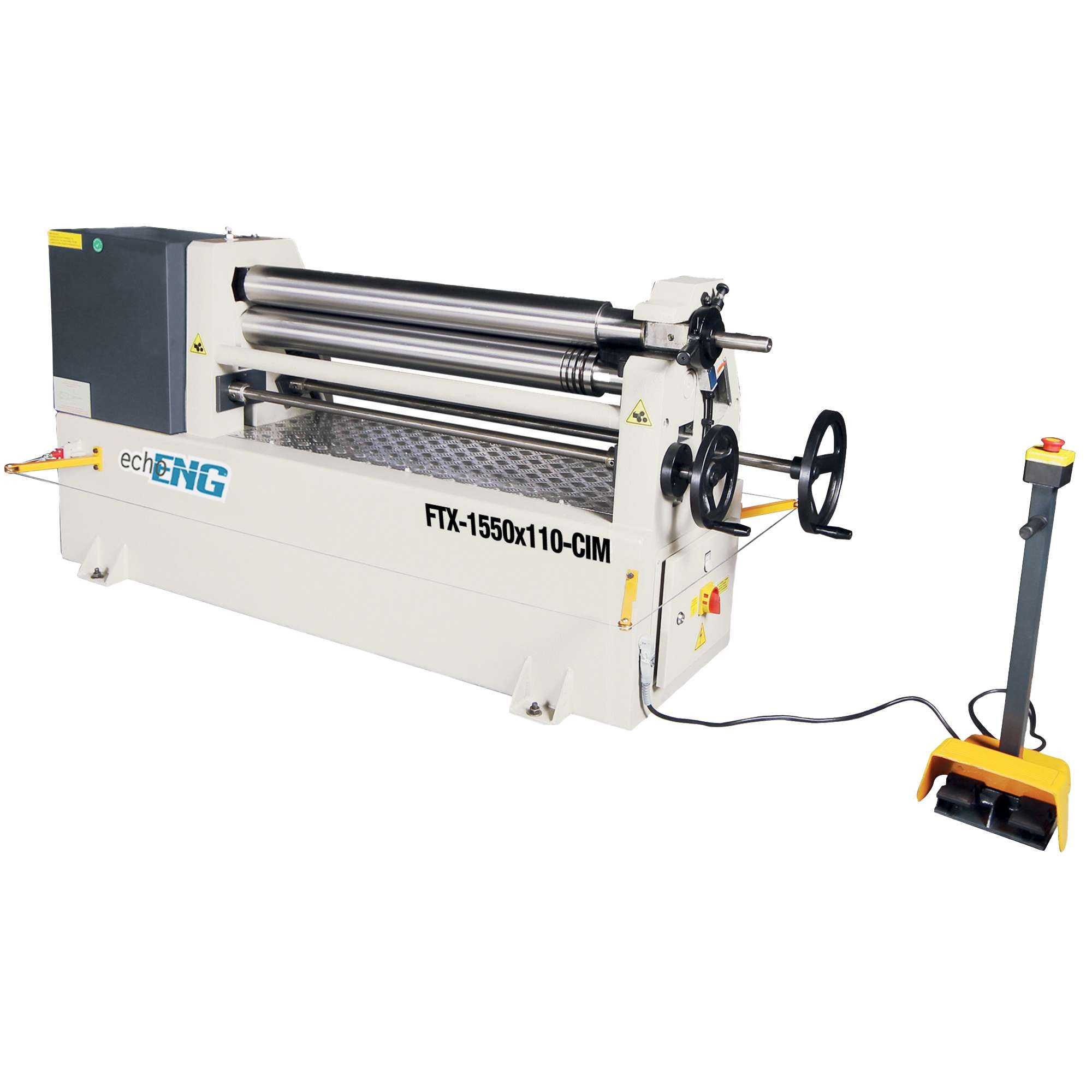

Electric Plate Rolling Machine FTX-1550X110-CM 400V ENG PRO Fortex
Description
The FTX-1550X110-CM ENG PRO is a professional electric plate rolling machine designed to deliver precision and reliability in the bending of light and medium sheet metal. Ideal for working with stainless steel and aluminum, it stands out for its ease of use, robust construction, and compliance with CE safety regulations.
Equipped with a mobile control panel with push buttons, it ensures simple and safe operation. The integrated conical bending system, induction-hardened rollers made of SAE 1050 steel, and a brake motor provide accurate and high-performance rolling.
Main Features
- Easy operation with mobile control panel and push buttons
- Integrated conical bending device
- Suitable for light and medium sheets in aluminum or stainless steel
- Constructed in accordance with CE safety regulations
- Manual drop-end for easy removal of the finished cylinder
- Main motor equipped with braking system
- Precision rolling with brake motor
- Rollers made of SAE 1050 induction-hardened steel with high tensile strength
- Two rollers driven by a single gearbox and gear system for top and bottom rollers
- Main frames made of spheroidal cast iron for increased stability
- Wire grooves on the roller ends
Technical Data
| Specifications | FTX-1550X110-CM ENG PRO |
|---|---|
| Power supply | 400 V - 3 Phase |
| Power | 2.2 kW - 2.9 HP |
| Roller speed | 3 RPM |
| Working width | 1,550 mm |
| Maximum sheet thickness | 3.0 mm |
| Roller diameter | 110 mm |
| Net / Gross weight | 1,200 kg / - |
| Overall dimensions | 1000 x 750 x 2700 mm |
