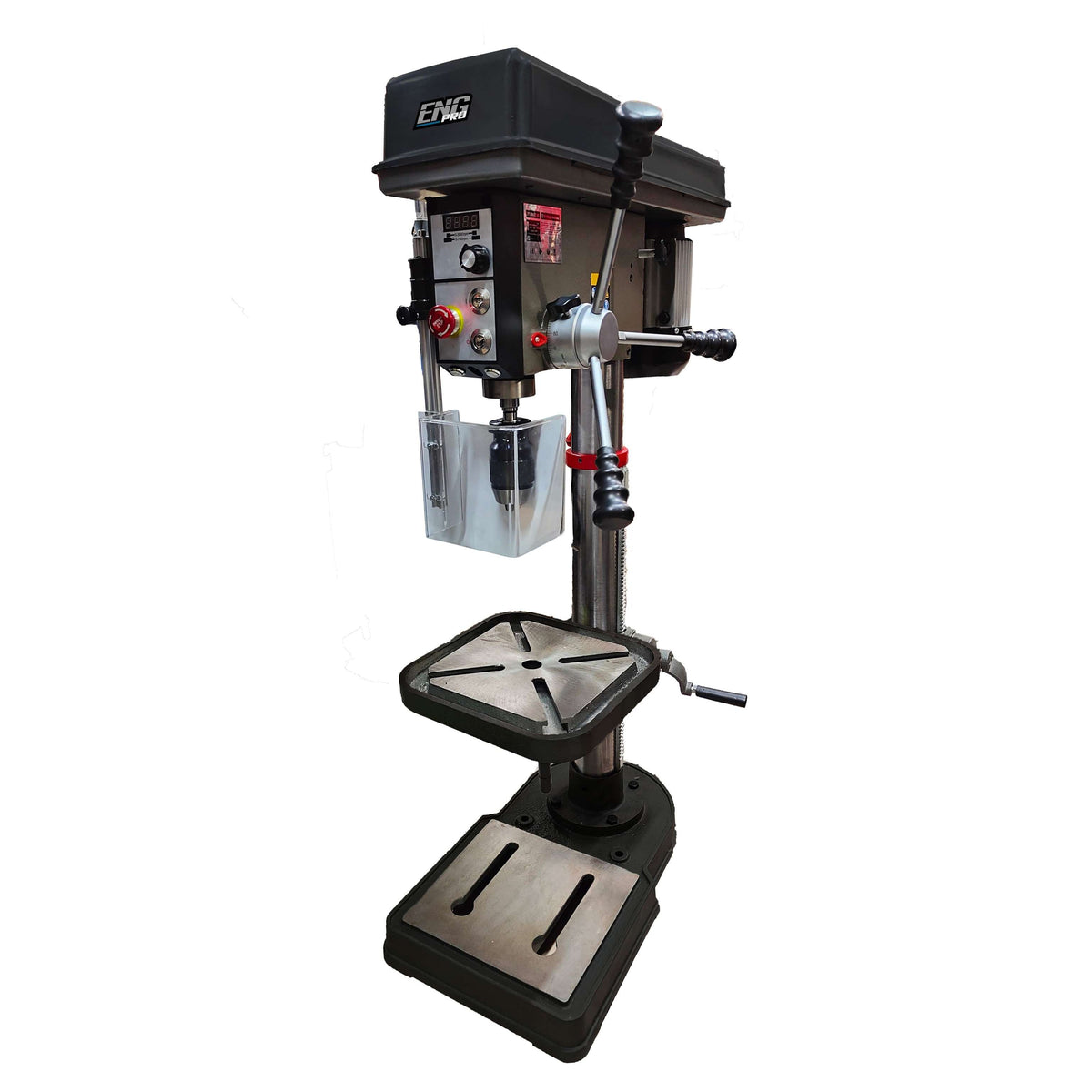

FTX-20S-VS VARIO 230V Column Drill with Automatic Chuck and Variable Speed
The FTX-20S-VS VARIO column drill is a compact professional machine tool designed to deliver precision, versatility, and reliability in drilling and tapping operations in mechanical workshops, production departments, and industrial environments.
The multi-groove belt transmission ensures high traction and noise reduction, while the spindle mounted on ball bearings guarantees stability and precision even during continuous operation. The robust structure, featuring cast motors and pulleys, is engineered to withstand intensive workloads over time.
Powered by 230V single-phase, the drill uses an industrial three-phase motor controlled by a vector frequency inverter, allowing continuous electronic speed adjustment across a dual range of 0–700 and 0–3000 RPM, optimizing energy consumption and operational control.
The machine features a 360° rotatable and ±45° tiltable worktable with vertical rack movement, ideal for angular operations and workpieces of various sizes. Additional features include a cross laser pointer, LED lighting, LED tachometer, micrometric spindle feed control, and an automatic chuck for practical and efficient use.
The high-durability metal controls, safety switch on belt guard opening, and CE-compliant construction make the FTX-20S-VS VARIO a safe, robust, and versatile solution, perfect for continuous professional applications.
Technical Specifications
| Feature | Value |
|---|---|
| Power Supply | 230V / Single-phase (F1) |
| Power | 0.75 – 1 kW / HP |
| Transmission | Multi-groove belt |
| Number of Speeds | 2 – Variable |
| Spindle Speed | 0 – 700 / 0 – 3000 RPM |
| Maximum Drilling Capacity | 20 mm |
| Spindle-Chuck Distance | 190 mm |
| Spindle-Table Distance | 470 mm |
| Spindle-Base Distance | 670 mm |
| Morse Taper | MT2 |
| Maximum Drilling Depth | 80 mm |
| Column Diameter | 73 mm |
| Table Dimensions | 270 × 270 mm |
| Total Height | 1065 mm |
| Net / Gross Weight | 59 / 62 kg |
| Machine Dimensions | 895 × 490 × 345 mm |
