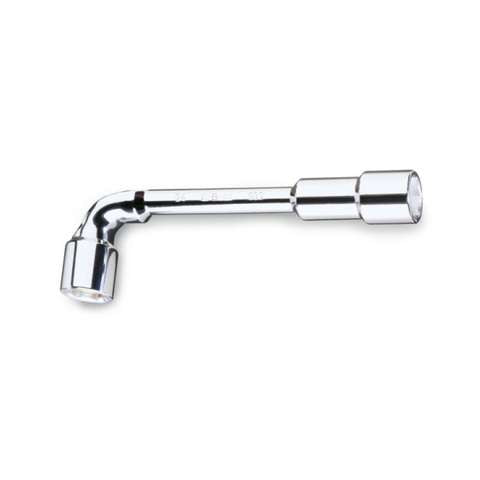

Double ended offset hexagon socket wrenches, bright chrome-plated - 933 Beta

BetaSKU: 245_015_TECN322(54-72)___245_015_TECN32254

nome_variante: Measure(mm)
variante_1: 6x6mm - TECN32254
Price:
Sale price€10,66
Availability : 4

Description

Double ended offset hexagon socket wrenches, bright chrome-plated

• Special heat treatment for increased surface hardness.
• They stand out from double ended hexagon/bi-hex socket wrenches item 937 for glossy surface finish, obtained from mechanical and manual working processes.
• Can be used with sliding handle in through hole.
• Hole on short side allows access to nut, e.g. with projecting threads.

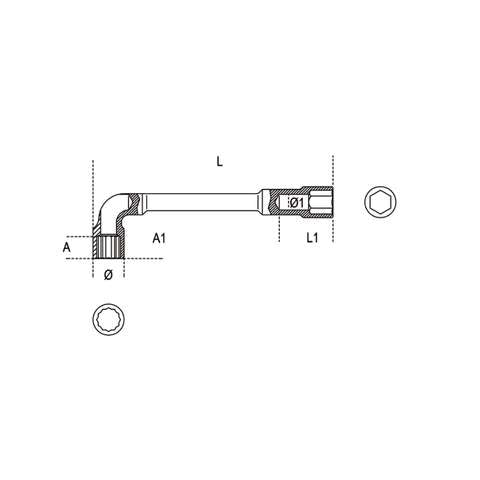

Product name
Art.


mm

Ø
mm

L
mm

Ø1
mm

A
mm

A1
mm

L1
mm


g

009330006 933 6X6 6x6 11,5 110 5,0 8,0 15,0 15,0 55
009330007 933 7X7 7x7 12,5 116 6,0 9,0 18,0 15,0 60
009330008 933 8X8 8x8 13,0 120 6,0 11,0 20,0 21,0 65
009330009 933 9X9 9x9 14,0 125 7,0 11,0 20,0 21,0 75
009330010 933 10X10 10x10 16,5 133 8,0 13,0 22,0 25,0 105
009330011 933 11X11 11x11 17,5 143 8,5 14,0 23,0 25,0 125
009330012 933 12X12 12x12 19,0 148 8,5 14,0 25,0 25,0 165
009330014 933 14X14 14x14 21,5 167 10,0 17,0 28,0 34,0 220
009330015 933 15X15 15x15 22,5 182 10,0 17,0 29,0 40,0 235
009330016 933 16X16 16x16 24,5 193 11,0 20,0 33,0 40,0 335
009330017 933 17X17 17x17 26,0 198 12,0 20,0 34,0 44,0 340
009330019 933 19X19 19x19 29,0 220 14,0 22,0 35,0 48,0 435
009330020 933 20X20 20x20 30,5 222 14,0 22,0 37,0 48,0 485
009330022 933 22X22 22x22 32,5 250 16,0 25,0 41,0 52,0 610
009330024 933 24X24 24x24 35,0 272 19,0 27,0 46,0 55,0 805
