Description

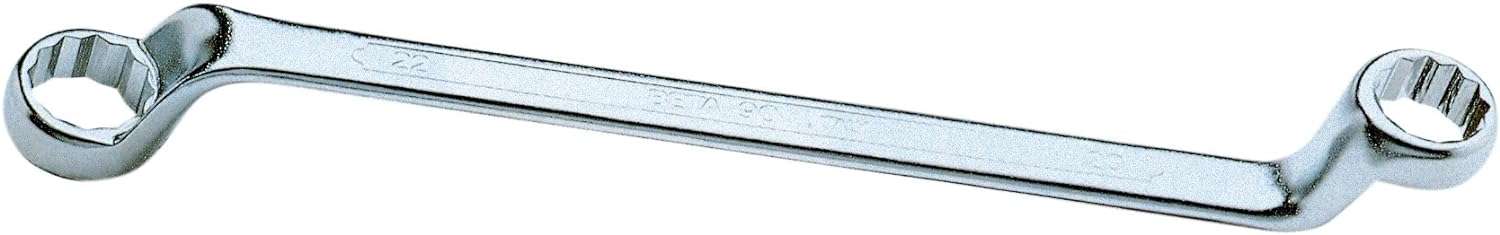

Double ended deep offset ring wrenches
| Product Name |
Art. |
mm |
L mm |
Ø mm |
Ø1 mm |
H mm |
S mm |
S1 mm |
g |
|---|---|---|---|---|---|---|---|---|---|
| 000900006 | 90 6X7 | 6x7 | 165 | 10,9 | 12,4 | 19,0 | 5,0 | 5,5 | 35 |
| 000900012 | 90 8X9 | 8x9 | 180 | 13,9 | 15,4 | 20,0 | 6,0 | 6,5 | 44,5 |
| 000900018 | 90 10X11 | 10x11 | 195 | 16,6 | 18,0 | 22,0 | 7,0 | 7,5 | 71 |
| 000900027 | 90 12X13 | 12x13 | 215 | 19,6 | 21,0 | 24,0 | 8,0 | 8,5 | 106 |
| 000900033 | 90 14X15 | 14x15 | 230 | 22,2 | 23,6 | 25,0 | 9,0 | 9,5 | 133 |
| 000900039 | 90 16X17 | 16x17 | 250 | 25,0 | 26,3 | 28,0 | 10,0 | 10,5 | 165 |
| 000900045 | 90 18X19 | 18x19 | 265 | 27,6 | 29,0 | 30,0 | 11,0 | 11,5 | 214 |
| 000900051 | 90 20X22 | 20x22 | 285 | 30,4 | 33,2 | 31,0 | 12,0 | 13,0 | 275 |
| 000900057 | 90 21X23 | 21x23 | 305 | 31,8 | 34,6 | 32,0 | 12,5 | 13,5 | 315 |
| 000900063 | 90 24X26 | 24x26 | 325 | 36,0 | 40,5 | 33,7 | 14,0 | 15,0 | 411 |
| 000900070 | 90 25X28 | 25x28 | 340 | 37,5 | 42,0 | 34,9 | 14,5 | 15,5 | 484 |
| 000900073 | 90 27X29 | 27x29 | 355 | 40,5 | 44,0 | 36,8 | 15,3 | 16,3 | 513 |
| 000900080 | 90 30X32 | 30x32 | 375 | 44,0 | 47,0 | 38,0 | 16,0 | 16,5 | 617 |
