Description

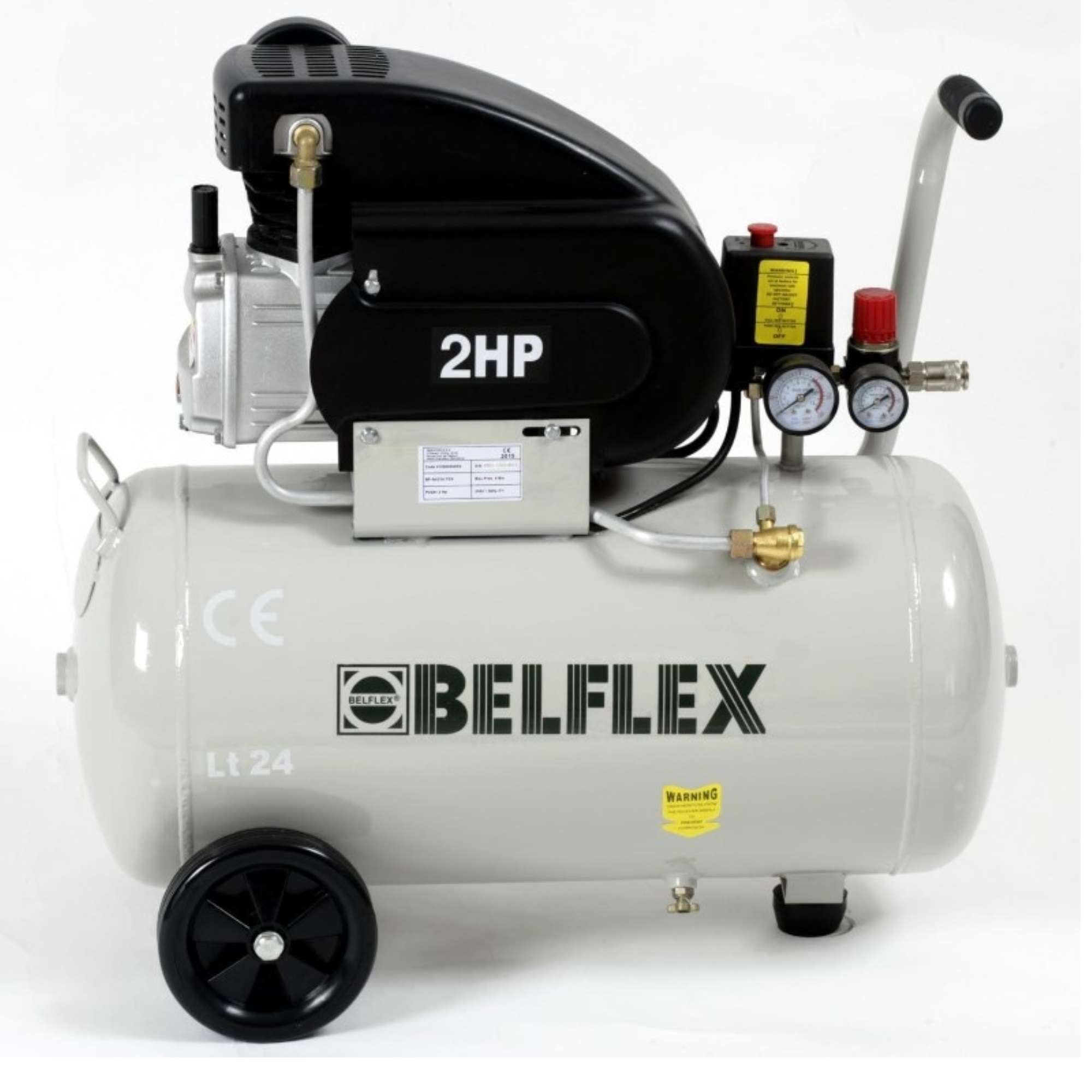

Direct drive compressor 8Bar - Belflex
Features
Oil lubricated. Lightweight and compact.
Long-life cast steel cylinder.
Equipped with two pressure gauges, transport wheels and handle.
High level of safety.
Technical Specifications
| CODE | 410000020ES | 410000040ES |
|---|---|---|
| Power supply | 230 V/F1 | 230V/F1 |
| Boiler capacity | 24 litres. | 50 litres |
| Energy | 1,5 - 2 Kw-Hp | 1,5 - 2 Kw-Hp |
| Intake air | 200 Lt/min. | 200 Lt/min. |
| revolutions per minute | 2.800 N./min. | 2.800 Nº/min. |
| Cylinders | 1 n. | 1 n. |
| No. Phases | 1 n. | 1 n. |
| Maximum pressure Bar. | 8 bar. | 8 Bar. |
| Noise level | 90dB. | 90dB |
| Net/gross weight | 240 kg | 130 Kg. |
| Dimensions | 575X255X600mm. | 730X325X680 mm |
Delivery in 10/15 days
