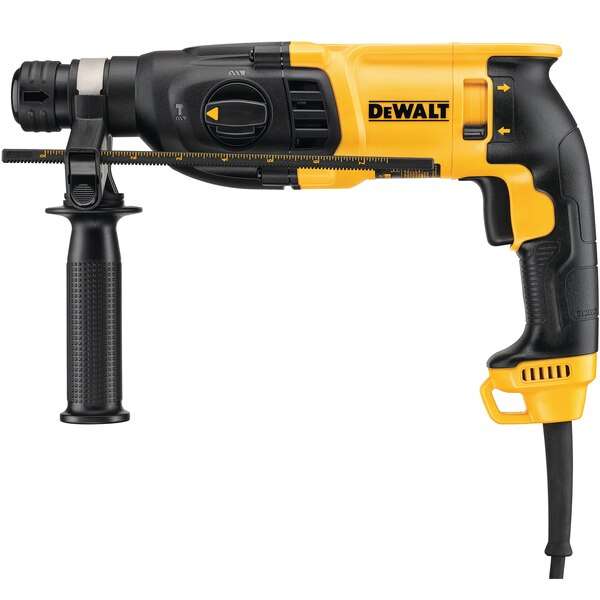

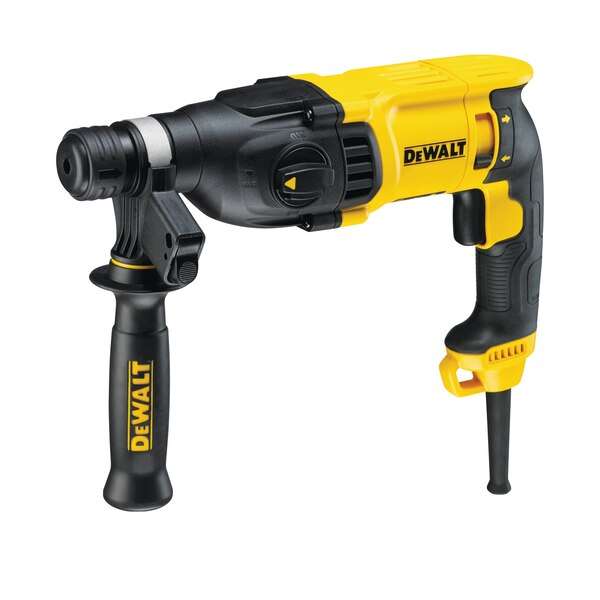

Dewalt Tessellator SDS-Plus, 3 Modes, 800 W, Power 2.6J mod. D25133K-QS

DewaltSKU: 188_002_D25133K-QS

Sale price€133,36
Availability : 6


SDS-Plus Dowel, 3 Modes, 800 W, Power 2.6J - Dewalt - D25133K-QS

The Dewalt doweler offers a power of 2.6 J. It is ideal for making anchoring and fixing holes in concrete, masonry, other materials, small demolitions and plaster removals.

High performance

The dowel reach an unladen speed of 1,500 rpm and 5,500 strokes per minute, has a maximum drilling capacity of 26 mm in concrete, 30 mm in wood and 13 mm in metal. Ideal for a range of heavy drilling tasks.


Thanks to the ROTOSTOP it is possible to have total control of the tessellator.

It is possible to block the rotation for tracing and light chiselling activities, or with the exclusion of percussion it is possible to drill in wood and metal.

The anti-rotation mechanical clutch system detects abrupt rotational movements avoiding the blockage of the tip and the consequent breakage, also preventing damage to the operator during use.

Product design

Equipped with an ergonomic rubber-coated side handle, it ensures greater comfort for prolonged use.

The dowel is also equipped with special slots for the air outlet, designed to protect the user's eyes from dust and debris.



Weight 2.6 kg

Max drilling diameter – Concrete 26 mm

Max drilling diameter – Metal 13 mm

Max drilling diameter – Wood 30 mm

Shot energy 2.6 J

No-load speed 0-1500 rpm

Hand/arm vibration - concrete drilling 15.4 m/s²

Wire Power Source

Power consumption 800W

SDS-Plus attack

Vibration control No

Anti-rotation system No

Clutch Yes

Compatible with powder solution Yes

Protect No

Quick change spindle No

Hammer drilling mode Yes

Chipping mode Yes

Rotation mode only Yes

Max. drilling capacity (Crown) 50 mm

Height 210 mm

Length 335 mm

Width 75 mm

Uncertainty (Vibration) 1.5 m/s²,1.5 m/s²

Hand/arm vibration - Chiseling 14.9 m/s²

Hand/Arm Vibration - Metal Drilling <2.5

Uncertainty K4 (Vibration) 1.5 m/s²

Sound pressure 89 dB(A)

Uncertainty (Sound power) 3.8 dB(A)

Acoustic power 100.1 dB(A)

Percussion per minute 0-5500 Perc./min


Included with the article:

  • TSTAK briefcase
  • Adjustable anti-vibration side handle
  • Depth stop
