IlixSKU: 232_013_IL6216/2___232_013_IL6216/210
nome_variante: Ø Drill bit
variante_1: 10 mm - IL6216/210
Price:
Login to view price
Availability : 3
Register to buy
Download datasheet

Description

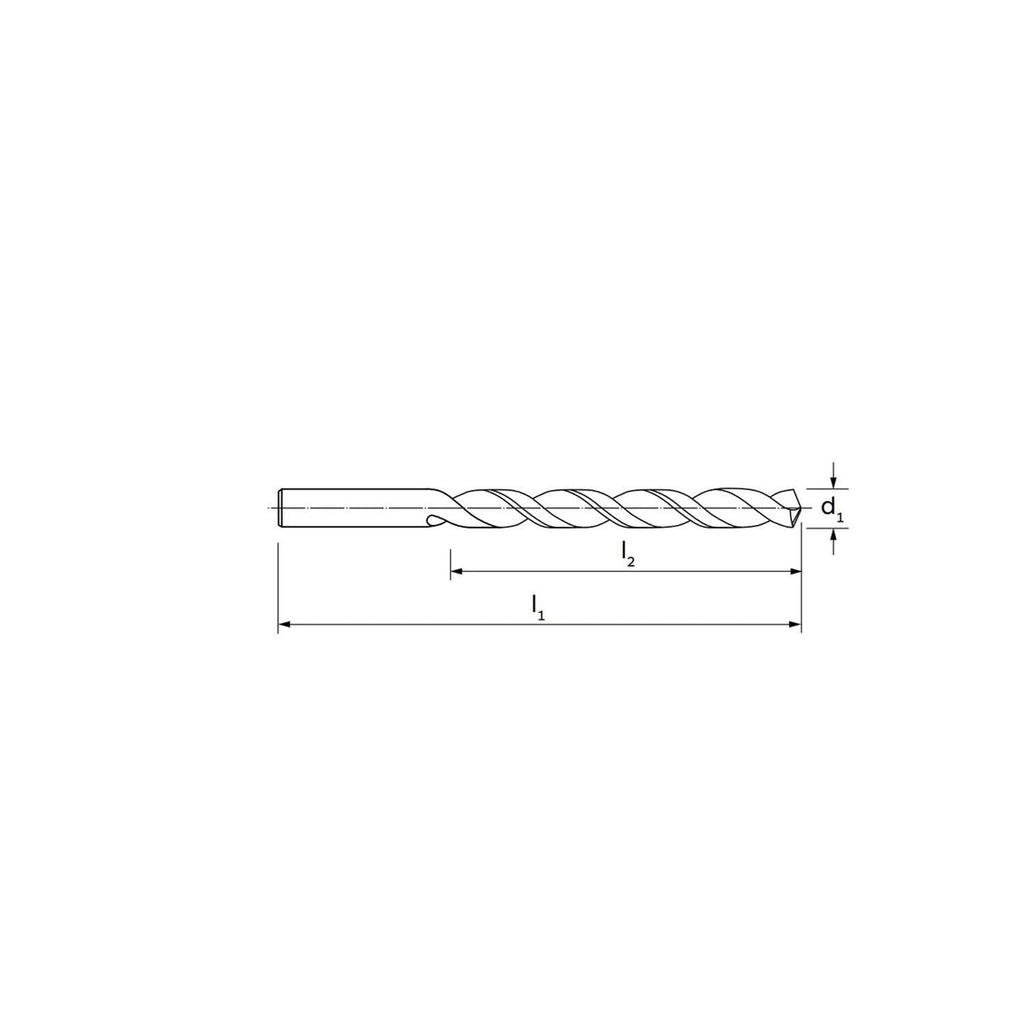

STL - DEEP HOLE DRILLING SPECIFICATION - DIN 1869-2 - CATALOGUE 6216/2

Ø L1 L2
3 190 130
3.5 210 145
4 220 150
4.5 235 160
6 260 180
6.5 275 190
7 290 200
7.5 290 200
8 305 210
8.5 305 210
9 320 220
9.5 320 220
10 340 235
10.5 340 235
11 360 250
11.5 360 250
