IlixSKU: 232_013_IL6277___232_013_IL627710,4
Ø Drill bit: 10,4 mm - IL627710,4
Price:
€29,63
Availability : 3
Register to buy

Description

N - GENERIC APPLICATIONS - DIN 335 - CATALOGUE 6277

Coating: HSS

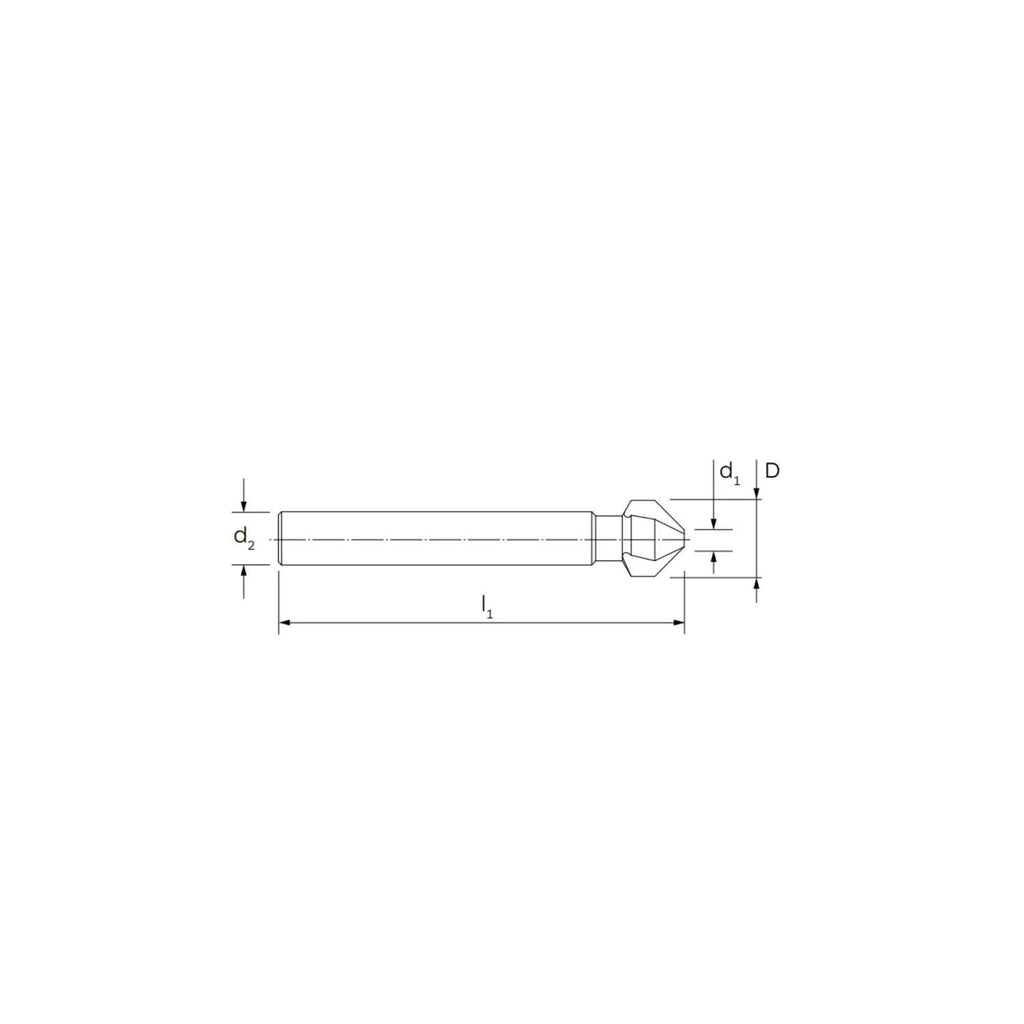

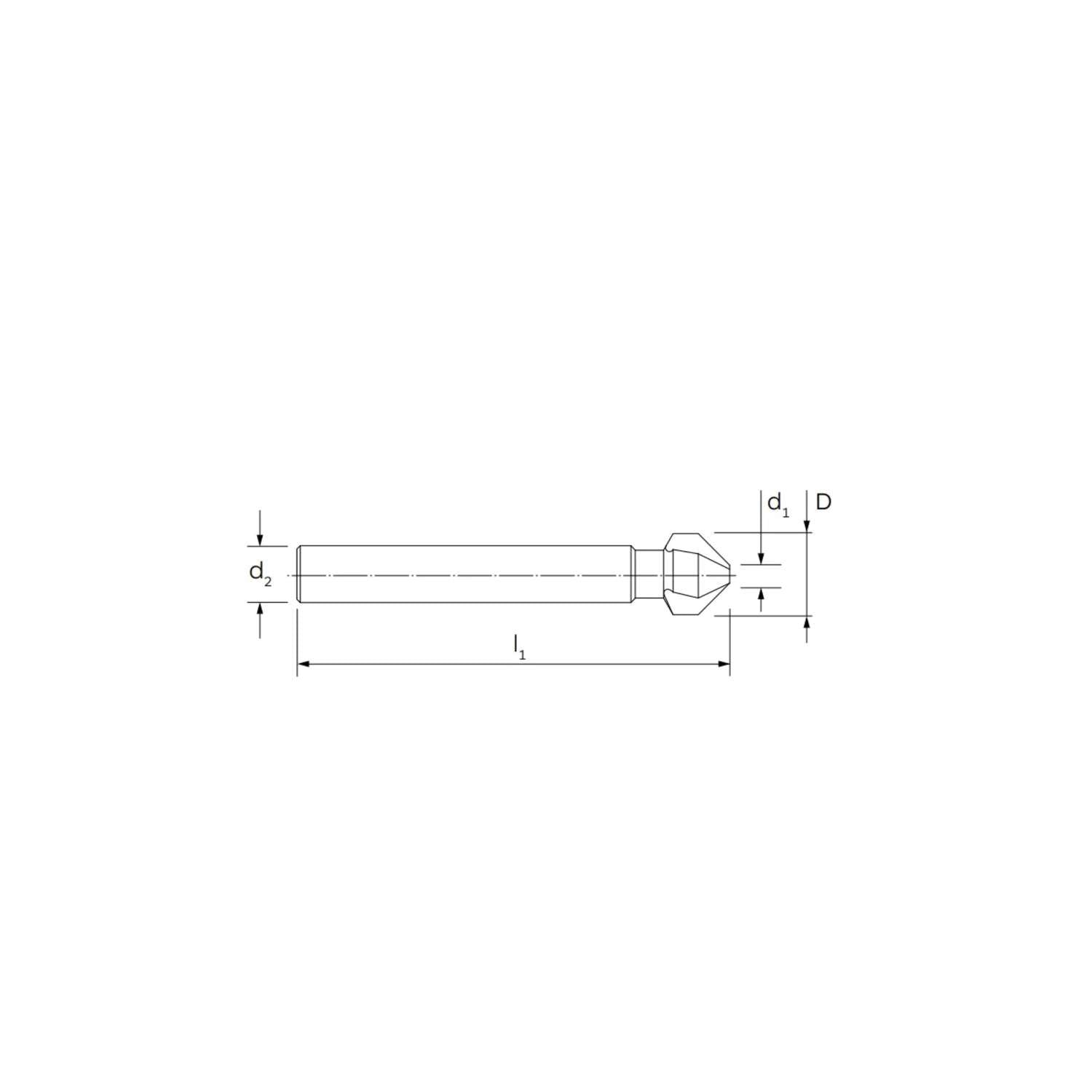

Ø L1 D2h9 Ø minimal Esec. fine Esec. Middle
4.3 40 4 1,3 M 2 M 1,8
6.3 45 5 1,5 M 3 M 2,5
7.3 50 6 1,8 M 3,5 M 3
8 50 6 2 M 4 M 3,5
8.3 50 6 2 M 4 M 3,5
10.4 50 6 2,5 M 5 M 4
12.4 56 8 2,8 M 6 M 5
20.5 63 10 3,5 M 10 M 8
25 67 10 3,8 M 12 M 10
30 71 12 4,2 M 12 M10
