Description

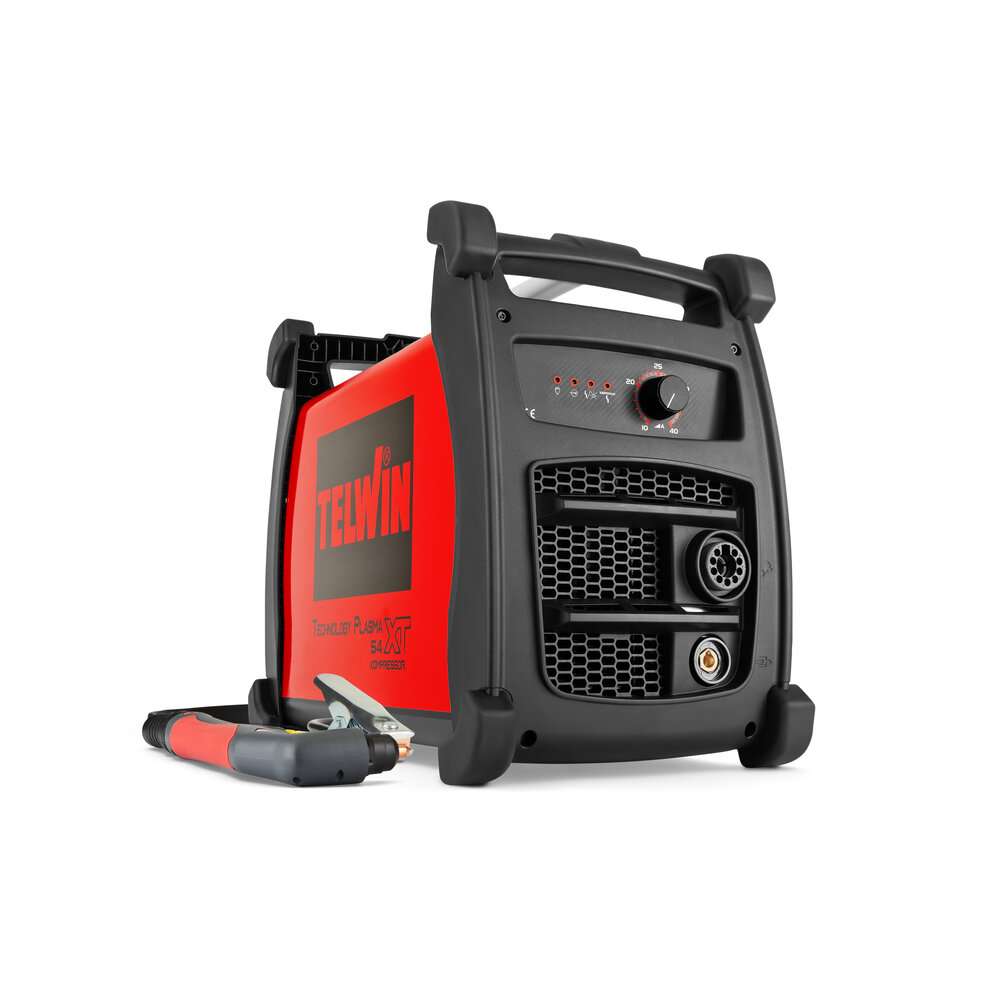

TECHNOLOGY PLASMA 54 XT KOMPRESSOR



Overview

TECHNOLOGY PLASMA 54 XT KOMPRESSOR

code 816147
Inverter, compressed air plasma cutting system, with contact striking of pilot arc.
Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
The model is equipped with a compressor and needs not to be connected to an external compressed air power source.
Features:
- robust and impact resistant;
- reduced weight and dimensions;

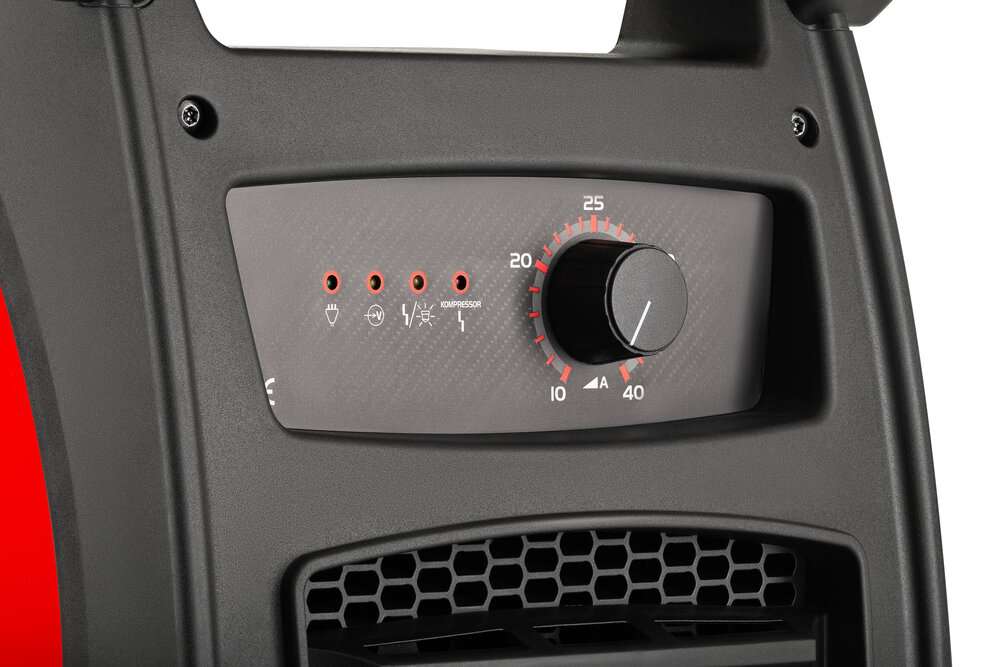

- warning led for torch under voltage, protections;
- warning led for consumables change;
- torch automatic cooling;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PK torch.


Technical data



MAINS FUSE 16 A
SINGLE PHASE MAINS VOLTAGE 230 V
EFFICIENCY 82 %
MAINS FREQUENCY 50 / 60 Hz
POWER FACTOR 0,7
CURRENT RANGE 10 - 40 A
MAX CUTTING THICKNESS 12 mm
MAX. CURRENT 35 @ 30 % A
PROTECTION DEGREE IP23
MAX NO LOAD VOLTAGE 313 V
DIMENSIONS 47 x 26 x 37,8 cm
MAX ABSORBED CURRENT 27,5 A
WEIGHT 17,8
MAX ABSORBED POWER 4,5 kW
