Compressed air plasma cutting Technology Plasma 41 XT 230V - 816146 Telwin

TelwinSKU: 188_002_TAGL816146

Price:
Sale price€751,10
Availability : 1

Description

TECHNOLOGY PLASMA 41 XT

Overview

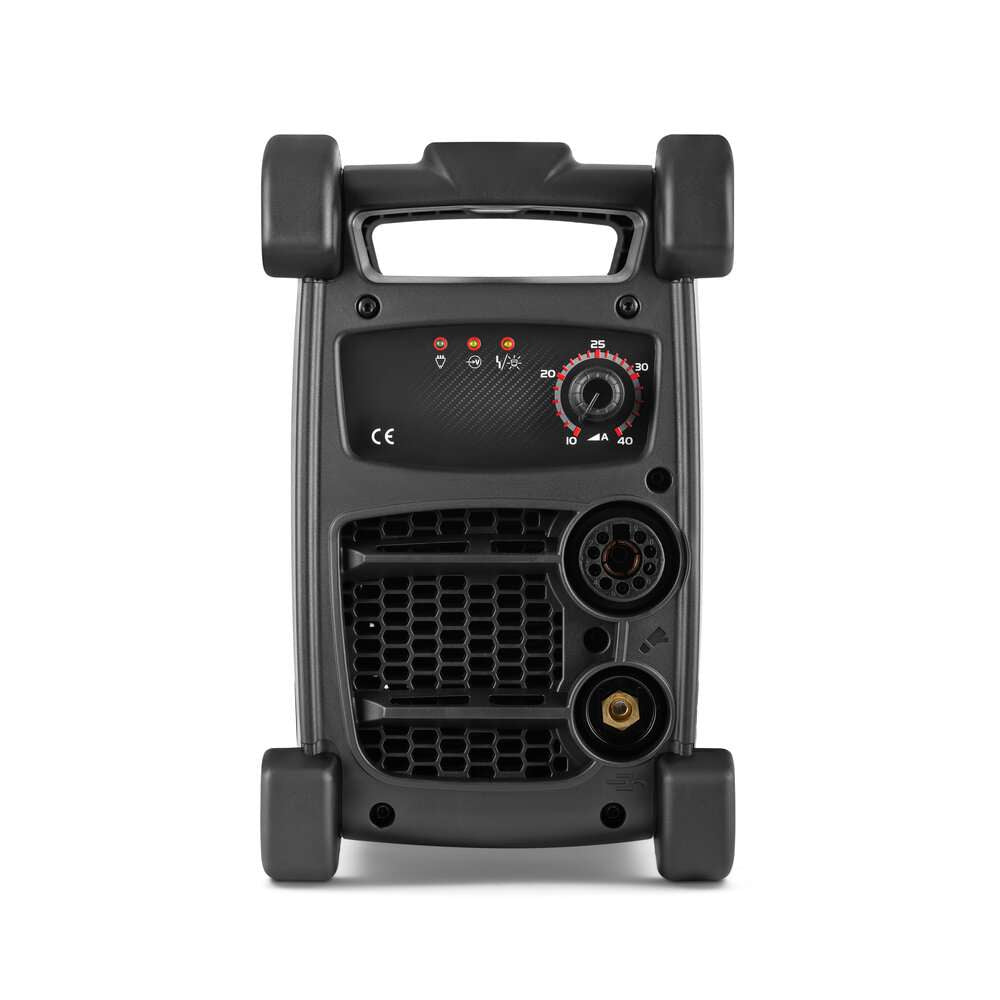

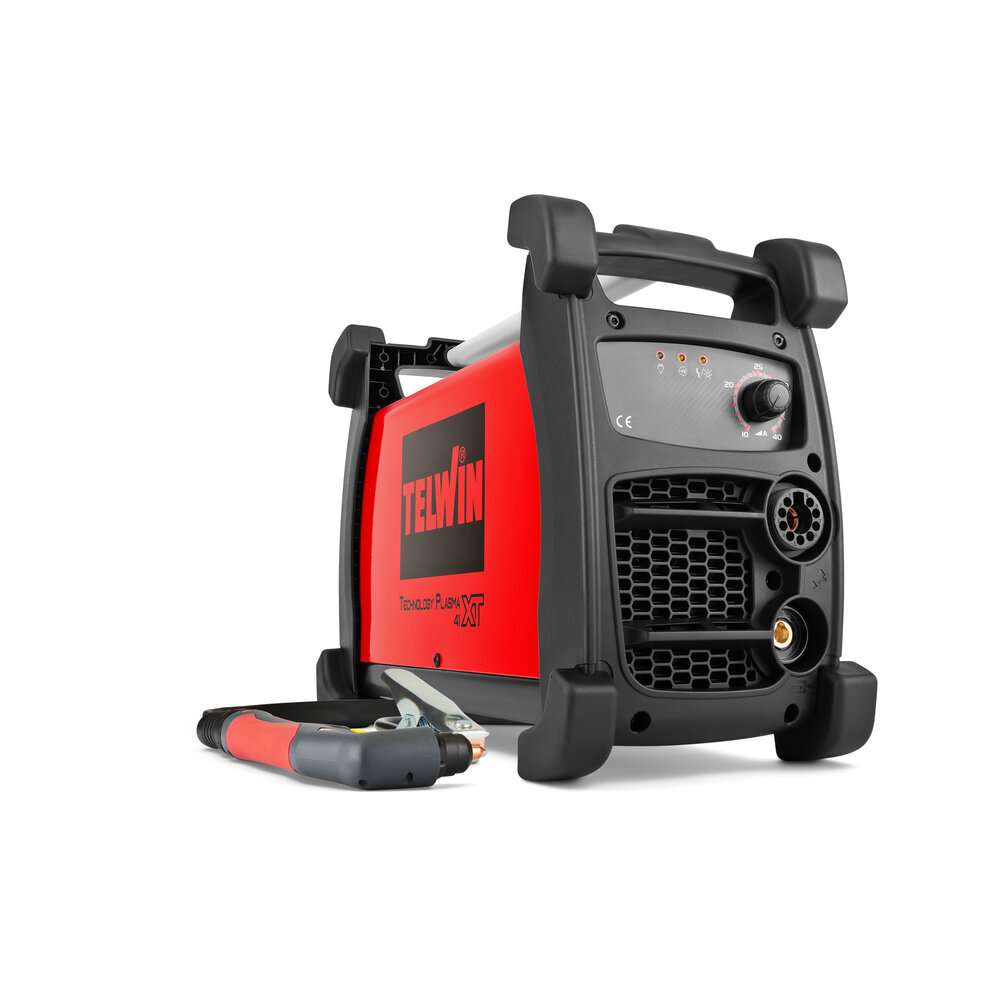

TECHNOLOGY PLASMA 41 XT

code 816146

Inverter, compressed air plasma cutting system, with contact striking of pilot arc. Allows a rapid, distortion-proof cutting of all conductive materials such as steel, stainless steel, galvanised steel, aluminium, copper, brass, etc.
Ideal for numerous applications and environments, from maintenance to bodyshops.
Features:
- robust and impact resistant;
- reduced weight and dimensions;
- ideal for cutting hollow square pipes;

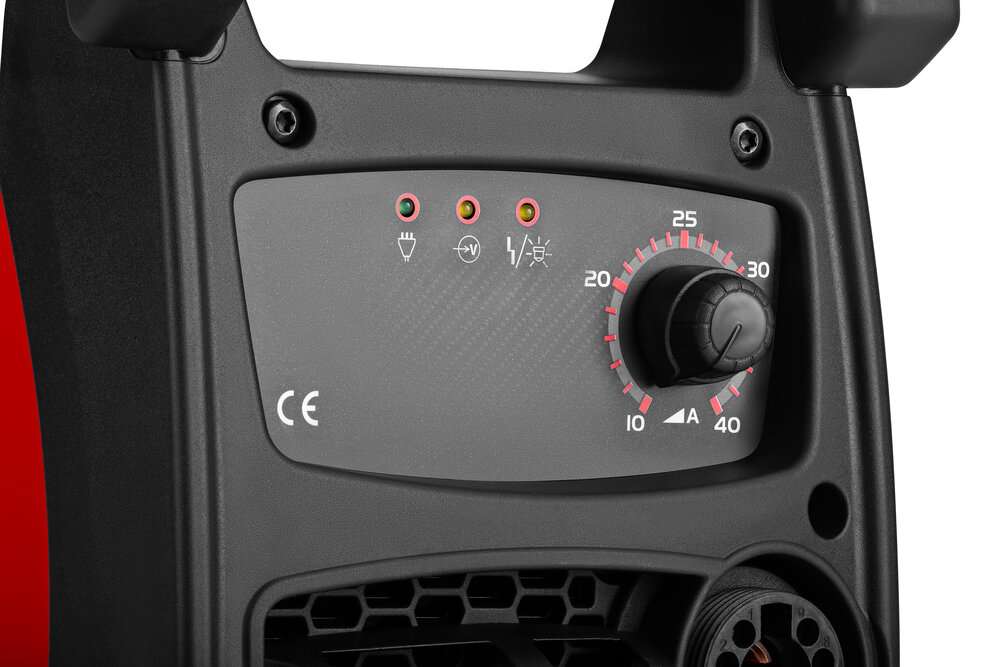

- warning led for torch under voltage, protections;
- torch automatic cooling;
- warning led for consumables change;

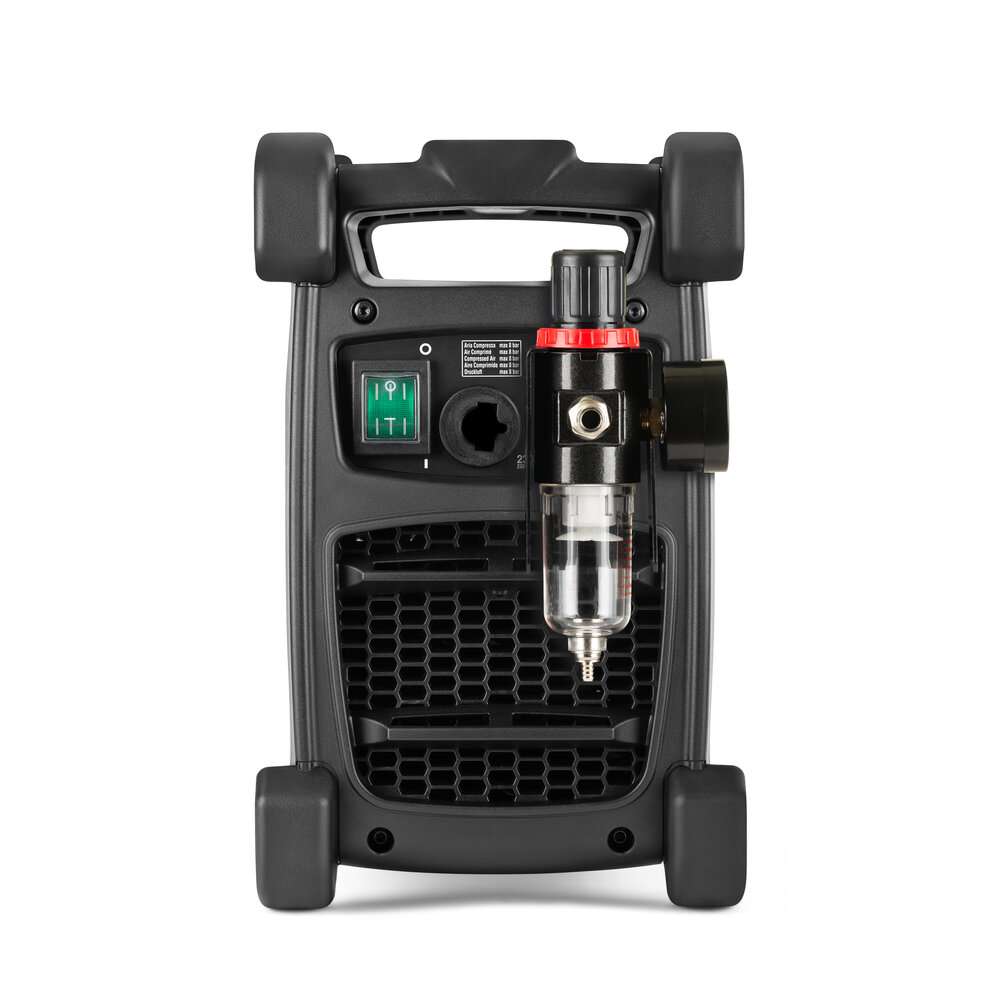

- visualization of air pressure;
- max. cutting thickness 15mm;
- manometer metallic protection;
- thermostatic, overvoltage, undervoltage, overcurrent, air failure protections.
Complete with PH torch.



Technical data

EFFICIENCY 85 %
SINGLE PHASE MAINS VOLTAGE 230 V
POWER FACTOR 0,7
MAINS FREQUENCY 50 / 60 Hz
MAX CUTTING THICKNESS 15 mm
CURRENT RANGE 10 - 40 A
COMPRESSED AIR CAPACITY 100 l/min
MAX. CURRENT 35 @ 30 % A
COMPRESSED AIR PRESSURE 4 - 5 bar
MAX NO LOAD VOLTAGE 313 V
PROTECTION DEGREE IP23
MAX ABSORBED CURRENT 25 A
DIMENSIONS 47,5 x 18,2 x 29,2 cm
MAX ABSORBED POWER 4 kW
WEIGHT 9
MAINS FUSE 16 A
