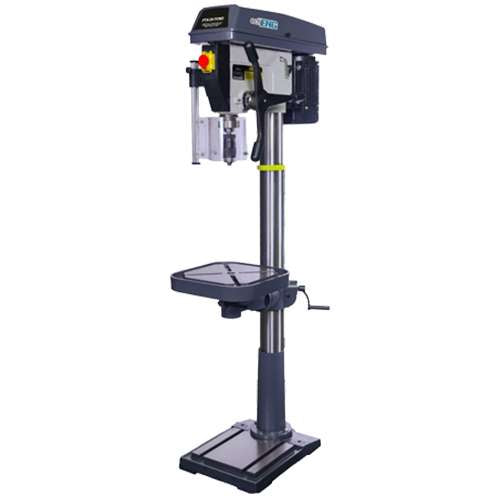

Professional Bench Drill 25 mm Three-Phase 400V – FTX-25-TCT2
Description
The FTX-25-TCT2 is a professional column drill with belt transmission, designed to ensure reliable performance and operational safety in industrial environments. Equipped with a 0.75 kW three-phase motor, a sturdy structure, and advanced features such as a swivel table and safety switches, it is ideal for precise machining tasks with a maximum drilling capacity of 25 mm.
Key Features
Belt transmission
Lightweight and durable aluminum motor
Cast iron handles for extra strength
Magnetic safety switch
360° rotating worktable
Worktable tiltable up to 45°
Safety switch on cover opening
Keyless chuck
Manufactured in compliance with CE standards
Technical Data – FTX-25-TCT2
| Specifications | FTX-25-TCT2 |
|---|---|
| Input voltage | 400 V – 50 Hz |
| Power | 0.75 kW |
| Number of speeds | 12 |
| Speed range (RPM) | 280 – 2,380 |
| Max. drilling capacity | Ø 25 mm |
| Morse taper | MT3 |
| Max. spindle travel | 85 mm |
| Column diameter | 80 mm |
| Working table dimensions | 290 x 290 mm |
| Total height | 1,600 mm |
| Weight | 59 kg |
| Machine dimensions | 1,150 x 500 x 300 mm |
| EAN code | 8423640133853 |
