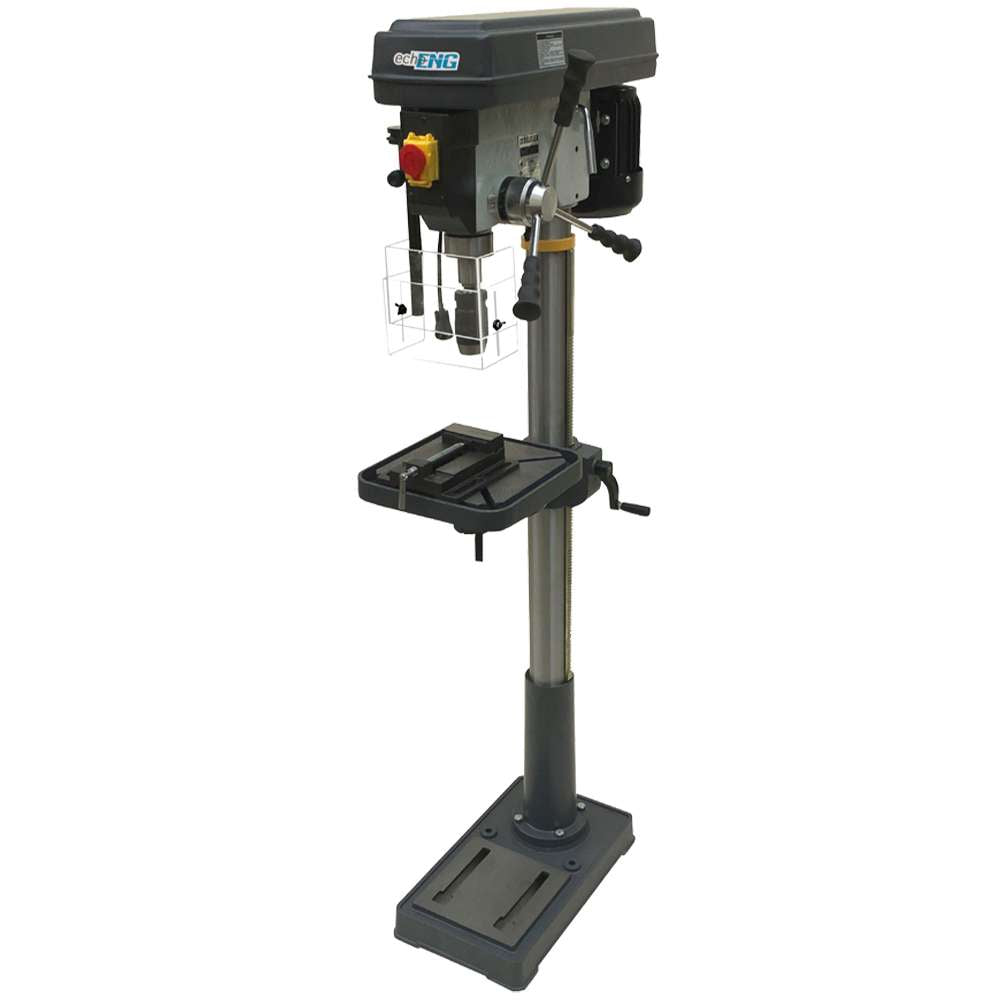

Bench Column Drill FTX-25-TC PRO 230V 1.1 kW 25mm ENG PRO Fortex
Description
The FTX-25-TC PRO is a robust and precise column drill press with belt-driven speed adjustment, ideal for professional workshops and mechanical processing. Featuring a cast iron motor and pulley system, this machine guarantees stability, long-lasting durability, and performance. The worktable rotates 360° and tilts ±45° for maximum flexibility.
Key Features
Column drill with belt-driven speed change
Spindle mounted on ball bearings
Durable cast iron motor and pulleys
Table movement via rack and pinion
360° rotating worktable
±45° tiltable table
Safety switch on cover opening
Built to comply with CE standards
Dual-screen safety micro-switch protection
Integrated LED work light
Vise included
Included Accessories
Keyless drill chuck
100 mm vise
Technical Specifications
| Specification | FTX-25-TC PRO |
|---|---|
| Input voltage | 230 V – 50 Hz |
| Power | 1.1 kW |
| Number of speeds | 12 |
| Speed (RPM) | 280 – 2,300 |
| Max. drilling capacity | Ø 25 mm |
| Spindle-to-column distance | 215 mm |
| Morse taper | MT3 |
| Spindle travel | 85 mm |
| Column diameter | 80 mm |
| Table size | 290 x 290 mm |
| Total height | 1,690 mm |
| Weight | 80 kg |
| EAN Code | 8423640200609 |
