Description

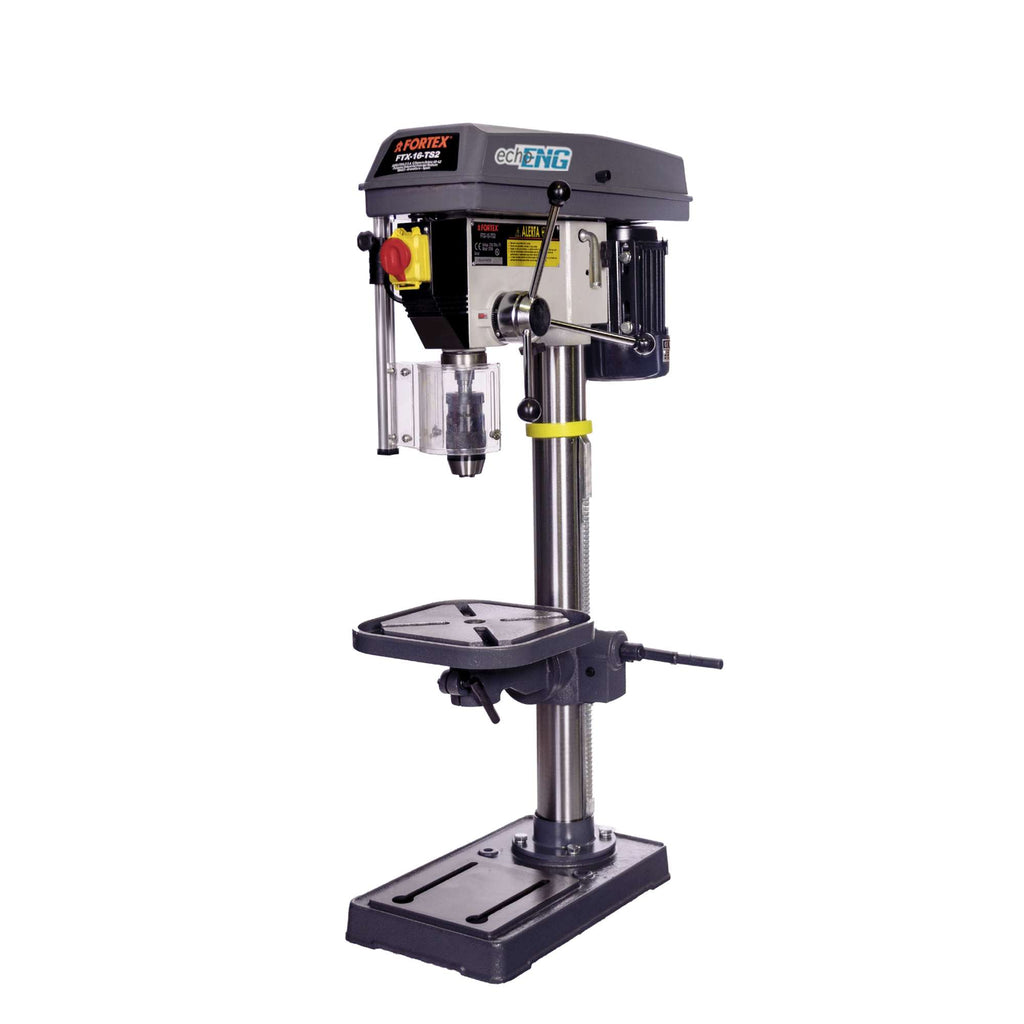

Bench Drill Press with Belt Drive and ±45° Tilting Table – FTX-16-TS2
The FTX-16-TS2 bench drill press is a sturdy and versatile machine, ideal for precision machining on metal, wood, and plastic. Equipped with a belt drive system, it ensures smooth and quiet operation, along with high safety standards thanks to multiple protective features.
Main Features
Belt drive transmission for quiet and reliable operation
Magnetic safety switch
360° rotating table for maximum versatility
Tilting table ±45°, ideal for angled drilling
Safety switch on belt cover opening
Spindle guard for operator protection and visibility
Keyless chuck for quick and easy tool changes
Manufactured in compliance with CE regulations
Automatic cut-off protection system
Technical Specifications – FTX-16-TS2
| Specification | Value |
|---|---|
| Voltage | 230 V – 50 Hz |
| Power | 0.375 kW |
| Number of speeds | 16 |
| Speed range | 180 – 2,770 rpm |
| Max. drilling capacity | Ø 16 mm |
| Morse taper | MT2 |
| Spindle travel | 80 mm |
| Column diameter | 72 mm |
| Table dimensions | 250 × 250 mm |
| Total height | 980 mm |
| Weight | 35 kg |
| Overall dimensions | 770 × 450 × 270 mm |
EAN Code: 8423640133655
