Description

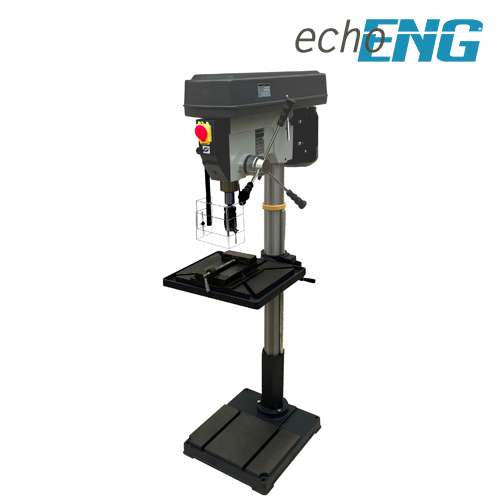

Belt-Driven Column Drill 32mm FTX-35-TC PRO R+L 400V ENG PRO
Professional column drill with belt transmission, designed for intensive operations up to 32 mm drilling capacity. Equipped with automatic feed and tiltable table. Solid construction and CE compliant, ideal for mechanical workshops and industrial environments.
Main Features
- Belt transmission.
- Spindle mounted on ball bearings.
- Durable cast iron motors and pulleys.
- Table movement via rack and pinion system.
- 360° rotating table around the column.
- Tiltable table ± 45°.
- Reverse rotation on R+L models.
- Safety switch when the cover is opened.
- Ergonomic handle.
- LED lamp.
- Machines manufactured in compliance with CE standards.
Standard Accessories
- Keyless drill chuck
- 150 mm vise
Technical Specifications
| Description | Value |
|---|---|
| Power Supply | 400 - 50 V |
| Power | 2.2 kW |
| No. of Speeds | 12 |
| Speed Range | 210 - 2,160 RPM |
| Max Drilling Capacity | 32 mm |
| Spindle to Column Distance | 267 mm |
| Spindle Travel | 122 mm |
| Morse Taper | MT4 |
| Column Diameter | 92 mm |
| Table Dimensions | 473 x 410 mm |
| Total Height | 1,780 mm |
| Weight | 148 kg |
| Product Code | 8423640200302 |
