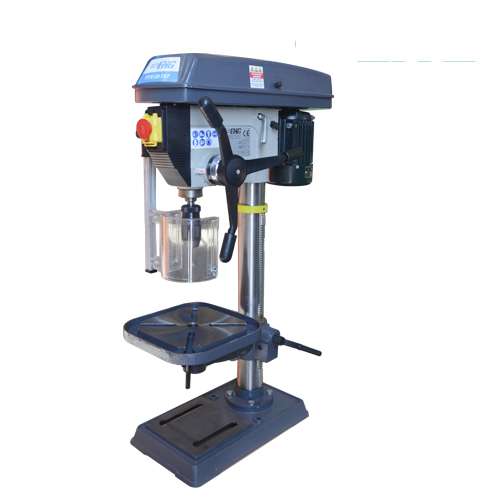

Industrial Bench Drill 20mm Drilling 400V - FTX-20-TST2 ENG PRO
The FTX-20-TST2 ENG PRO bench drill is a robust and professional machine designed for precise drilling up to 20 mm. Ideal for industrial applications, it offers safety, reliability, and versatility thanks to its technical features and integrated protection systems.
Main Features:
Belt transmission
Aluminum motor
Cast iron handles
Magnetic safety switch
360° rotating table
Table tiltable up to 45°
Safety switch when the cover is opened
Self-tightening chuck
Safety micro switch protection
Machine manufactured according to CE standards
Technical Specifications – FTX-20-TST2
| Feature | Value |
|---|---|
| Power supply | 400 V - 50 Hz |
| Power | 0.55 kW |
| Number of speeds | 16 |
| Speed (R.P.M.) | 180 - 2,770 |
| Max drilling capacity | 20 mm |
| Morse taper | CM2 |
| Spindle travel | 85 mm |
| Column diameter | 72 mm |
| Table dimensions | 290 x 290 mm |
| Total height | 1,000 mm |
| Weight | 49 kg |
| Machine dimensions | 820 x 500 x 290 mm |
| EAN Code | 8423640133754 |
