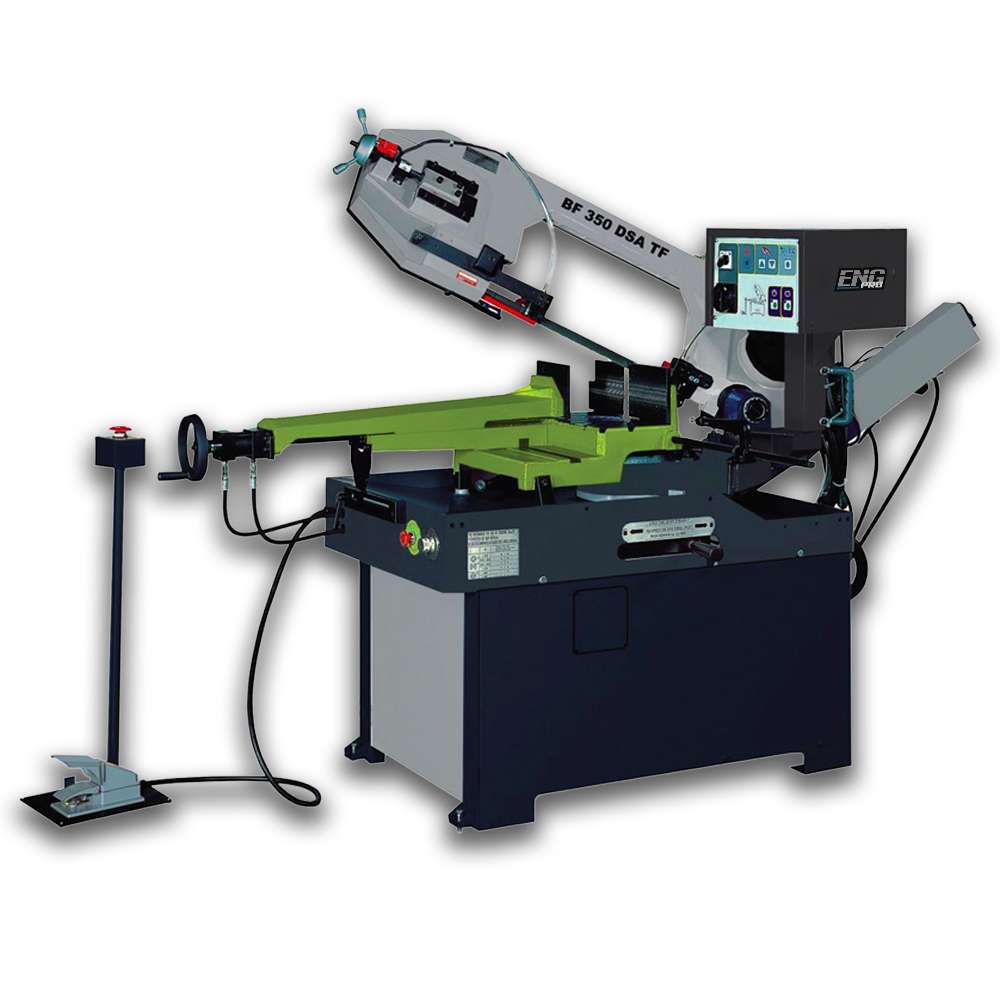

Semi-Automatic Bandsaw ENG PRO BF 350 DSA TF
Description
The ENG PRO BF 350 DSA TF semi-automatic bandsaw is a professional machine designed for precise and versatile metal cutting. It offers high cutting capacity and an efficient hydraulic system, with a robust structure and user-friendly interface — ideal for workshops, metalworking facilities, and industrial environments.
Key Features
Hydraulic quick-action vice
Swivel head from 0° to 60° right and 45° left
Hydraulic cylinder-controlled descent
Dual motor speed
Integrated digital control panel
Safety microswitch on blade cover opening
Blade tension with handwheel and pressure gauge
Arm mounted on bearings with automatic return system
Fully compliant with CE standards
Technical Specifications
| Model | BF 350 DSA TF |
|---|---|
| Voltage | 400 V |
| Power | 1.5 kW |
| Blade speed | 34–68 RPM |
| Cutting capacity at 90° (round/square/rectangle) | Ø 270 / 260x260 / 320x180 mm |
| Cutting capacity at 45° right | Ø 210 / 200x200 / 220x180 mm |
| Cutting capacity at 60° right | Ø 135 / 130x130 / 140x100 mm |
| Cutting capacity at 45° left | Ø 210 / 200x200 / 220x180 mm |
| Vice opening | 510 mm |
| Blade size | 3660 x 27 x 0.9 mm |
| Weight | 390 kg |
| Machine dimensions | 1860 x 875 x 1750 mm |
| Product code | 8243600111905 |
Included Accessories
Test blade
Optional Accessories: Saw Blades
| Blade Model | Dimensions | TPI (teeth per inch) | Code |
|---|---|---|---|
| B 6/10 | 3160x27x0.9 Z6/10 | 2 | 42107600 / 8243600060243 |
| B 8/11 | 2 | 42107600 / 8243600060245 | |
| B 5/8 | 2 | 42107600 / 8243600120174 | |
| B 4/6 | 2 | 42107600 / 8243600120175 | |
| B 3/4 | 2 | 42107600 / 8243600120176 | |
| B 2/3 | 2 | 42107600 / 8243600120244 | |
| B 1/1.4 | 2 | 42107600 / 8243600120245 |
