Description

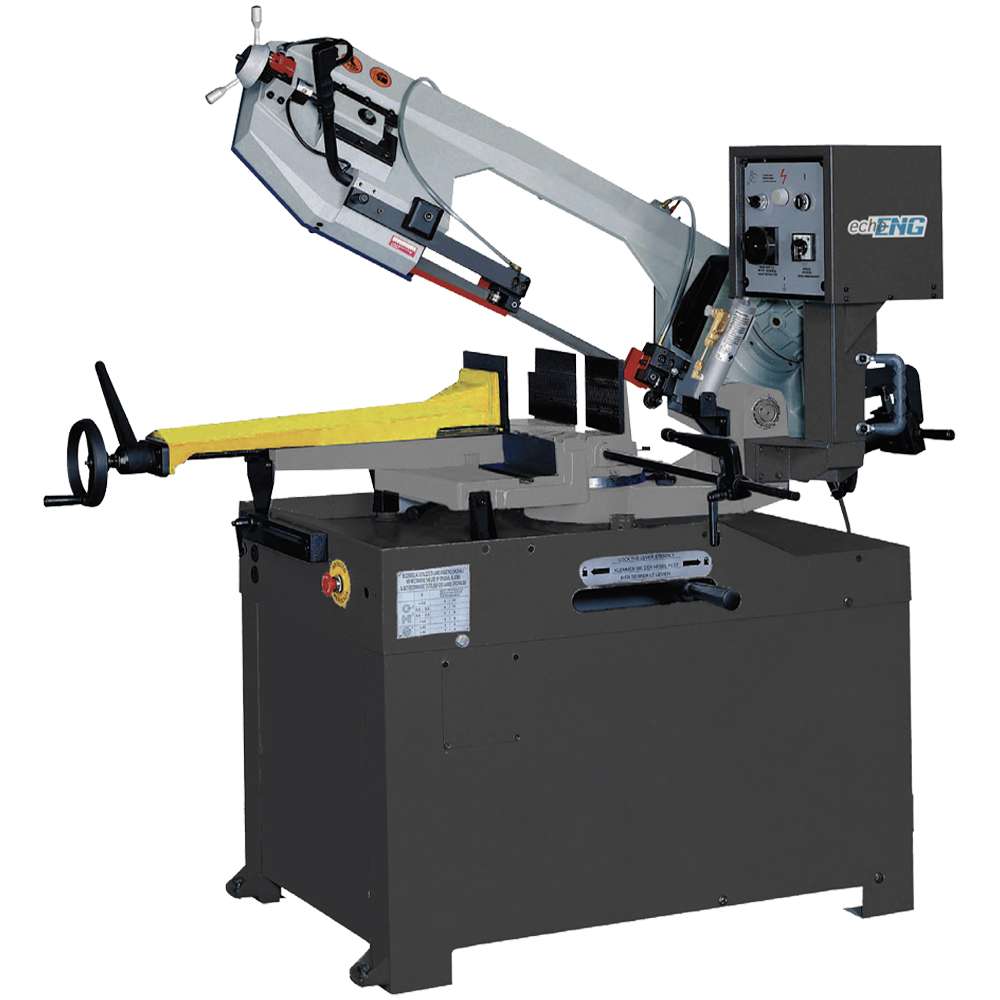

Band Saw with 350 mm Vice Opening – BF-350-DS TF 400V ENG PRO
The ENG BF 350 DS TF is a professional band saw with controlled manual descent. Ideal for workshops and industrial environments, it allows miter cuts up to 60° with a 350 mm vice, ensuring reliability and safety during every operation.
Main Features
- Quick-action vice
- Swiveling head from 0–60° right, ±45° left
- Coolant pump with double circuit
- Descent via hydraulic piston or manually
- Easy angle adjustment for cutting
- Automatic stop at end of cut
- Blade guide supported on double ball bearings
- Metal brush for blade cleaning
- Safety microswitch
- Safety microswitch on cover opening
- Blade tension gauge
- Ground hydraulic cylinder with high-quality stops
- Machine manufactured according to CE regulations
Technical Specifications
| Model | BF 350 DS TF |
| Power Supply | 400V - 50 Hz |
| Power | 1.5 kW |
| Blade Speed | 34–68 R.P.M |
| Cutting Capacity at 90° Ø □ ▭ | 270 / 350x220 / 260x260 mm |
| Cutting Capacity at 45° right Ø □ ▭ | 240 / 240x160 / 220x220 mm |
| Cutting Capacity at 60° right Ø □ ▭ | 160 / -- / 150x150 mm |
| Cutting Capacity at 45° left | 210 / -- / 180x180 mm |
| Vice Opening | 350 mm |
| Blade Dimensions | 3160x0.9x27 mm |
| Weight | 360 / 410 kg |
| Machine Dimensions | 1841x749x1092 mm |
| Product Code | 8423640111707 |
Included Accessories
- Test blade
Optional Accessories: Band Saw Blades
| Blade Model | Dimensions | Teeth per Inch | Code |
| Ø 4 / 6 | 3160x0.9x27 mm | 2 | 421047000 8423640305403 |
| Ø 5 / 8 | 2 | 421049000 8423640305410 | |
| Ø 6 / 10 | 2 | 421051000 8423640120167 | |
| Ø 8 / 12 | 2 | 421053000 8423640120174 | |
| Ø 10 / 14 | 2 | 421055000 8423640120204 | |
| Ø 14 | 2 | 421057000 8423640120211 |
