Description

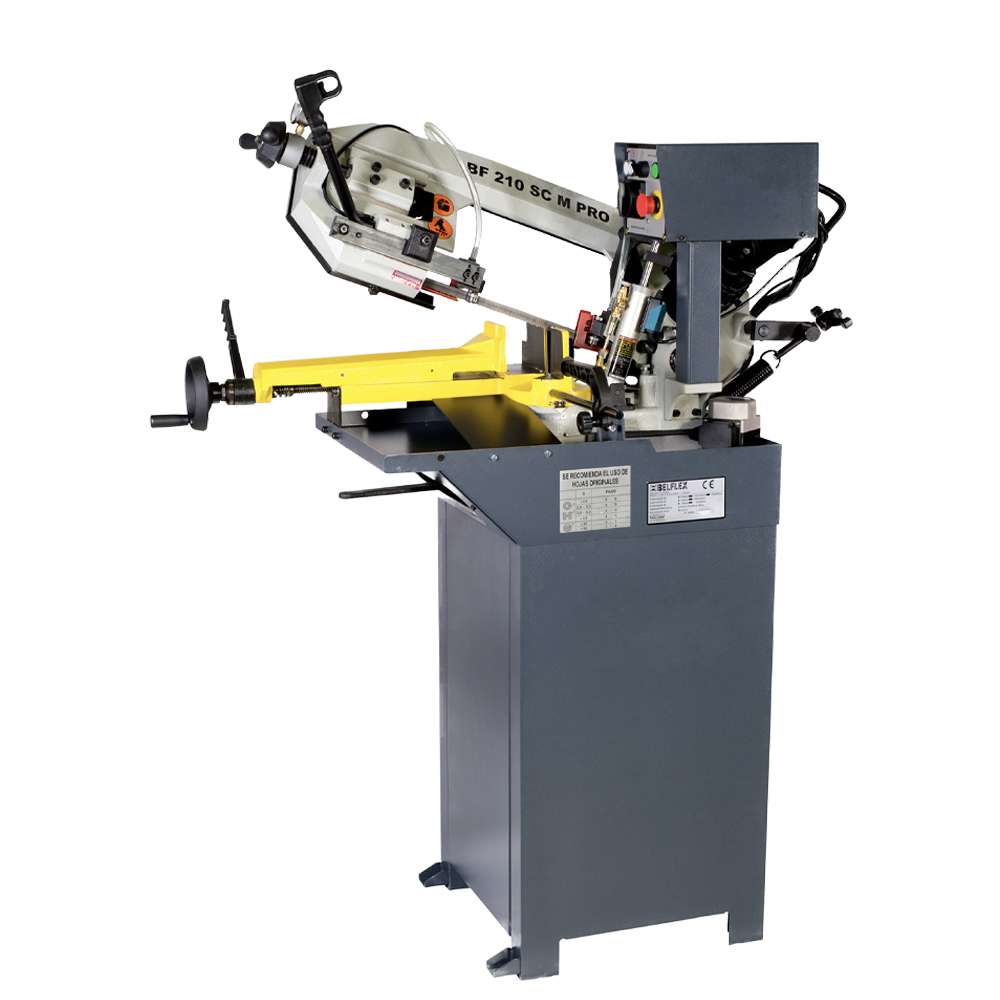

BF-210-SC M PRO 230V ENG PRO Manual-Controlled Band Saw
The ENG BF-210-SC M PRO is a professional manual-controlled descent band saw. Ideal for workshops and industrial settings, it allows miter cuts up to 60° with a 260 mm vise, ensuring reliability and safety in every operation.
Main Features
- Quick-action vise
- Swiveling head from 0° to 60°
- Coolant pump with dual circuit

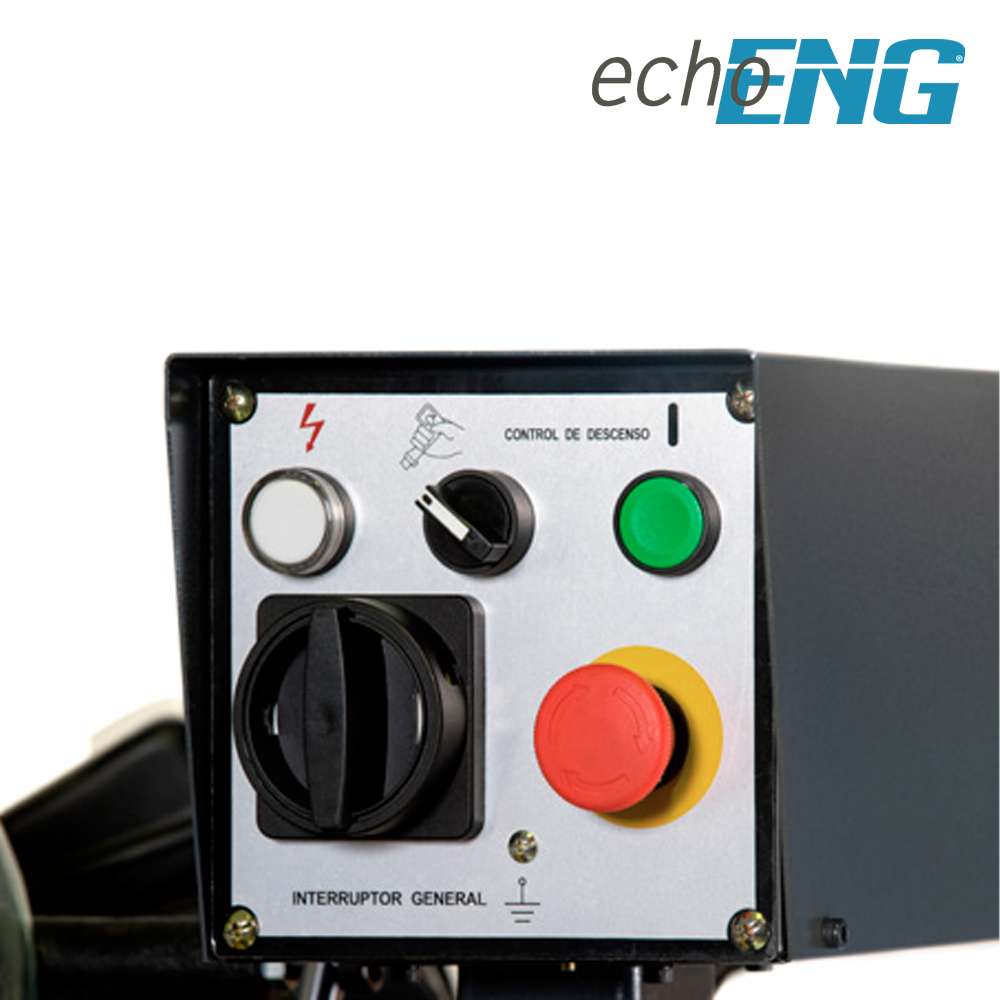

- Selectable head descent: manual or hydraulic
- Easy adjustment of cutting angle
- Automatic stop at end of cut
- Blade guide supported by double ball bearings
- Blade tension safety microswitch
- Safety microswitch on blade cover opening

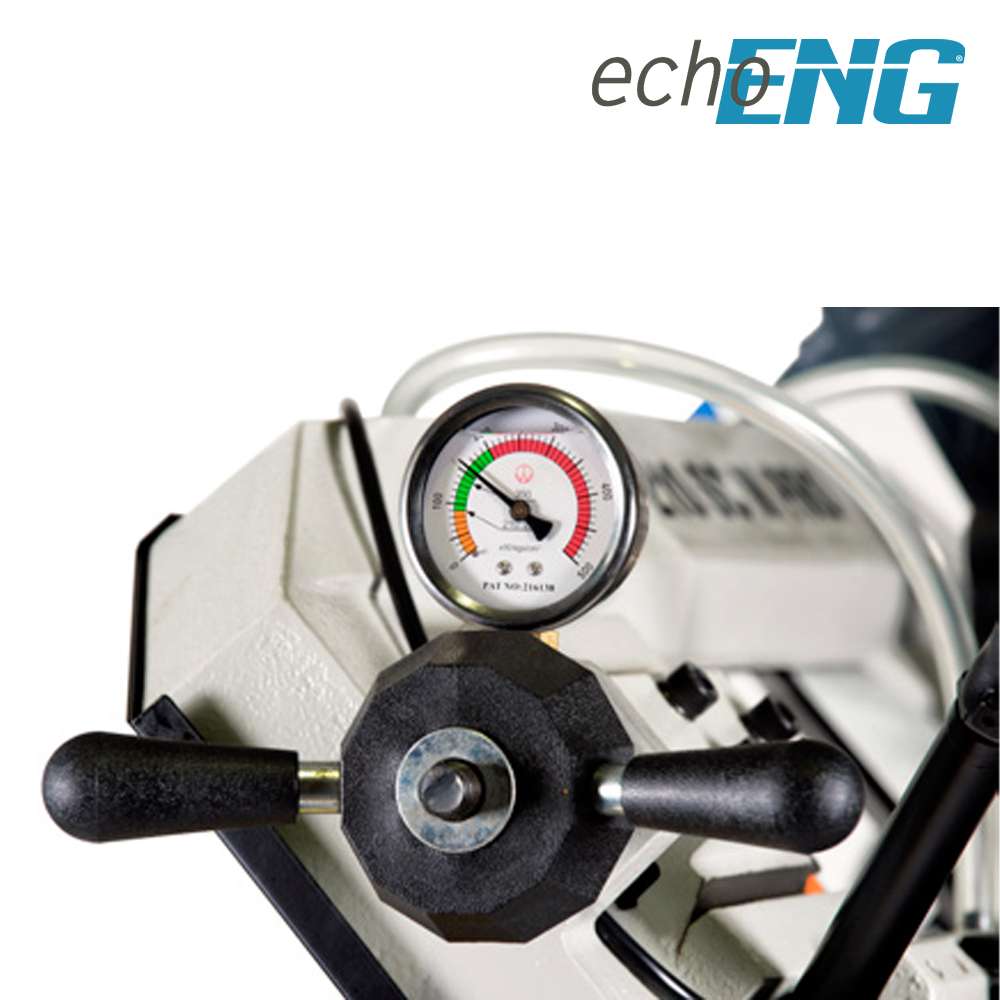

- Blade tension gauge
- Machine built in compliance with CE regulations
Technical Specifications
| Model | BF-210-SC M PRO |
| Power Supply | 230V - 50Hz |
| Power | 0.75 kW |
| Blade Speed | 90 RPM |
| Cutting Capacity at 90° Ø □ ▭ | Ø 170 / 210×95 / 170×170 mm |
| Cutting Capacity at 45° right Ø □ ▭ | Ø 120 / - / 110×110 mm |
| Cutting Capacity at 60° right Ø □ ▭ | Ø 70 / - / 60×60 mm |
| Vise Opening | 210 mm |
| Blade Dimensions | 2110×0.9×20 mm |
| Weight | 156 / 170 kg |
| Machine Dimensions | 1156×572×826 mm |
| Product Code | 8423640400542 |
Included Accessories
- Test blade
Optional Accessories: Band Saw Blades
| Blade Model | Dimensions | TPI (Teeth Per Inch) | Code |
| Ø 4 / 6 | 2110×0.9×20 mm | 2 | 421236001 / 8423640305601 |
| Ø 5 / 8 | – | 2 | 421236002 / 8423640305618 |
| Ø 6 / 10 | – | 2 | 421236003 / 8423640305625 |
| Ø 8 / 12 | – | 2 | 421236004 / 8423640305632 |
| Ø 10 / 14 | – | 2 | 421236005 / 8423640305649 |
| Ø 14 | – | 2 | 421236006 / 8423640305656 |
