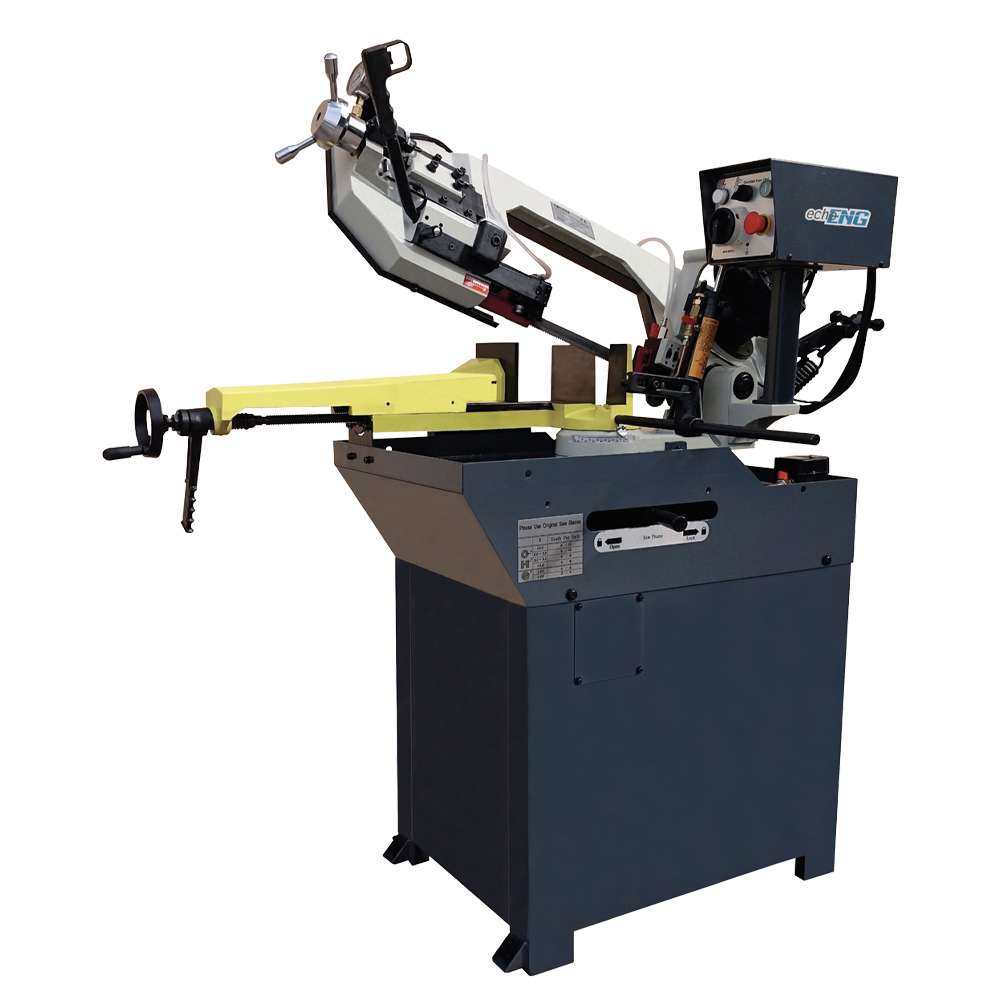

BF-200-SC M 230V ENG PRO Manual-Controlled Band Saw
The ENG BF-200-SC M is a professional manual-controlled descent band saw. Ideal for workshops and industrial environments, it allows miter cuts up to 60° with a 260 mm vise, ensuring reliability and safety in every operation.
Main Features
- Quick-action vise
- Swiveling head from 0° to 60°
- Coolant pump with dual circuit

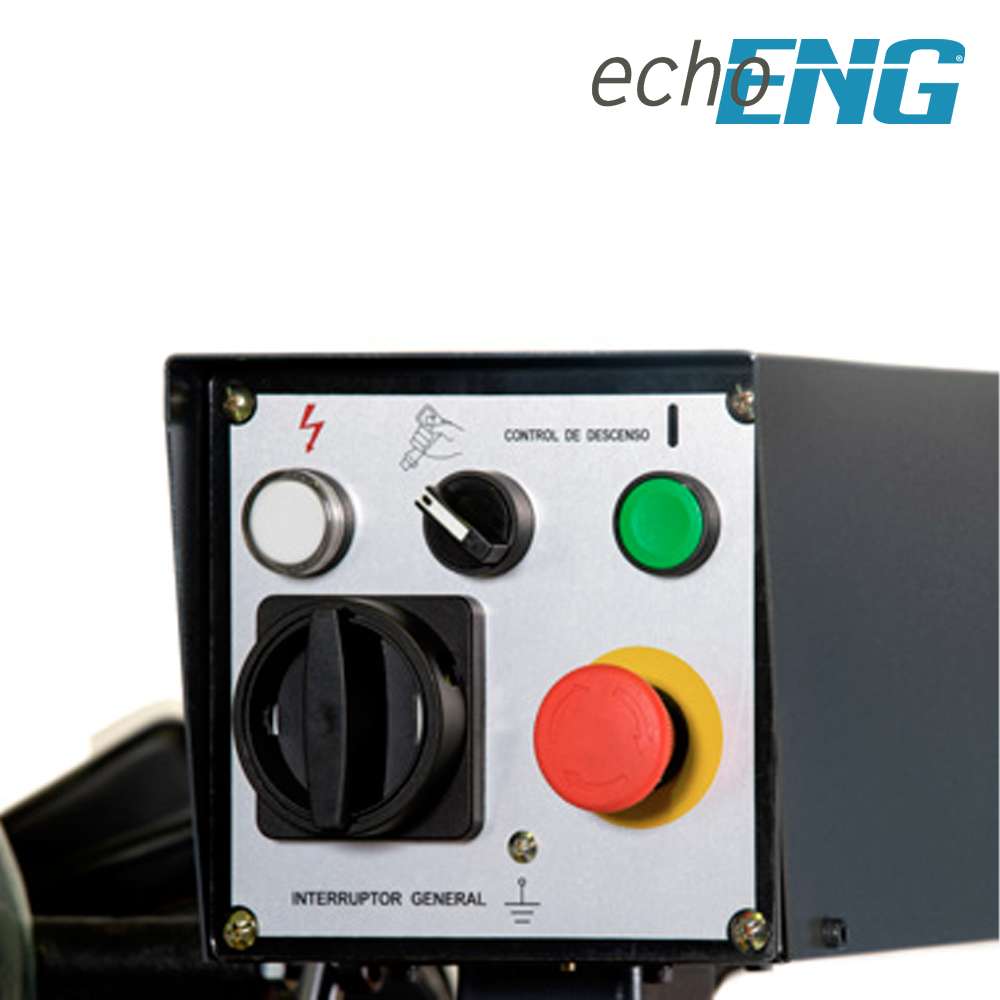

- Selectable head descent: manual or hydraulic
- Easy cutting angle adjustment
- Automatic stop at end of cut
- Blade guide supported by double ball bearings
- Blade tension safety microswitch
- Safety microswitch on blade cover

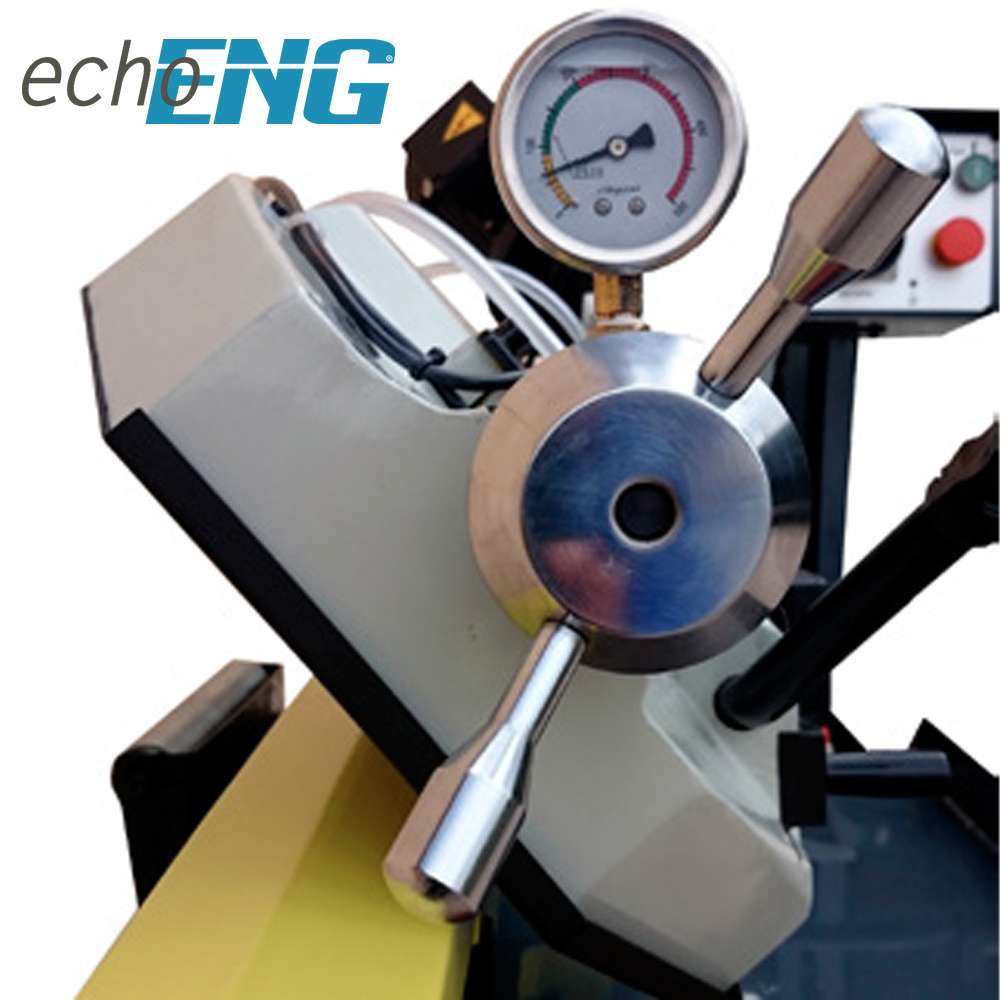

- Blade tension gauge
- CE-compliant construction
Technical Specifications
| Model |
BF-200-SC M |
| Power Supply |
230V - 50 Hz |
| Power |
1.1 kW |
| Blade Speed |
80 RPM |
| Cutting Capacity at 90° Ø □ ▭ |
Ø170 / 200×170 / 170×170 mm |
| Cutting Capacity at 45° right Ø □ ▭ |
Ø120 / - / 110×110 mm |
| Cutting Capacity at 60° right Ø □ ▭ |
Ø70 / - / 60×60 mm |
| Vise Opening |
200 mm |
| Blade Dimensions |
2085×0.9×20 mm |
| Weight |
170 / 202 kg |
| Machine Dimensions |
1250×720×1000 mm |
| Product Code |
8423640500952 |
Included Accessories
Optional Accessories: Saw Blades
| Blade Model | Dimensions | TPI | Code |
| Ø 4 / 6 |
2085×0.9×20 mm |
2 |
421182000 / 8423640966130 |
| Ø 5 / 8 |
- |
2 |
421184000 / 8423640966147 |
| Ø 6 / 10 |
- |
2 |
421186000 / 8423640966154 |
| Ø 8 / 12 |
- |
2 |
421188000 / 8423640966161 |
| Ø 10 / 14 |
- |
2 |
421190000 / 8423640966178 |
| Ø 14 |
- |
2 |
421192000 / 8423640966185 |
