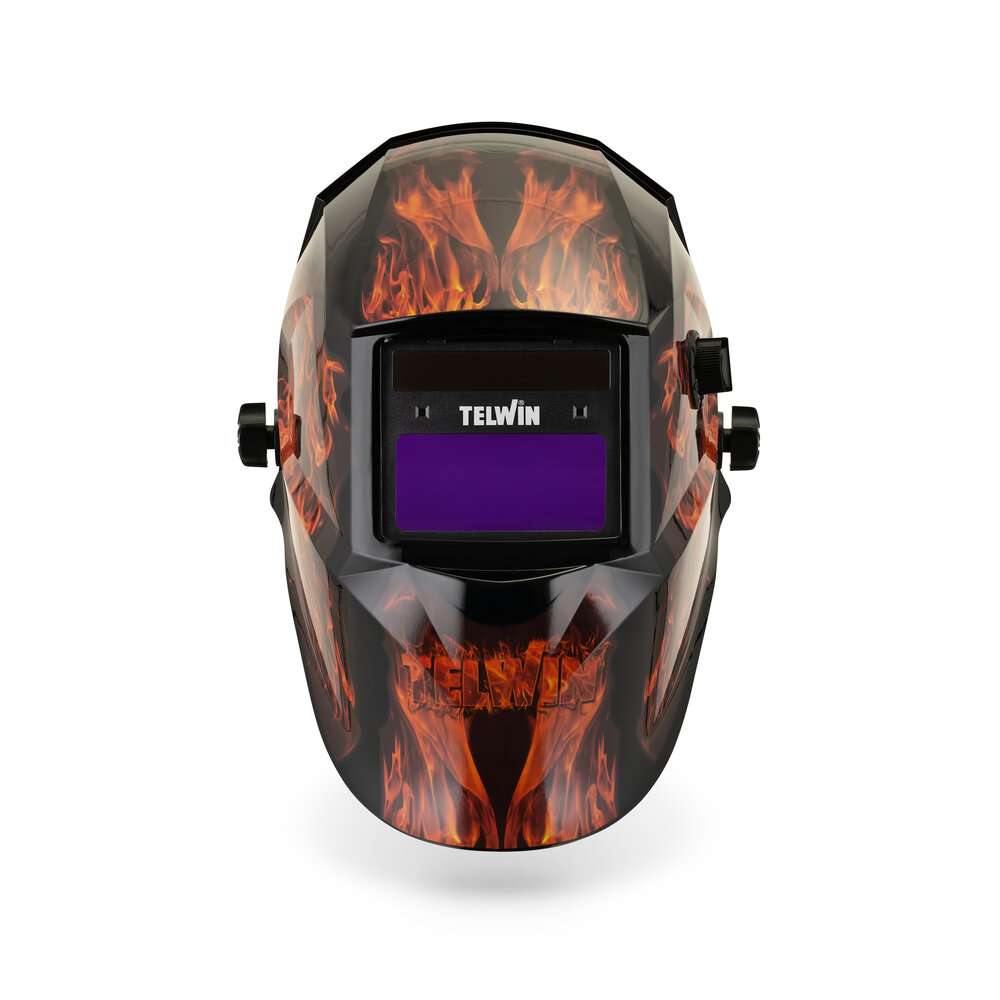

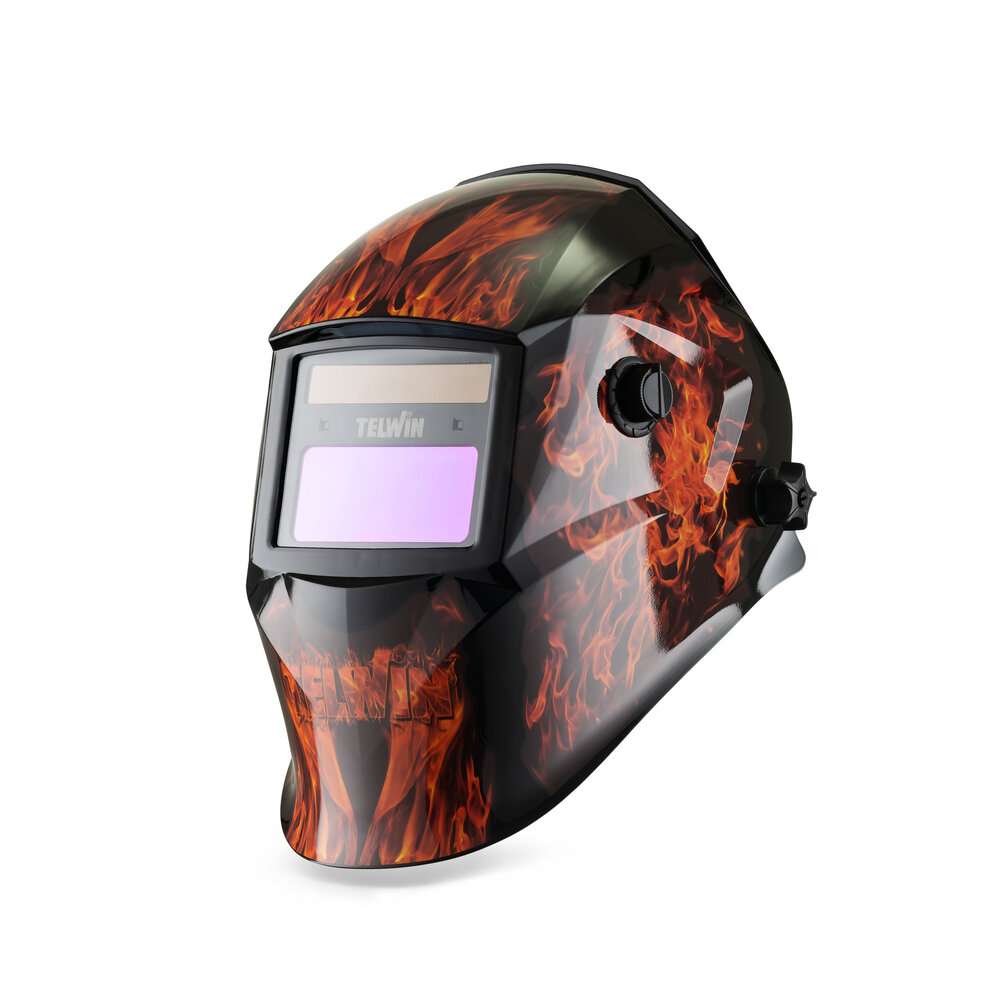

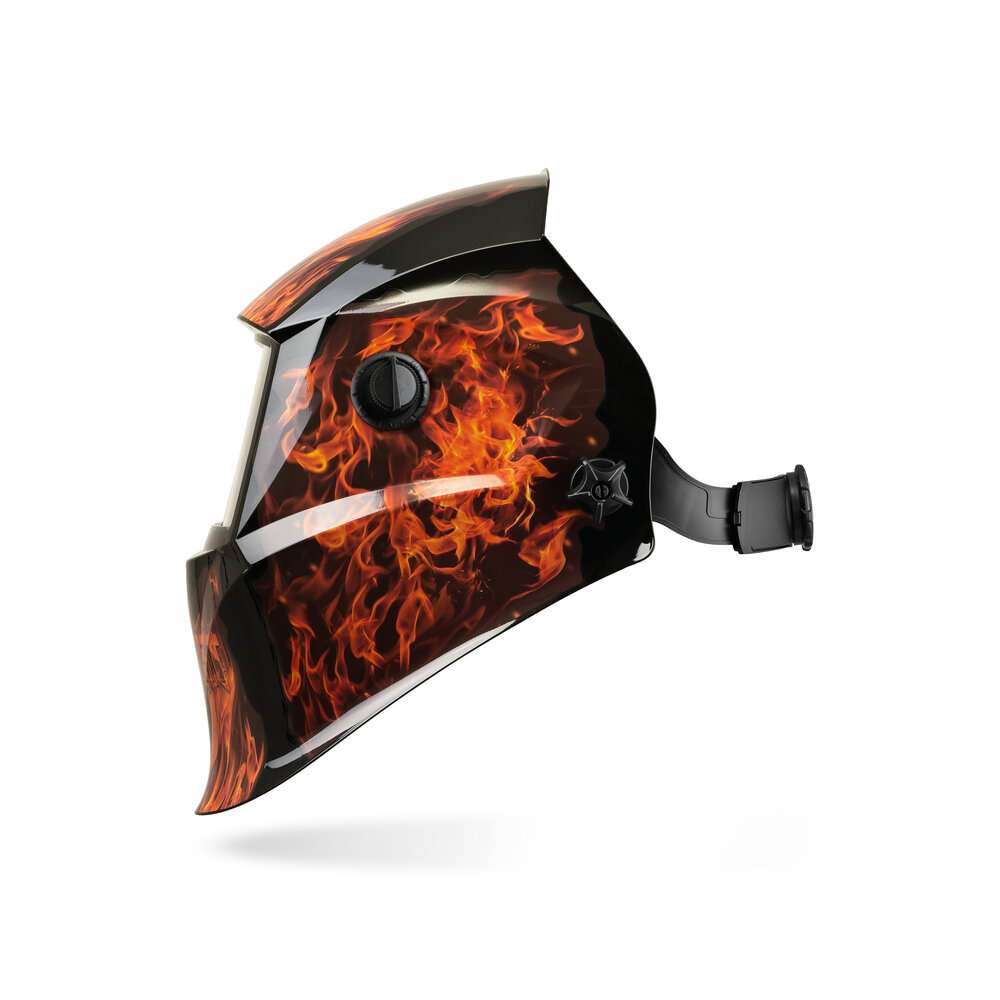

STREAM FLAME MMA/MIG-MAG/TIG HELMET
code 804235

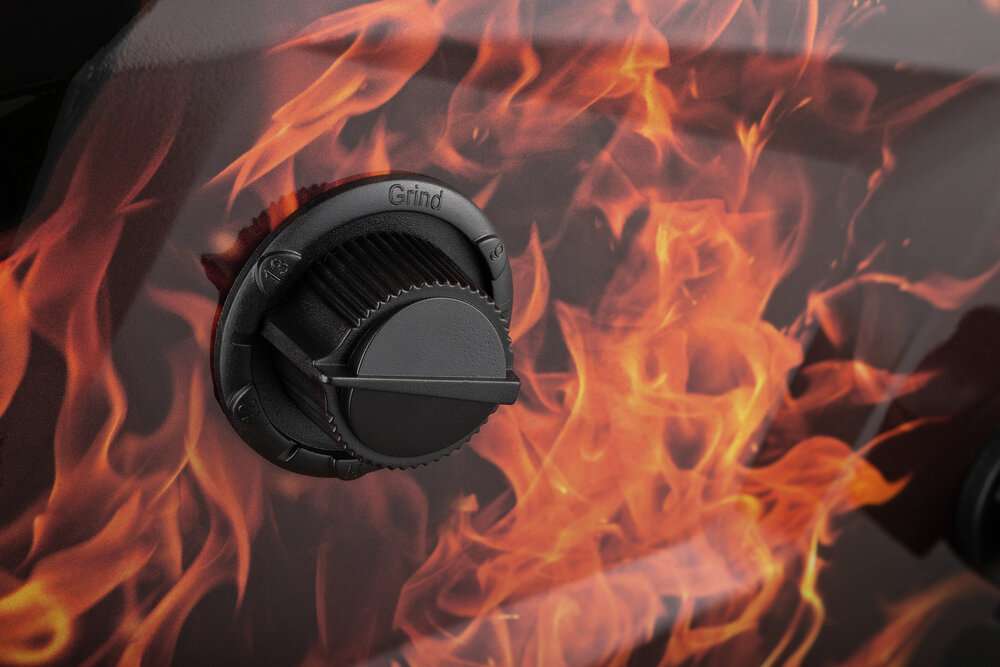

Automatic helmet mask ideal for MMA, MIG-MAG and TIG welding with external darkening adjustment (DIN 4/9 ÷ 13).

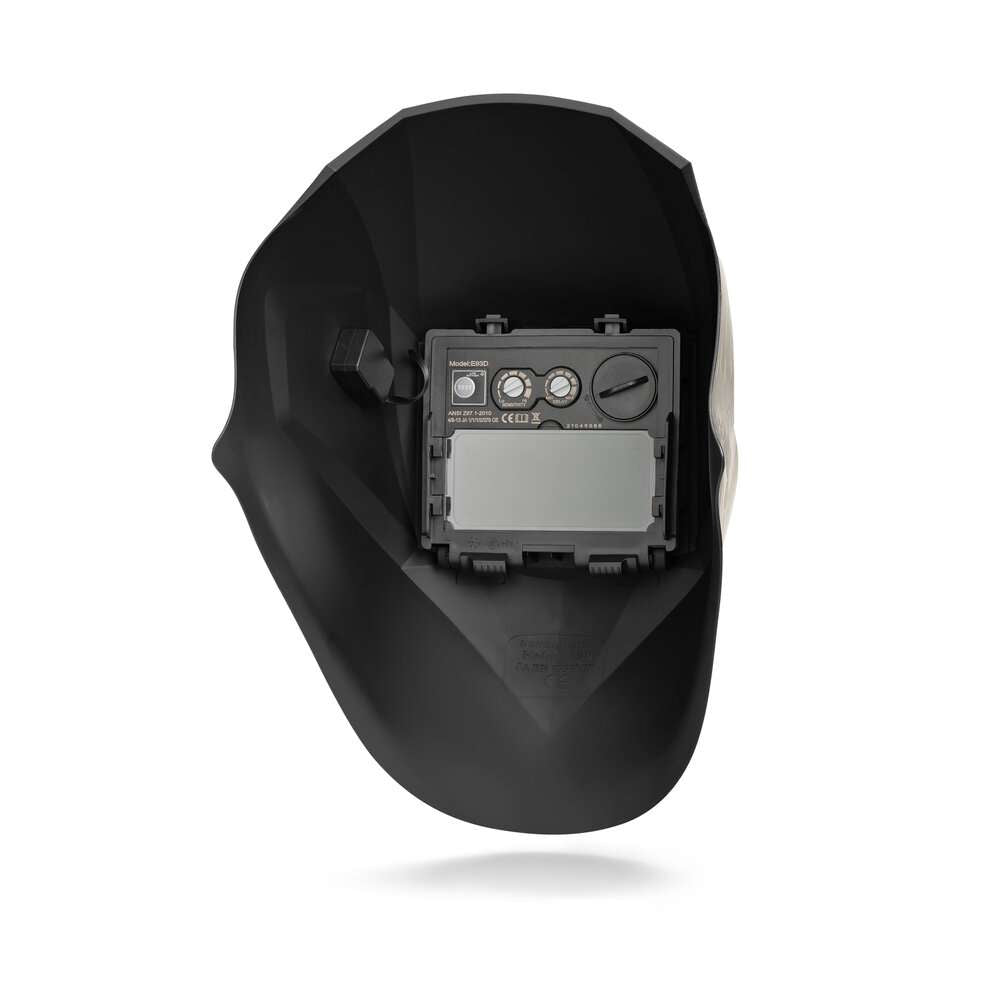

The LCD liquid crystal filter automatically darkens on striking the welding arc and quickly returns to its transparent status when the arc is switched off; eliminating the need to lift and lower the helmet on each work break and thereby allowing the operator to work with hands free.
Features:
- adjustable automatic darkening filter;
- transparent filter protection;
- TIG >5 A;
- grinding mode;
- solar cell operation;
- light and comfortable.
OPTIONAL:
external glass protection 95x115,5mm 2 pcs cod.804312
internal glass protection 47x100mm 2 pcs cod.804313
Sweatband 2 pcs cod.804099.
Technical data
DELAY FROM DARK TO LIGHT STATE 0,2-0,9 s
TIG HELMET >5A
OPTIC CLASS 1/1/1/2
MIG-MAG HELMET *
OPERATING TEMPERATURE (MIN-MAX) -5 -55 °C
MMA HELMET *
SENSORS 2 NR
LUMINOUS STATE 4 DIN
VIEWING AREA 93x43 mm
VARIABLE STATUS 9-13 DIN
WEIGHT 0,410 kg
SWITCHING TIME LIGHT-DARK 0,3 ms
EAN CODE 8056151816900
