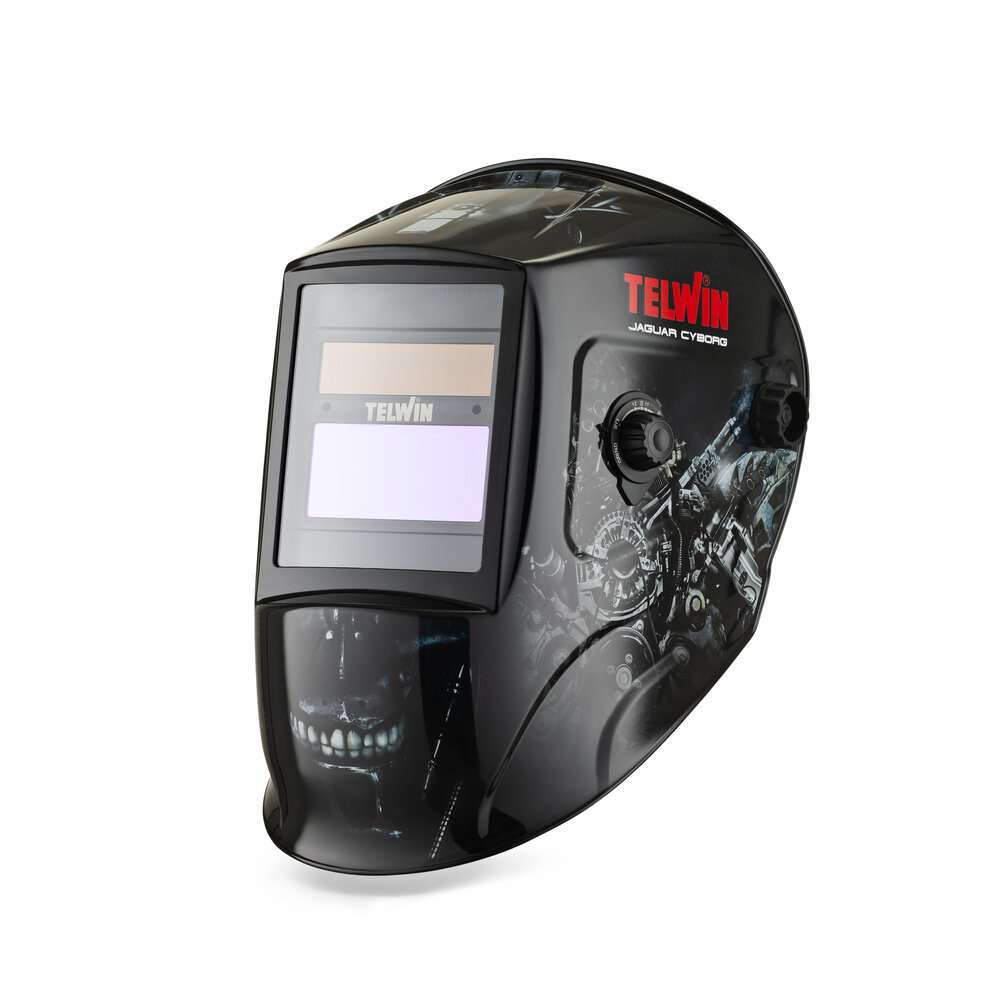

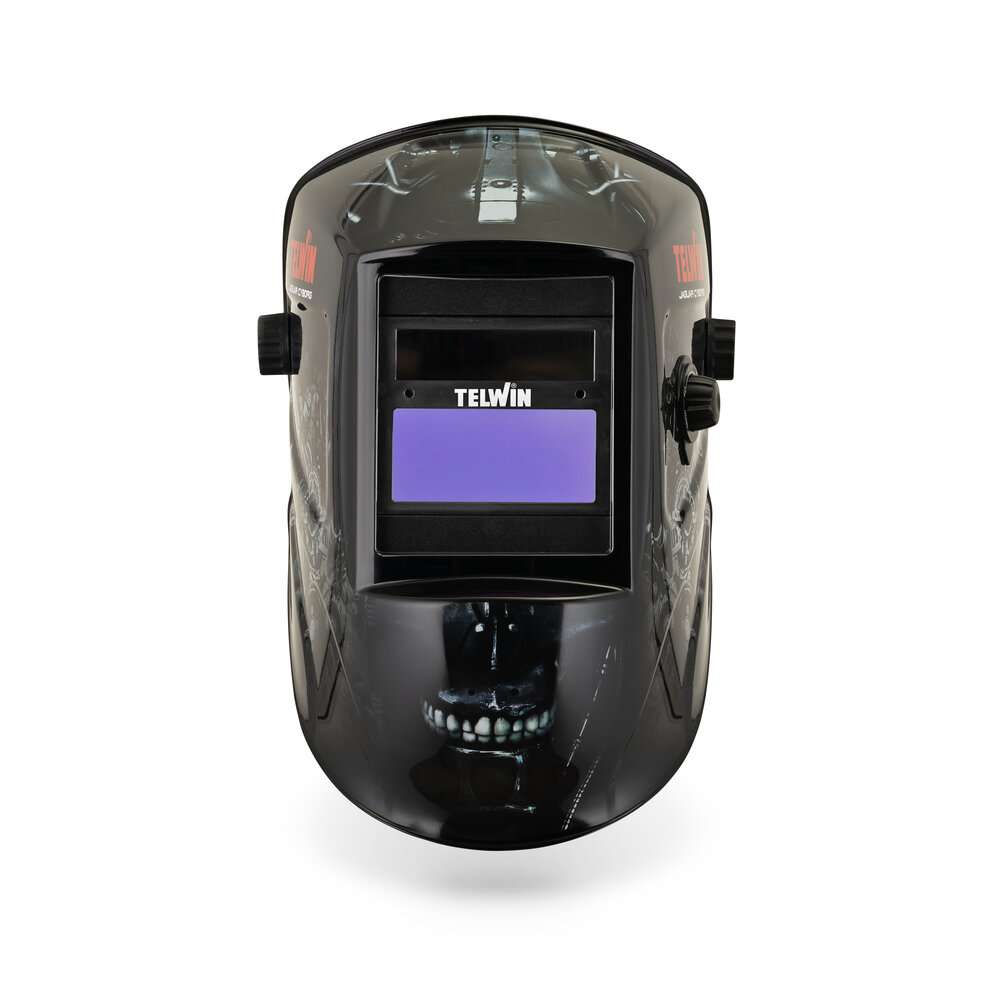

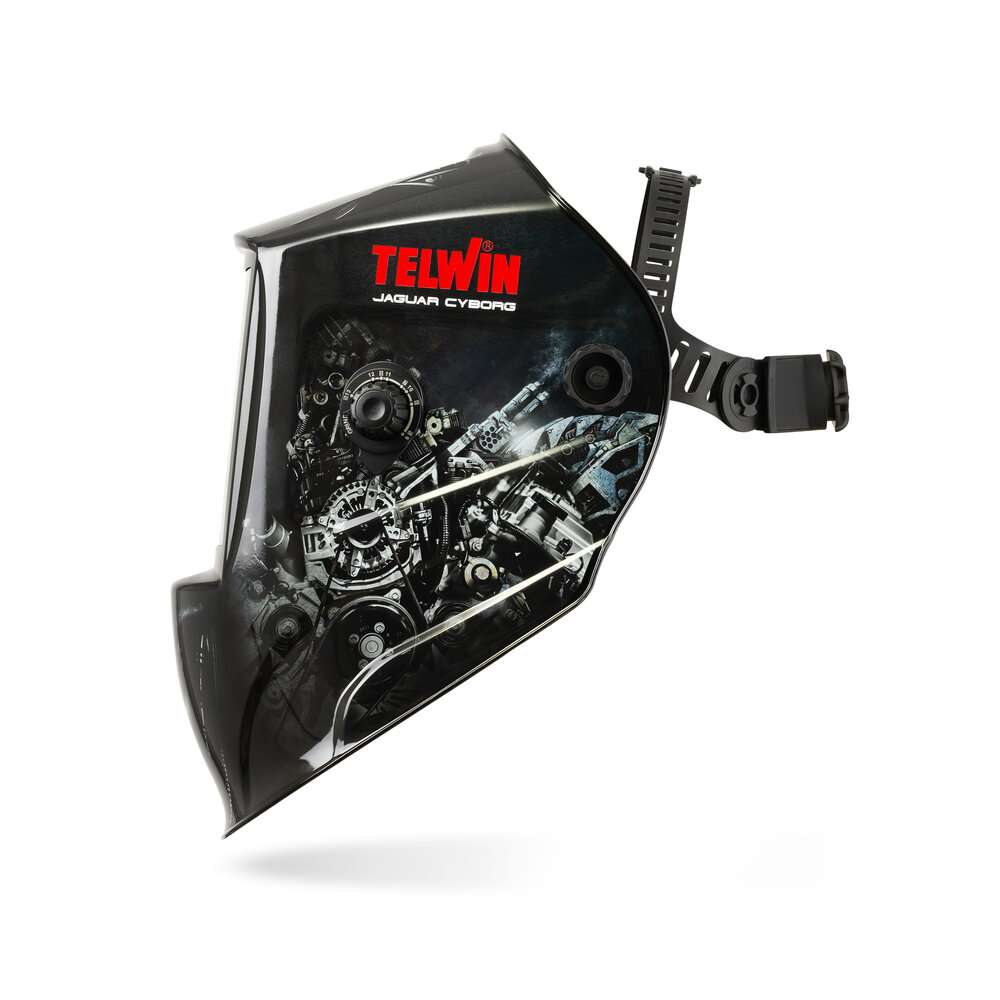

JAGUAR CYBORG MMA/MIG-MAG/TIG HELMET

Automatic helmet mask ideal for TIG, MIG-MAG and MMA welding with external darkening adjustment (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc is running and quickly returns to its transparent status when the arc is switched off; this means the operator does not need to lower and raise his mask during operations and allows him to work with both hands free.

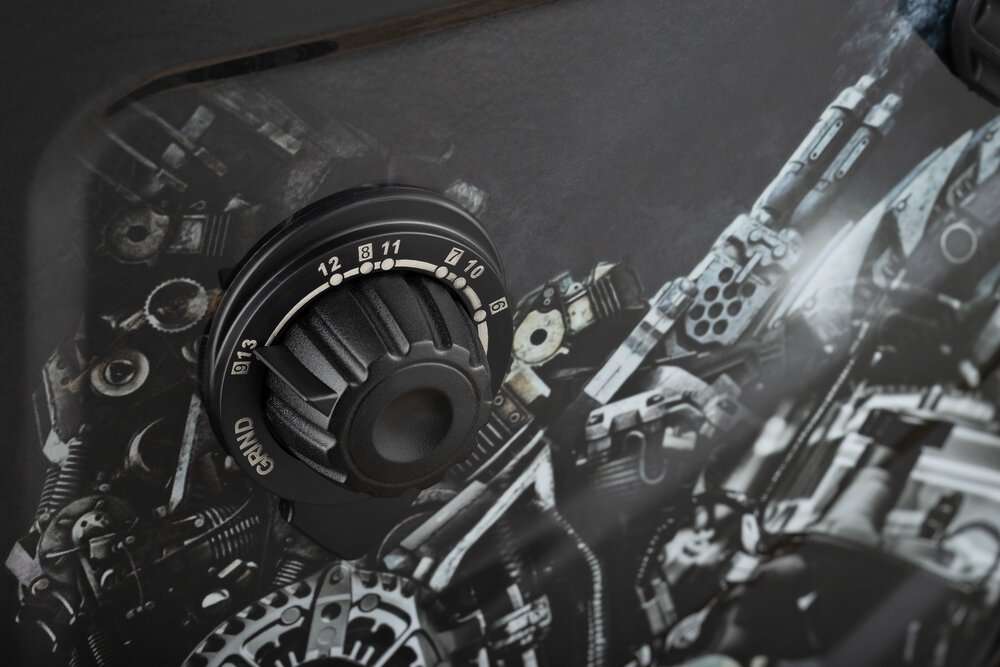

It is not only fitted with a filter sensitivity adjuster depending on the welding process being carried out, but also has an external adjuster which can delay the time between darkening and lightening phases when the arc welding has been completed, according to the level of brightness of the piece.
Features:
- adjustable automatic darkening filter;
- optical class 1/1/1/2;
- TIG da >5 A;
- Grinding mode;
- dark-light delay and sensitivity adjuster;
- solar cell powered;
- light and comfortable to wear.
Optional:
Internal glass protection 50x95mm 2 pcs. cod. 804101
External glass protection 114x134mm 2 pcs. cod. 802939
Sweatband 2 pcs. cod. 804099

Technical data

DELAY FROM DARK TO LIGHT STATE 0,1-1 s

TIG HELMET >5A

OPTIC CLASS 1/1/1/2

MIG-MAG HELMET *

OPERATING TEMPERATURE (MIN-MAX) -5 - 55 °C

MMA HELMET *

SENSORS 2 NR

LUMINOUS STATE 4 DIN

VIEWING AREA 92x42 mm

VARIABLE STATUS 5-9/9-13 DIN

WEIGHT 0,61 kg

SWITCHING TIME LIGHT-DARK 0,4 ms

EAN CODE 800489702148 5
