Description

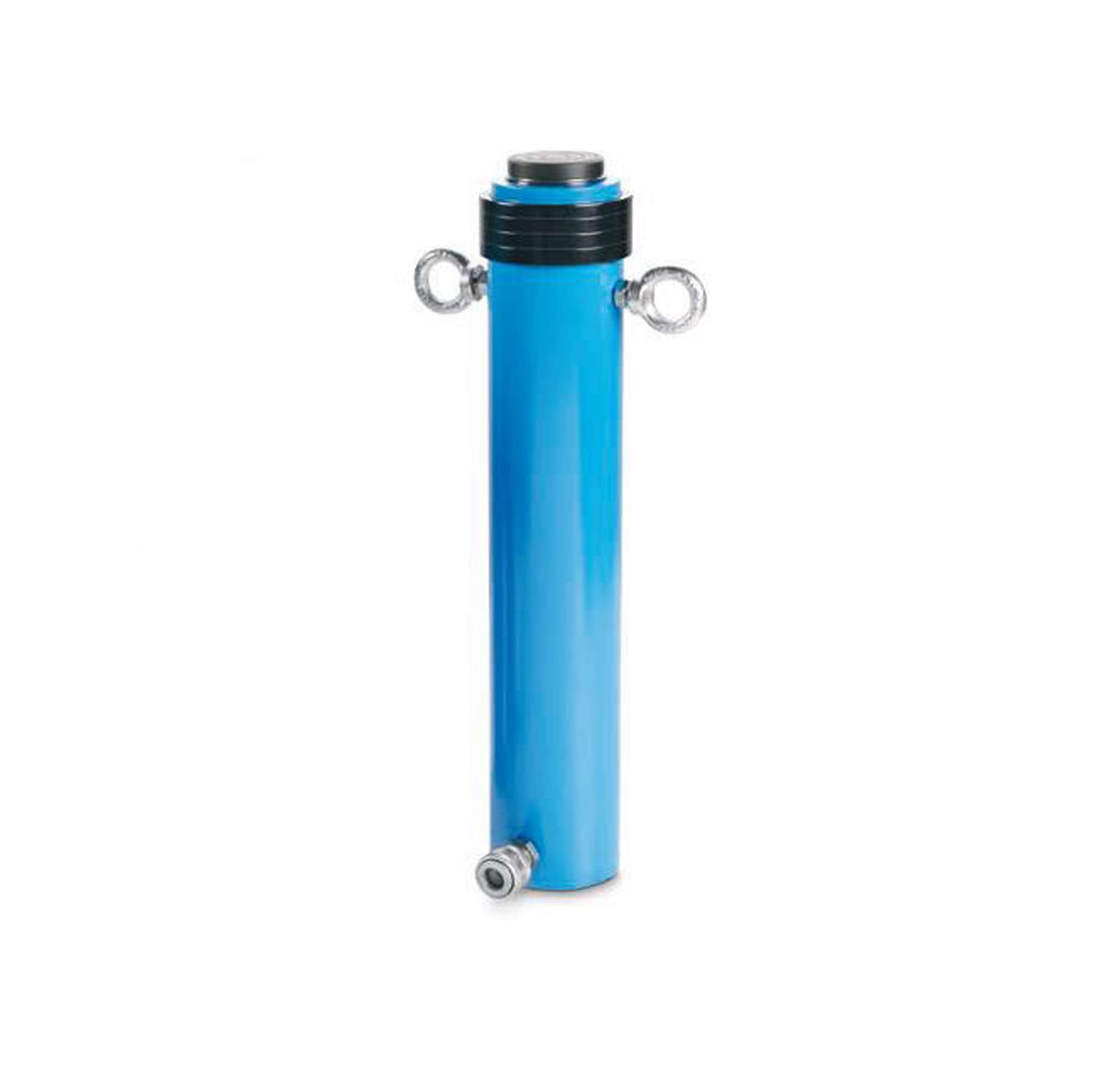

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 50 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 50t
Working pressure 700bar
Oil capacity 1570cm³
Dimensions A 545mm
Dimensions B 345mm
Dimensions C 200mm
Dimensions D 90mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M128X1,5mm
Dimensions H 30mm
Dimensions I M55X3mm
Dimensions L 77mm
Dimensions M M10
Weight 28.9kg
Delivery 10-15 days
