Description

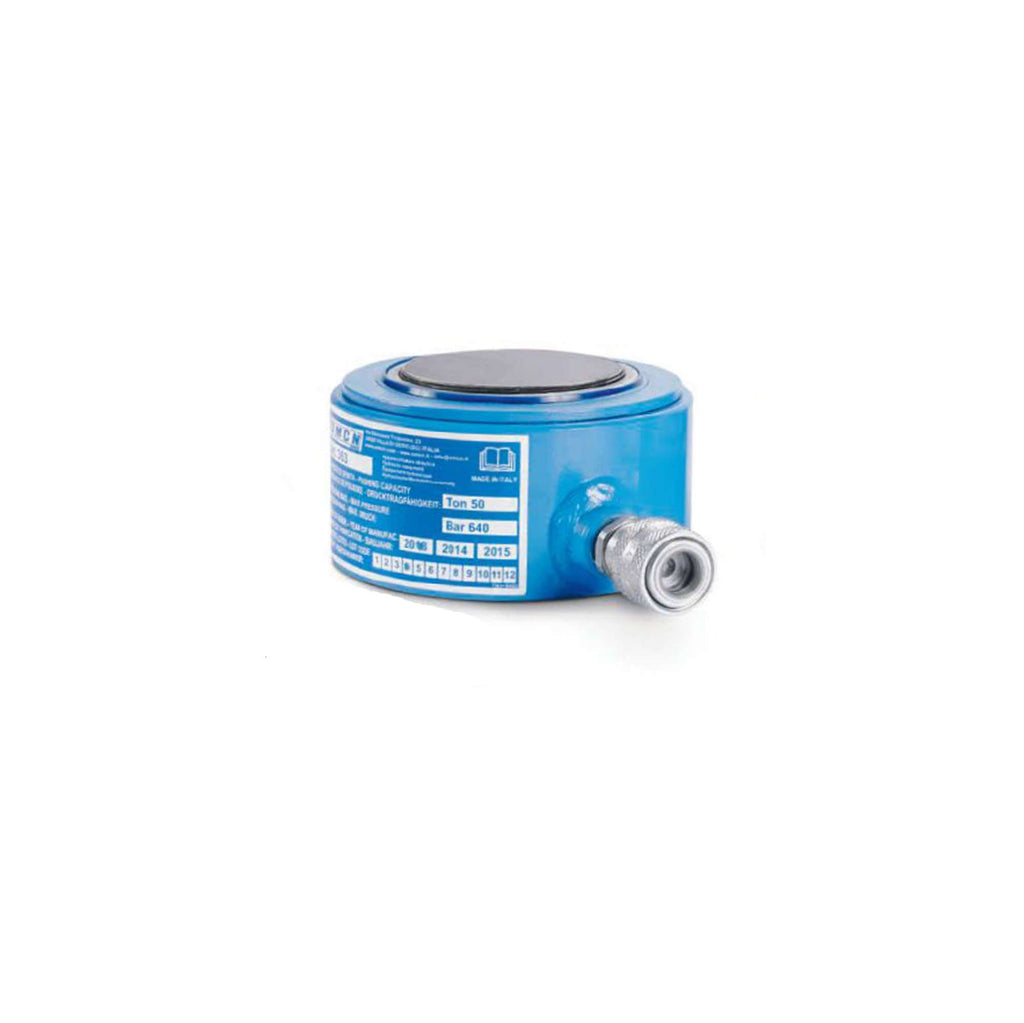

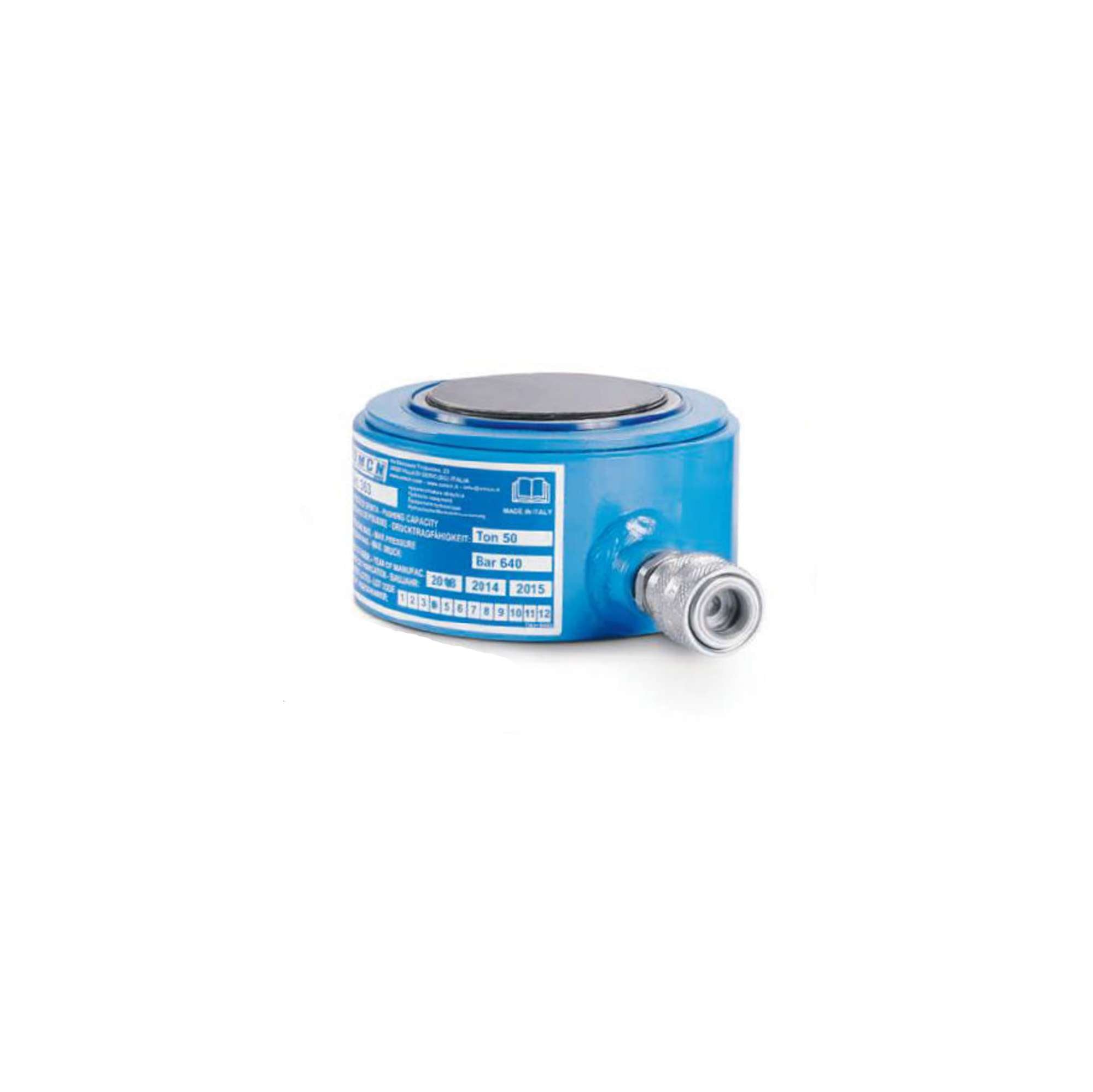

Space-saving hydraulic cylinder with gravity return for lifting up to a maximum of 50 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar and the product weight is 6 kg.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 50t
Working pressure 700bar
Oil capacity 39.2cm³
Dimensions A 75mm
Dimensions B 70mm
Dimensions C 5mm
Dimensions D 90mm
Weight 6kg
Delivery 10-15 days
