Description

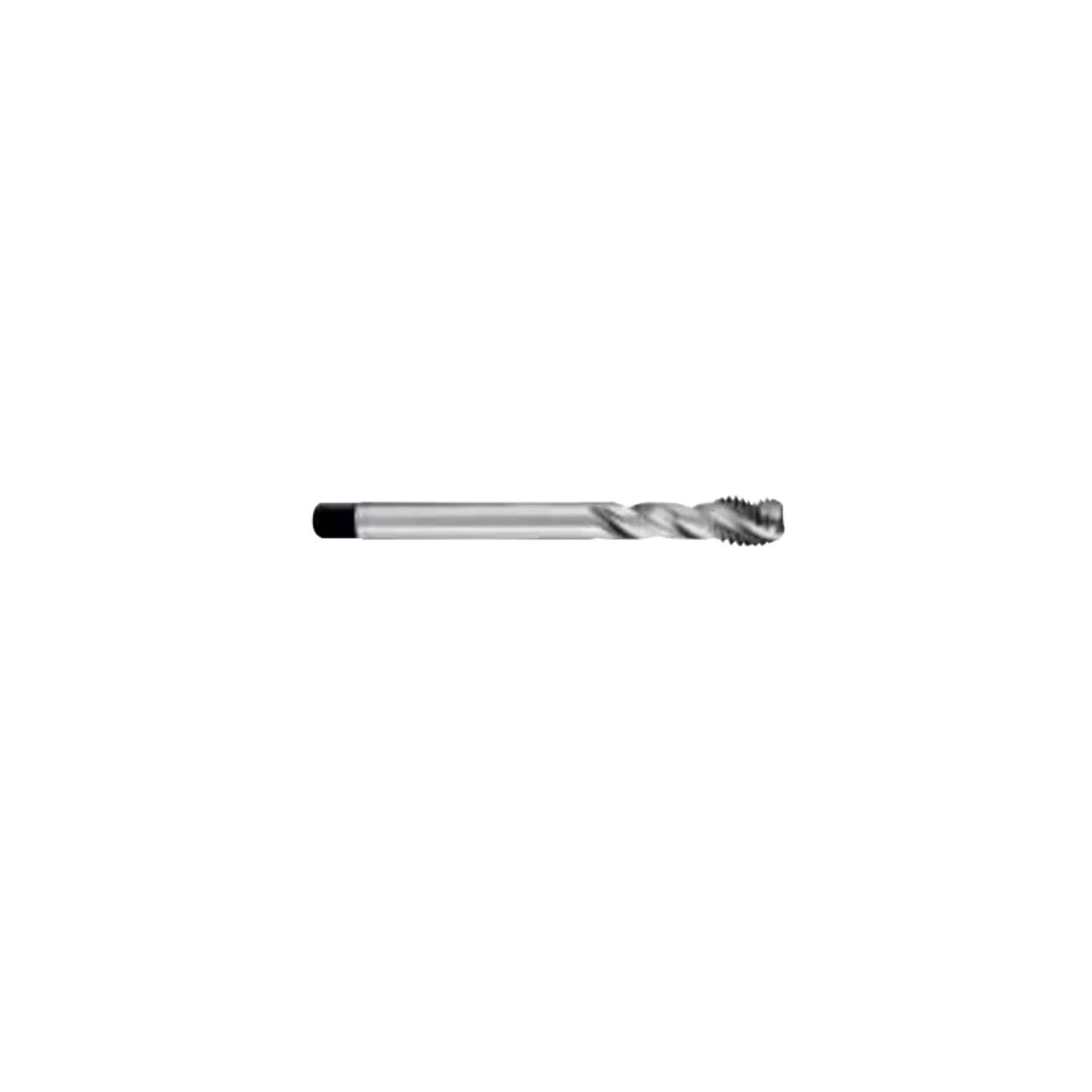

N - GENERIC APPLICATIONS - DIN 376 - CATALOGUE 6638
Material: HSS-CO

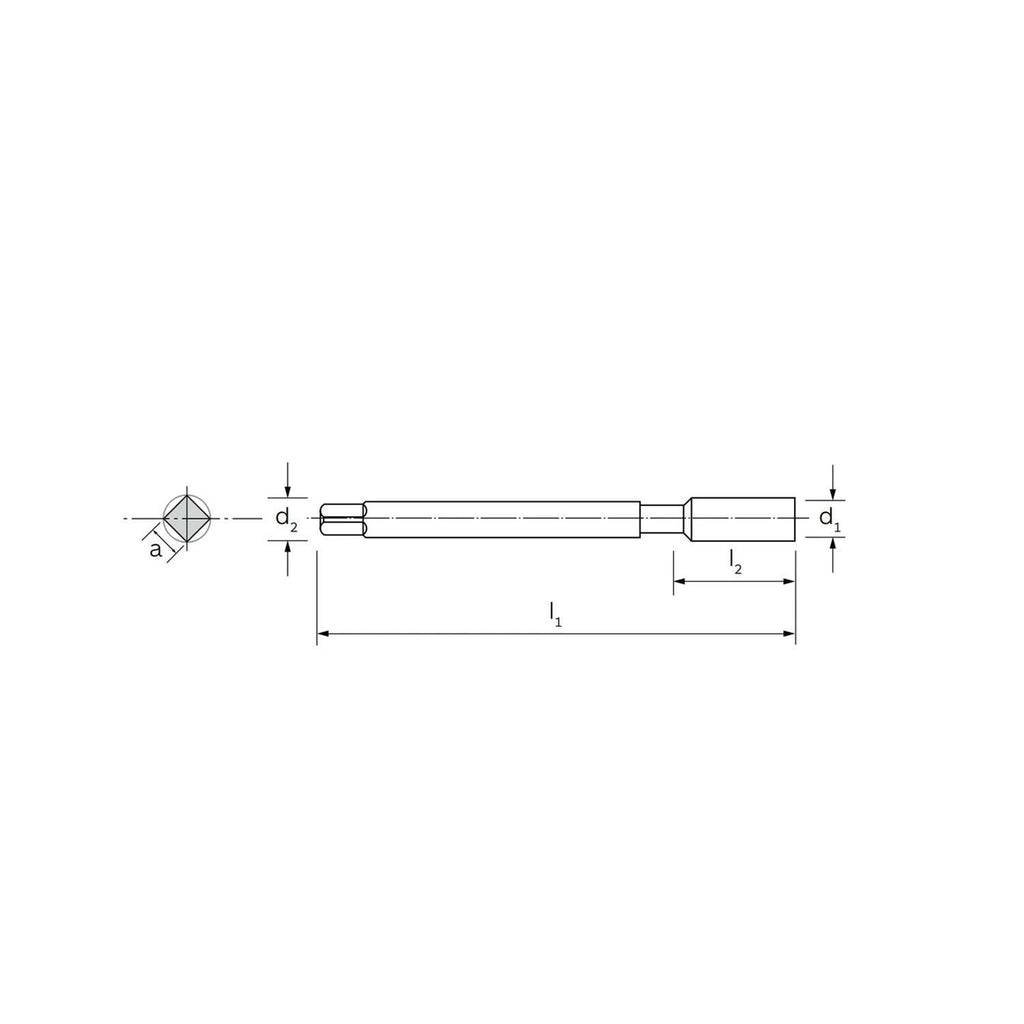

| Ø | L1 | L2 | L3 | D2 h9 | a h12 | Ø Pre-hole | Passo |
| 4 | 63 | 13 | 7 | 2.8 | 2.1 | 3.3 | 0.7 |
| 6 | 80 | 19 | 10 | 4.5 | 3.4 | 5 | 1 |
| 8 | 90 | 22 | 12 | 6 | 4.9 | 6.8 | 1.25 |
| 9 | 90 | 22 | 19 | 7 | 5.5 | 7.8 | 1.25 |
| 10 | 100 | 24 | 14 | 7 | 5.5 | 8.5 | 1.5 |
| 12 | 110 | 29 | 16 | 9 | 7 | 10.2 | 1.75 |
| 14 | 110 | 30 | 20 | 11 | 9 | 12 | 2 |
| 16 | 110 | 32 | 20 | 12 | 9 | 14 | 2 |
| 20 | 140 | 34 | 25 | 16 | 12 | 17.5 | 2.5 |
| 22 | 140 | 34 | 25 | 18 | 14.5 | 19.5 | 2.5 |
| 24 | 160 | 38 | 30 | 18 | 14.5 | 21 | 3 |
| 27 | 160 | 38 | 30 | 20 | 16 | 24 | 3 |
