Description

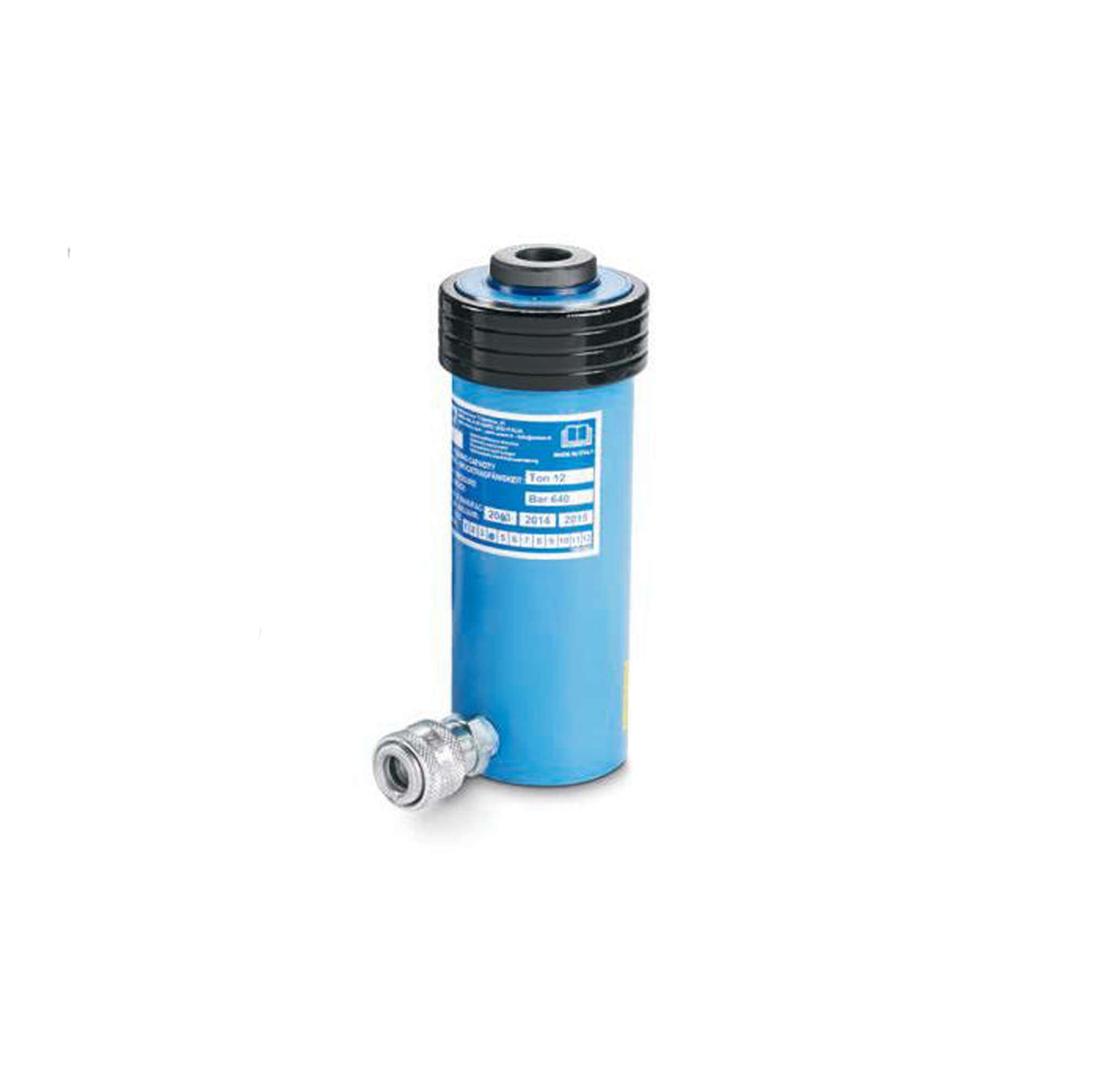

Single acting hydraulic cylinder with spring return for lifting up to a maximum of 37 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 37t
Working pressure 700bar
Oil capacity 760cm³
Dimensions A 535mm
Dimensions B 385mm
Dimensions C 150mm
Dimensions D 75mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M128X1,5mm
Dimensions H 20mm
Dimensions I M55X2mm
Dimensions L 88mm
Dimensions M M10
Dimensions N 34mm
Weight 25kg
Delivery 10-15 days
