Description

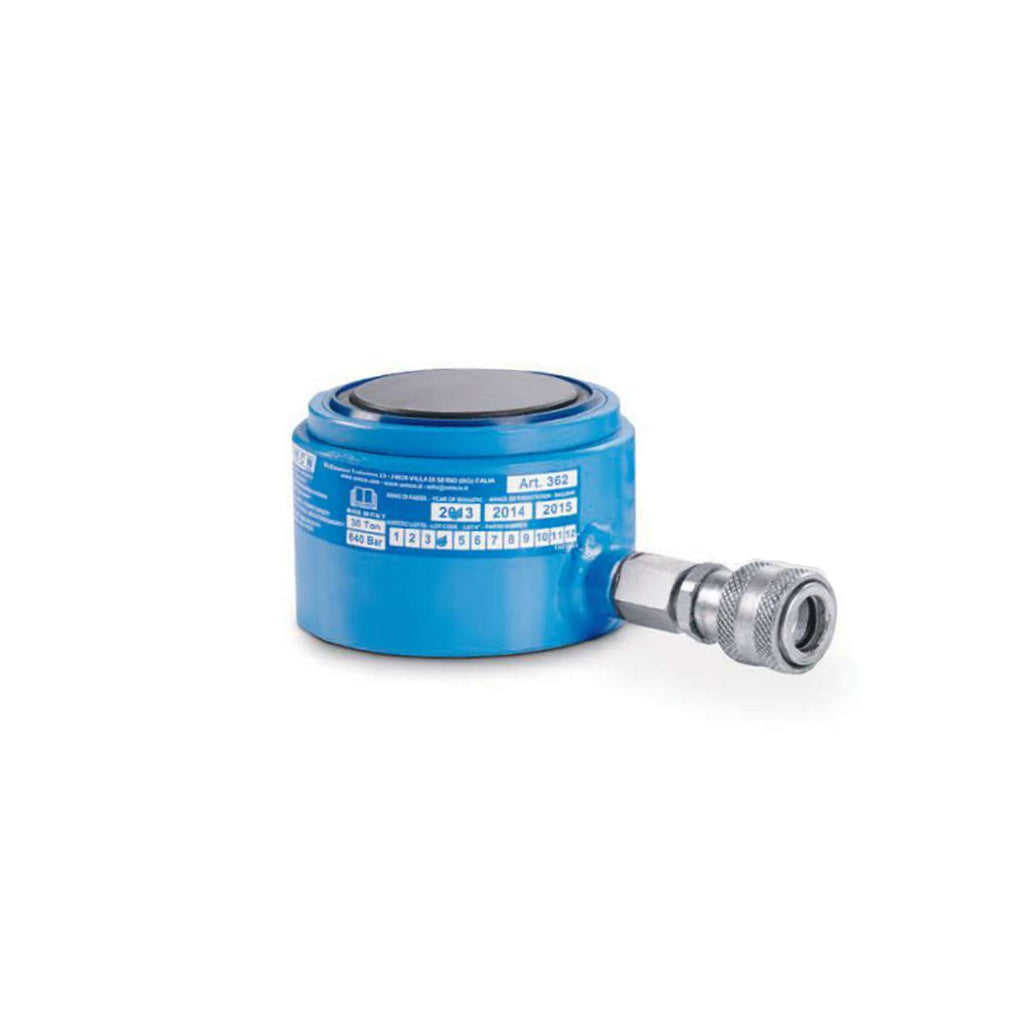

Space-saving hydraulic cylinder with spring return for lifting up to a maximum of 30 tonnes. Made of high quality materials.
The maximum working pressure is 700 bar and the product weight is 3.8 kg.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 30t
Working pressure 700bar
Oil capacity 40.1cm³
Dimensions A 78mm
Dimensions B 70mm
Dimensions C 8mm
Dimensions D 75mm
Weight 3.8kg
Delivery 10-15 days
