Description

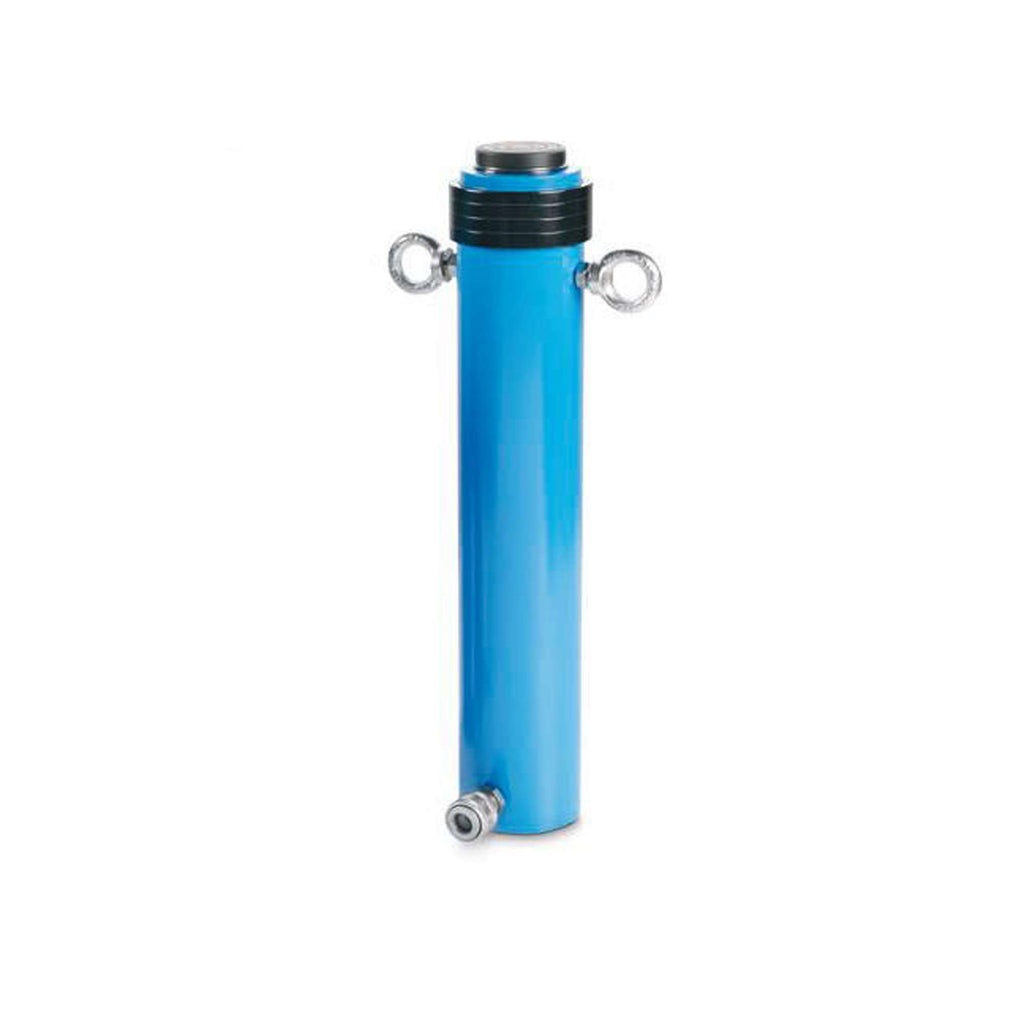

Long-stroke hydraulic cylinder with spring return for lifting up to a maximum of 30 tonnes. Made of high-quality materials.
The maximum working pressure is 700 bar.
The table below shows the features of the OMCN jack.
Technical Specifications
Capacity 30t
Working pressure 700bar
Oil capacity 702cm³
Dimensions A 420mm
Dimensions B 275mm
Dimensions C 140mm
Dimensions D 75mm
Dimensions E 20mm
Dimensions F 30mm
Dimensions G M104X2mm
Dimensions H 25mm
Dimensions I M39X4mm
Dimensions L 65mm
Dimensions M M10
Weight 16.8kg
Delivery 10-15 days
