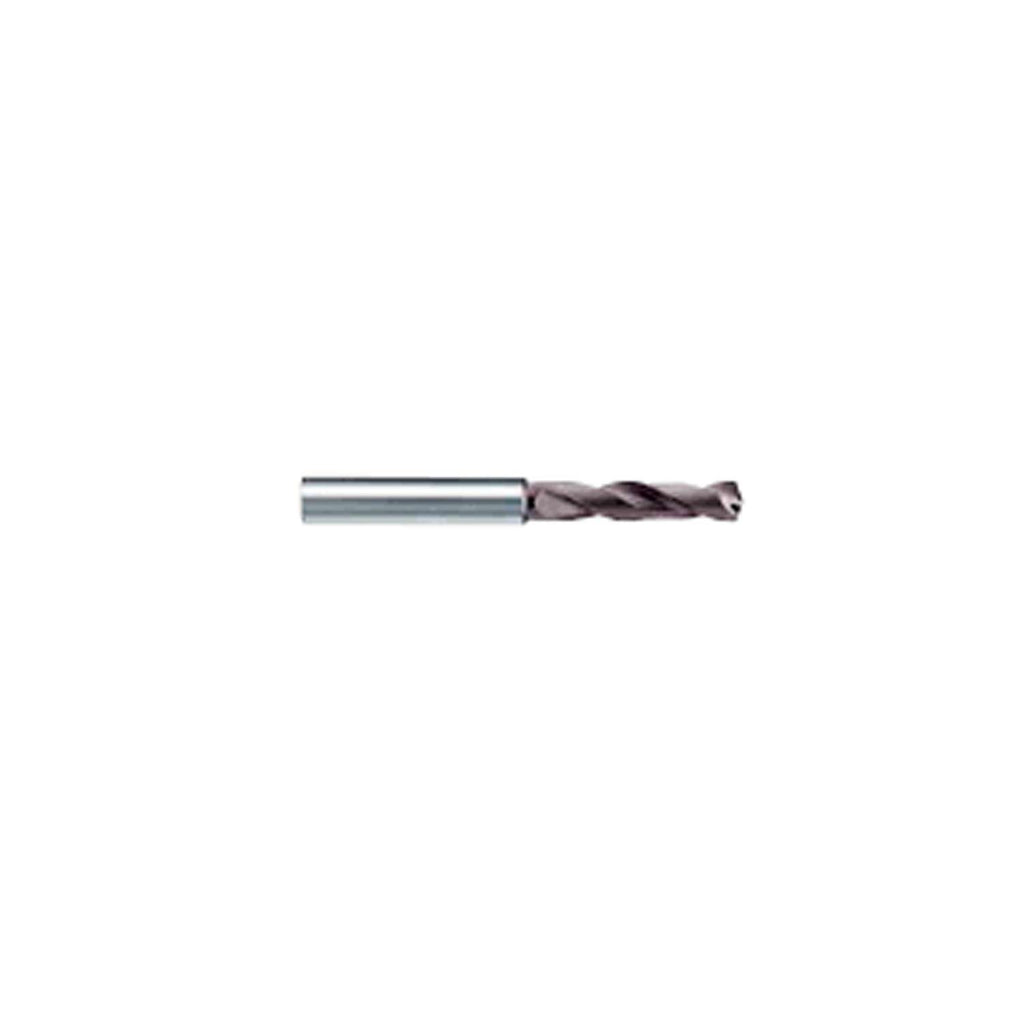

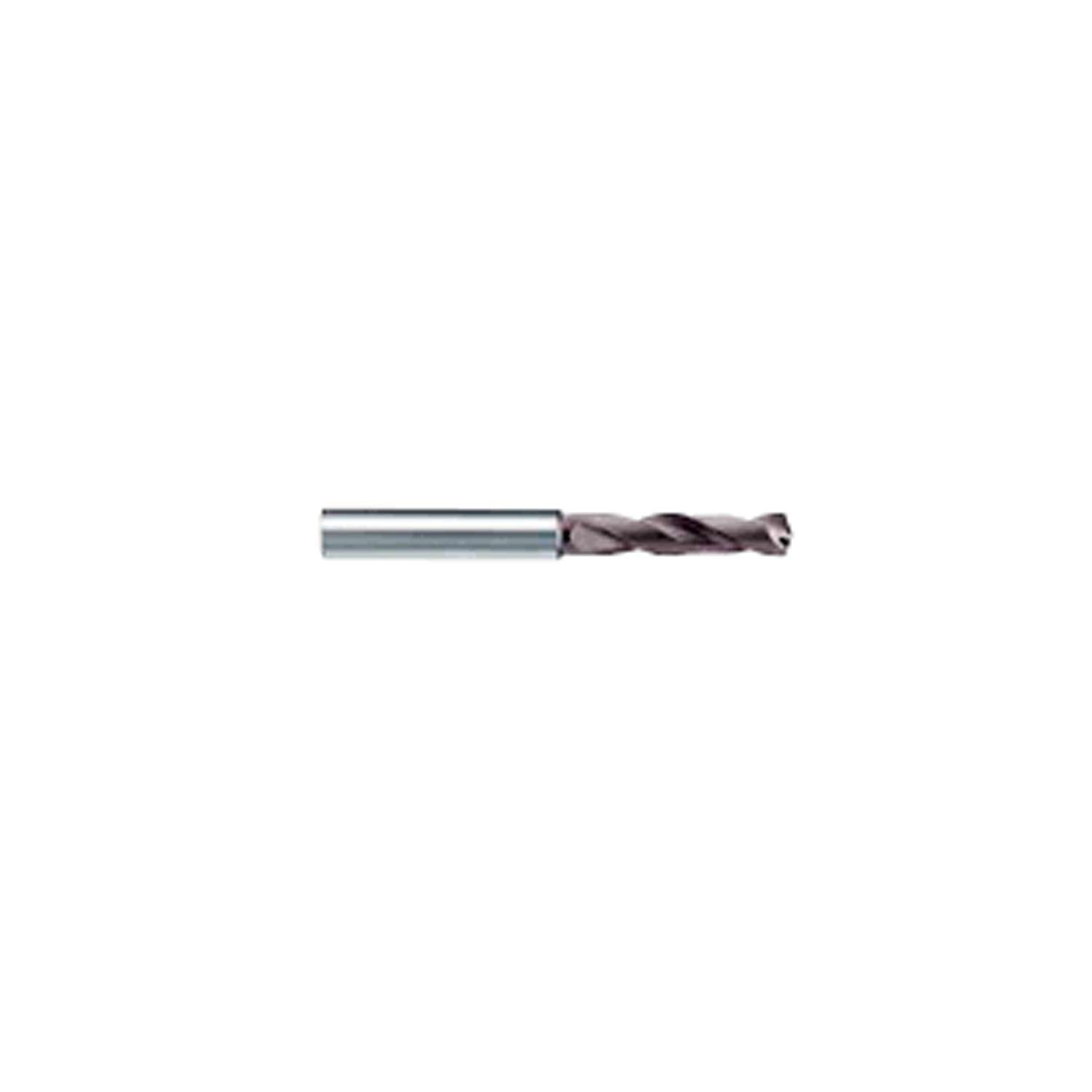

25l record drill for steel / cast iron with holes DIN 6537K - ILIX

IlixSKU: 232_013_IL6011TF___232_013_IL6011TF10
nome_variante: Ø Drill bit
variante_1: 10 mm - IL6011TF10
Price:
Login to view price
Availability : 3
Register to buy
Download datasheet

Description

RECORD 2S I - SPECIFICATION FOR STEEL / CAST IRON - DIN 6537K - CATALOGUE 6011TF



Ø L1 L2 L3 L4 d2h6
3 62 20 14 36 6
3.2 62 20 14 36 6
3.5 62 20 14 36 6
4 66 24 17 36 6
4.5 66 24 17 36 6
5 66 28 20 36 6
5.5 66 28 20 36 6
5.9 66 28 20 36 6
6 66 28 20 36 6
6.5 79 34 24 36 8
6.8 79 34 24 36 8
6.9 79 34 24 36 8
7 79 41 29 36 8
7.5 79 41 29 36 8
8 79 41 29 36 8
9.5 89 47 35 40 10
10 89 47 35 40 10
10.2 102 55 40 45 12
10.5 102 55 40 45 12
11 102 55 40 45 12
11.5 102 55 40 45 12
12 102 55 40 45 12
13.3 107 60 43 45 14
16 115 65 45 48 16
