Description
ELECTRO-HYDRAULIC SCISSOR LIFTS FOR INDUSTRIAL VEHICLES
Technical construction layout
- Electro-hydraulic operation.
- Manufactured in accordance with current regulations.
- Dead-man" controls. 24 V auxiliary voltage.
- Acoustic device and two-hand control in last lowering phase.
- Safety valve against overloading.
- Safety valve on each cylinder against injury or tube rupture.
- Compensated valve control of the descent speed.
- Electronic device for controlling and constantly maintaining the parallelism of the two platforms, regardless of the load distribution. The parallelism system is controlled by PLC.
- Safety photocell for the position of the two platforms.
- Special device to control and carry out the stationing of the two platforms.
- Possibility of positioning the control unit as required.
- Hydraulic circuit oil supplied.
- Ground anchoring plugs supplied.

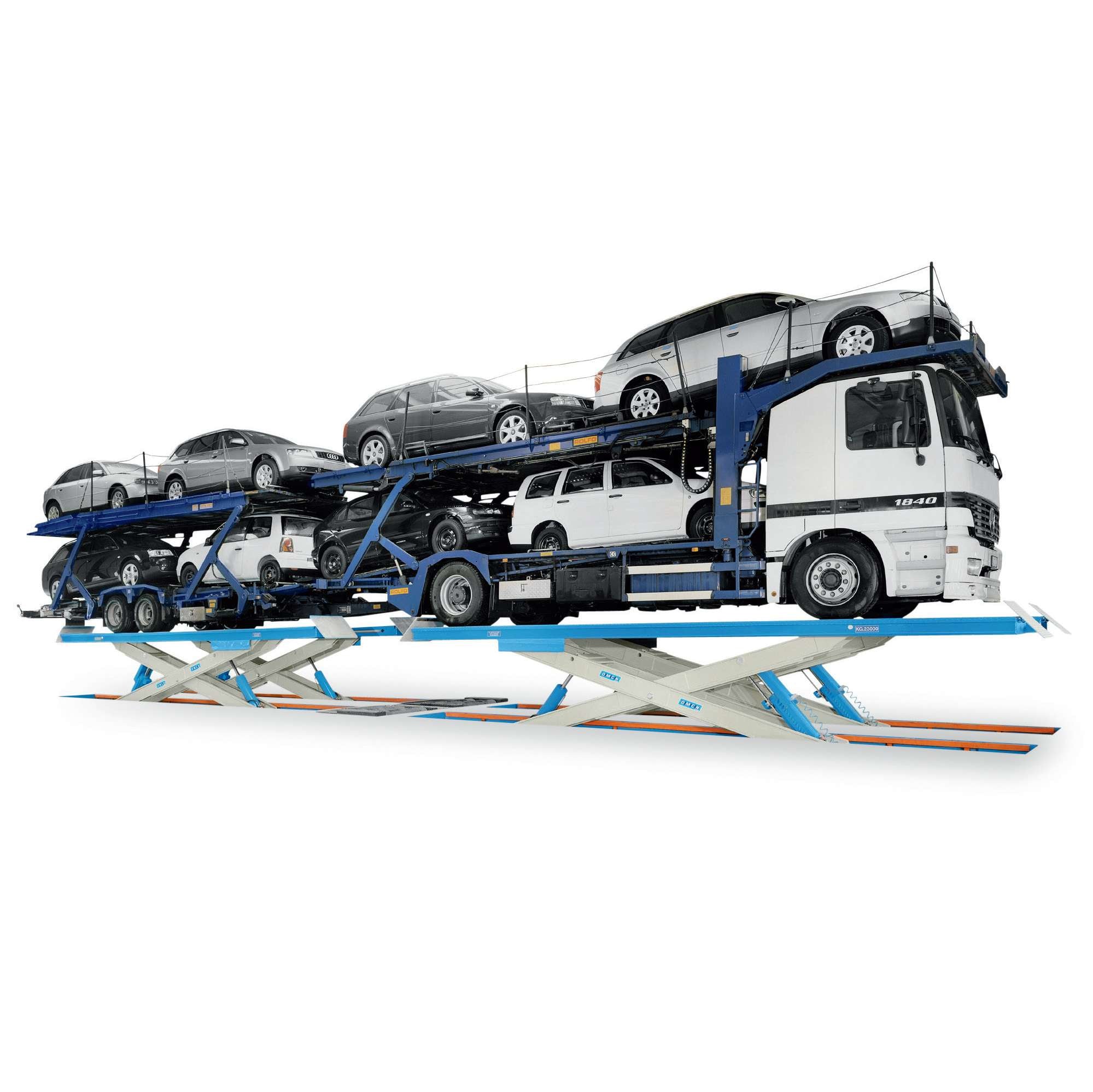

This solution involves the physical installation of two lifts whose operation, at the operator's discretion, can be
Simultaneous: the four platforms of the two lifts are raised in a perfectly synchronised manner in order to operate on very long vehicles.
Independent: the two lifts operate independently of each other, guaranteeing the possibility of operating simultaneously on two different vehicles.
Delivery 10-15 days
