Description

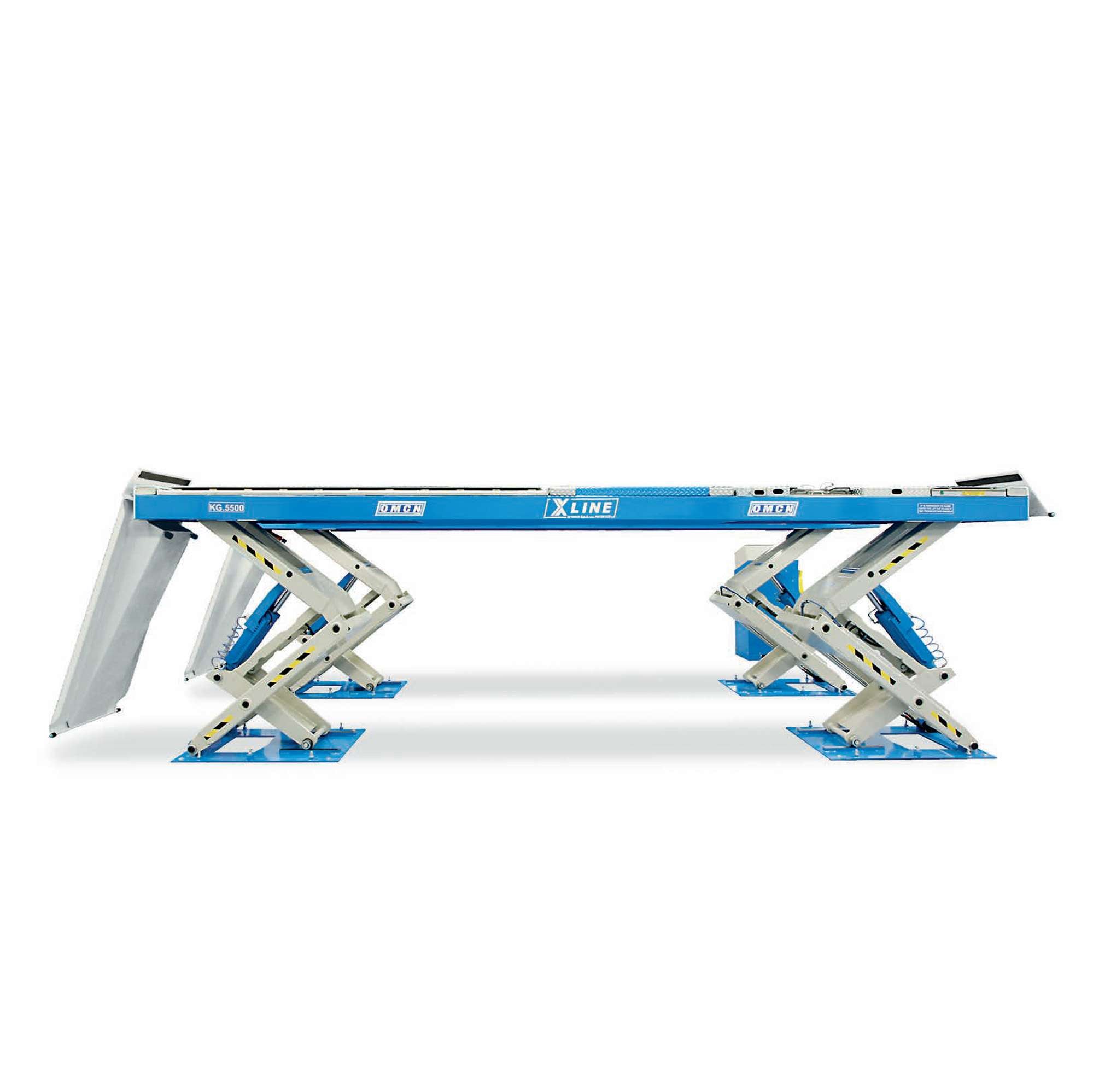

LIFTING BRIDGES ELECTRO-HYDRAULIC X-LINE SERIES
Technical layout
- Electro-hydraulic operation equipped with safety valves, descent speed control, overload and accidental breakage of supply pipes.
- Mechanical device with automatic engagement on both platforms for maximum safety.
- Hydraulic volumetric parallelism with electronic system equipped with PLC and encoder.
- Ground support base for maximum stability and flatness during installation and use.
- Maximum working convenience thanks to completely free manoeuvring space under and around the lift.
- Available in configurations with flat platform without accessories, for wheel alignment, or with play-testing.
- Pivots with self-lubricating bronze bushings.
- Floor-standing and flush-mounted models.
- Hydraulic circuit oil supplied.
- Ground anchor bolts supplied.
4,000 kg lift table with twin front and rear extensions for lifting from Smart to commercial vehicle.
All models are equipped with guides for sliding lifting crossbars.
Four small floor bases ensure greater sturdiness of the structure and ease of installation.
The patented design combines the working convenience of a 4-post lift with the small footprint of a scissor lift model. The entire area under the lift is
free and accessible from all directions.
Rear swing plates can be locked by pneumatic control on the control unit (wheel alignment models).
Front recess for modular, large turntables (wheel alignment models).
Alignment between the two turntables ensured by 4 ultra-high resolution position sensors.
Delivery 10-15 days
