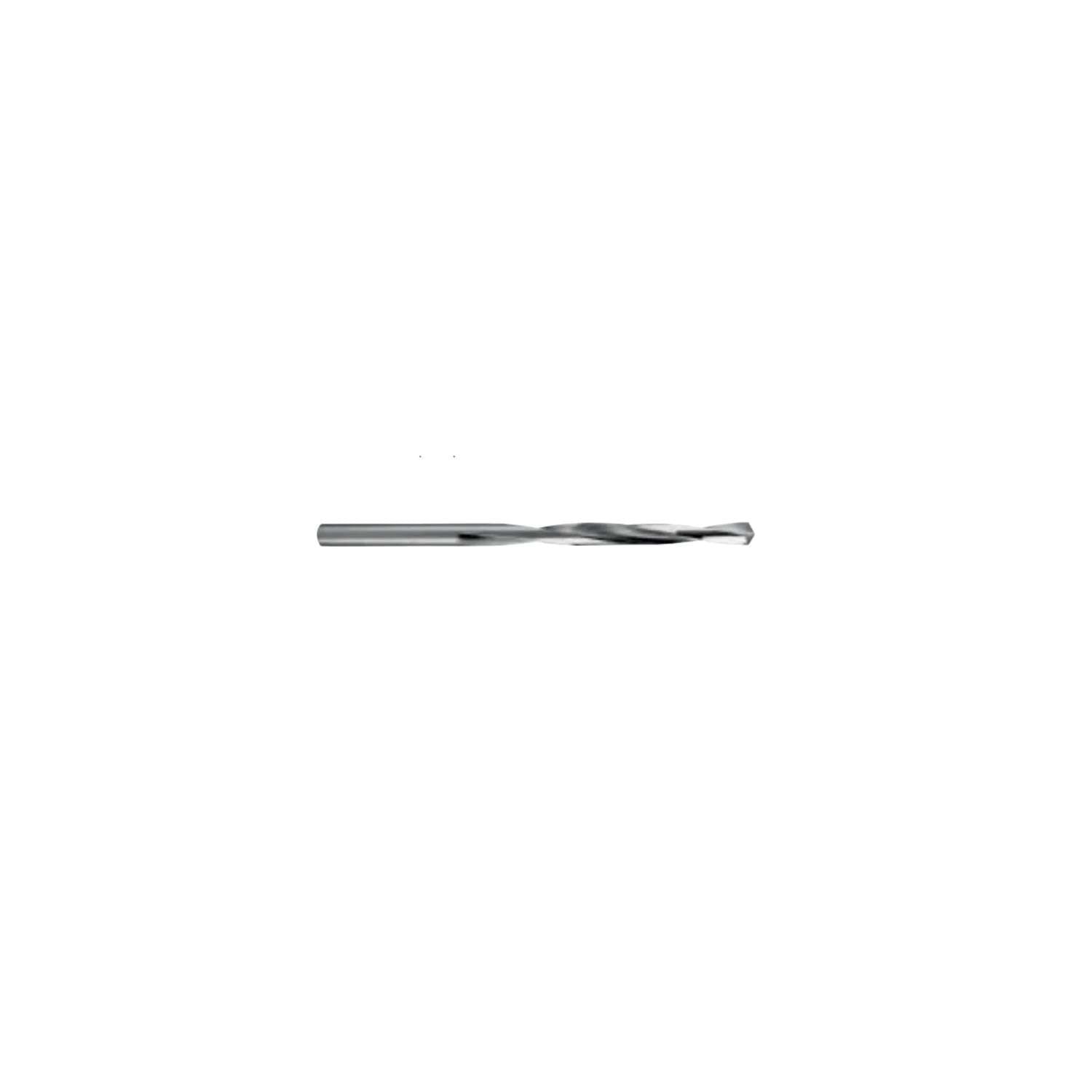

Specific cylindrical drill for brass DIN 340 type H - ILIX

IlixSKU: 232_013_IL6192___232_013_IL61921,1
nome_variante: Ø Drill bit
variante_1: 1,1 mm - IL61921,1
Price:
Login to view price
Availability : 3
Register to buy
Download datasheet

Description

H - SPECIFICATION FOR BRASS - DIN 340 - CATALOGUE 6192

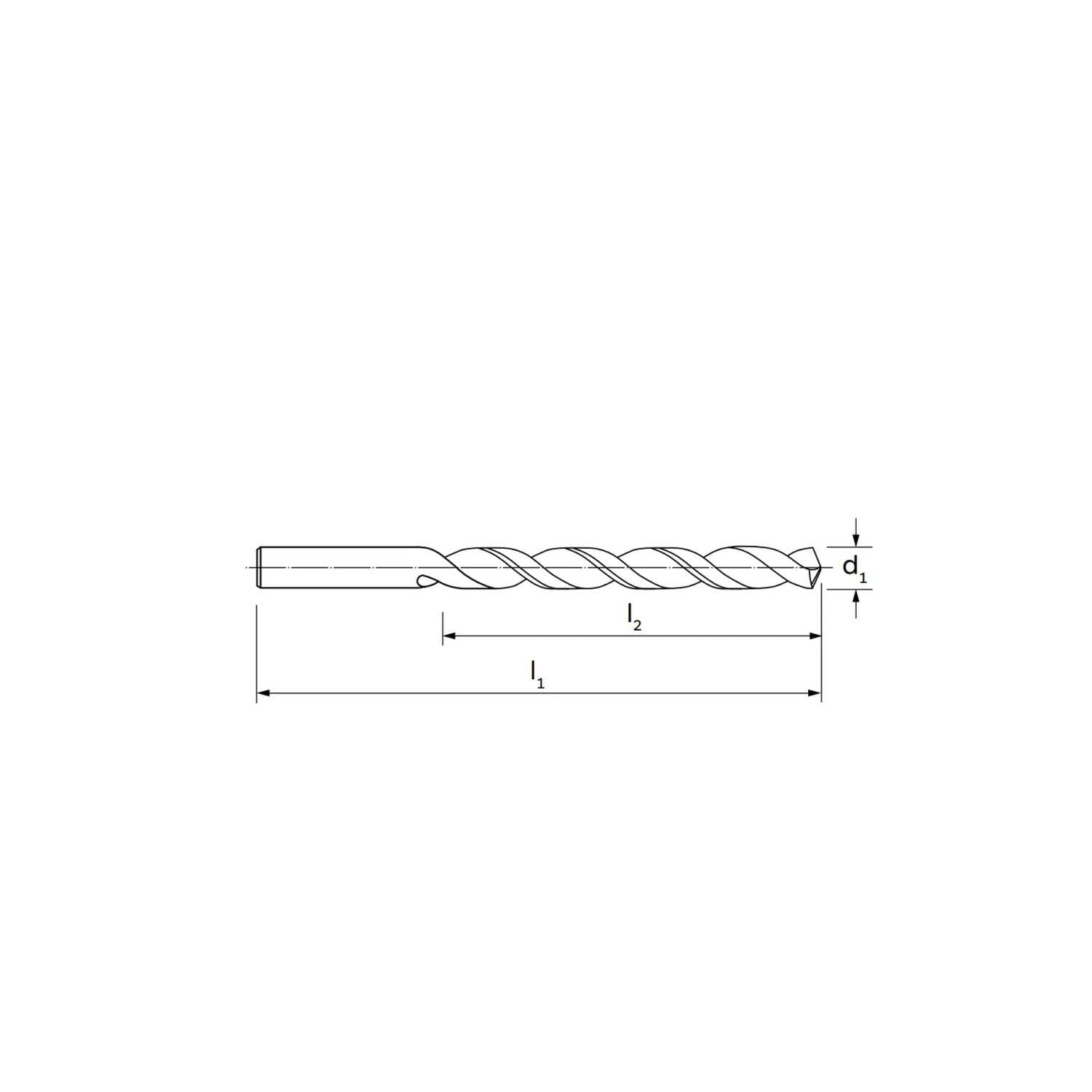

Ø L1 L2
1 56 33
1.1 60 37
1.5 70 45
2 85 56
2.1 85 56
2.2 90 59
2.3 90 59
2.4 95 62
2.5 95 62
2.8 100 66
2.9 100 66
3 100 66
3.4 112 73
3.5 112 73
4 119 78
4.5 126 82
5 132 87
7 156 102
