Description

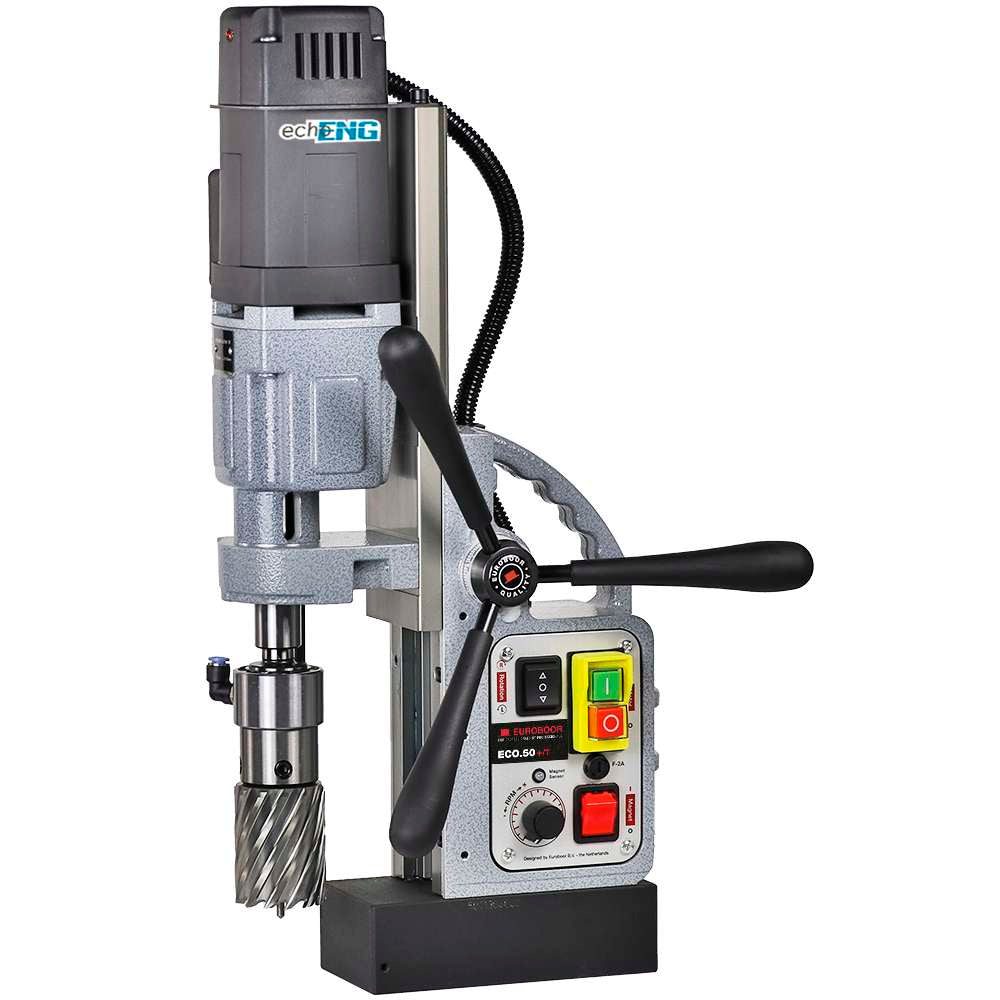

Professional Magnetic Drill 230 V Single-Phase – ECO.50+/T ENG PRO
The ECO.50+/T ENG PRO is a professional magnetic drill designed for maximum versatility and precision in workshops and on-site. Featuring a two-speed gearbox and electronic speed control, it delivers high-quality drilling, milling, and countersinking on metal sheets and profiles. With reversible rotation and a long spindle travel, it’s ideal for heavy-duty drilling tasks.
Key Features
Mechanical 2-speed gearbox
Electronic speed regulator
MT2 spindle taper for standard tooling
170 mm maximum spindle travel
Forward/reverse rotation
High-holding magnetic base: 18 142 N
230 V ⁄ 50 Hz single-phase power
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | 230 V ⁄ 1 phase |
| Motor Power | 1.375 – 1.87 kW (HP) |
| Speed Steps | 2 |
| Spindle Taper | MT2 – 19.05 mm (3/4") |
| Max. Spindle Travel | 170 mm |
| Annular Cutter Capacity | Ø 12 – 50 mm |
| Drill Chuck Capacity | Ø 1 – 23 mm |
| Countersink Capacity | Ø 10 – 55 mm |
| Threading Range | M3 – M20 |
| Magnetic Base Size | 170 × 85 × 48 mm |
| Magnetic Holding Force | 18 142 N |
| Speed (Low) | 250 rpm |
| Speed (High) | 460 rpm |
| Net/Gross Weight | 13.5 / 14 kg |
