Description

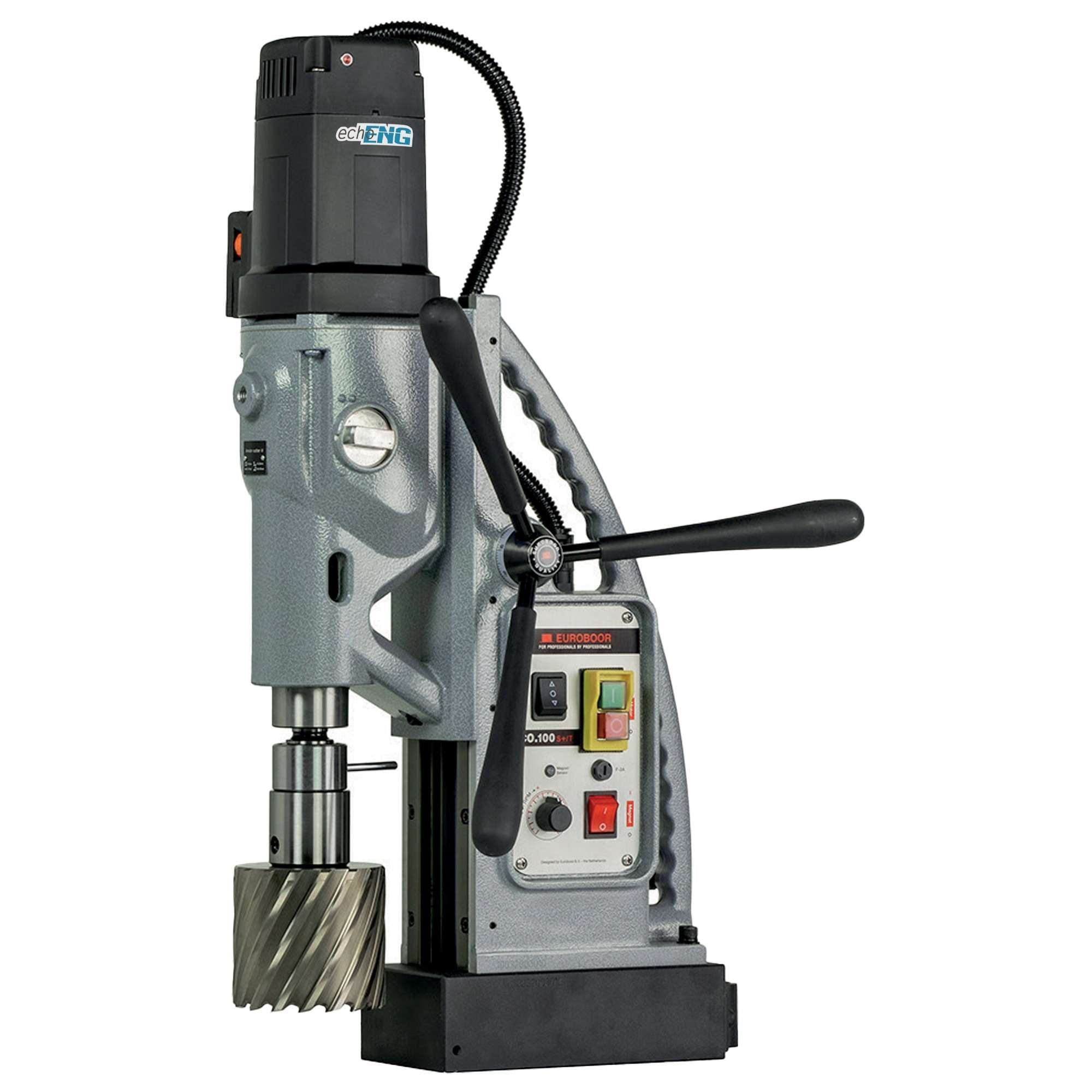

Professional Magnetic Drill 230 V Single-Phase – ECO.100S+/T ENG PRO
The ECO.100S+/T ENG PRO is a professional magnetic drill designed for the most demanding workshop and on-site applications. Equipped with a four-speed gearbox and electronic speed and torque control, it delivers high performance and maximum versatility on sheet and profile metals.
Key Features
4-speed mechanical gearbox
Morse taper MT3 (31.75 mm) for standard tooling
Reversible rotation (clockwise/counterclockwise)
Electronic speed and torque adjustment
Maximum quill travel: 260 mm
High-hold magnetic base: 29 420 N
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | 230 V / single-phase |
| Motor Power | 2.05 – 2.79 kW (HP) |
| Morse Taper | MT3 – 31.75 mm (1 ¼″) |
| Gearbox Speeds | 4 speeds |
| Spindle Speeds (I–IV) | 85, 152, 270, 480 rpm |
| Maximum Quill Travel | 260 mm |
| Annular Cutter Capacity | Ø 12 – 100 mm |
| Twist Drill Capacity | Ø 1 – 31.75 mm |
| Countersink Capacity | Ø 10 – 105 mm |
| Threading Range | M3 – M30 |
| Magnetic Base Dimensions | 220 × 110 × 64 mm |
| Magnetic Holding Force | 29 420 N |
| Net / Gross Weight | 27.8 / 29 kg |
