Description

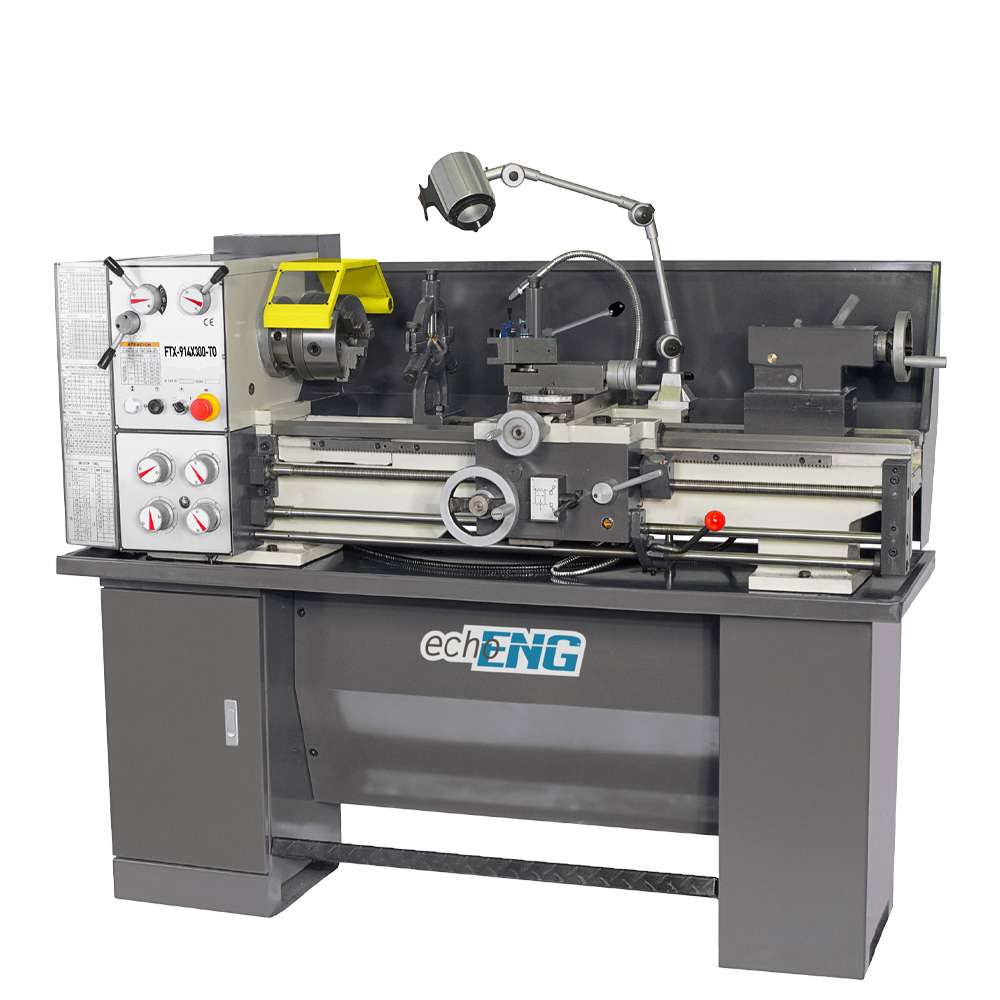

FTX-914X300-TO T 400V ENG PRO Parallel Lathe
The FTX-914X300-TO T is a parallel lathe designed for professional mechanical processing. Featuring a robust design and comprehensive equipment, it ensures precision, safety, and reliability. Ideal for general turning work, workshops, and industrial maintenance.
Main Features
- Lathes for mechanical processing, designed for professionals, with a robust design, hardened and ground prismatic guides. Includes rear guard, cooling system, foot brake, and automatic gear change box with oil bath gears.
- Foot brake
- Chuck and turret guard
- Spindle with tapered roller bearings
- Emergency stop button
- Threading indicator
- Longitudinal carriage travel stop
- Machine manufactured in compliance with CE regulations
Standard Accessories
- 3-jaw chuck Ø160 mm
- 4-jaw chuck Ø200 mm
- Platform
- CM3 spindle
- Fixed and traveling steady rests
- Cooling system
- Rotating tailstock CM3
- Fixed tailstock CM3
- Lamp
- Metal chuck guard
- Tool set
- Base with foot brake
- Chip tray
- Three drawers
- Telescopic lead screw cover
Technical Specifications
| X-Y Digital Readout (DRO X-Y) | No |
| Power Supply | 400V - 50 Hz |
| Power | 1.1 kW |
| Transmission | Gears |
| Max turning diameter over bed | 300 mm |
| Max turning diameter in gap | 430 mm |
| Max turning diameter over carriage | 190 mm |
| Spindle bore | 38 mm |
| Distance between centers | 914 mm |
| Spindle taper | MT5 |
| Tailstock taper | MT3 |
| Tailstock quill diameter | 32 mm |
| Tailstock quill travel | 90 mm |
| Number of spindle speeds | 18 |
| Speed range | 65–1810 RPM |
| Metric threading | 36 pitches / 0.4–7 mm |
| Inch threading | 36 pitches / 4–60 TPI |
| Longitudinal feed rates | 0.079–1.291 mm/rev |
| Cross feed rates | 0.017–0.276 mm/rev |
| Weight | 540 kg |
| Machine dimensions | 1850 x 750 x 1460 mm |
| Product code | 8423640961753 |
