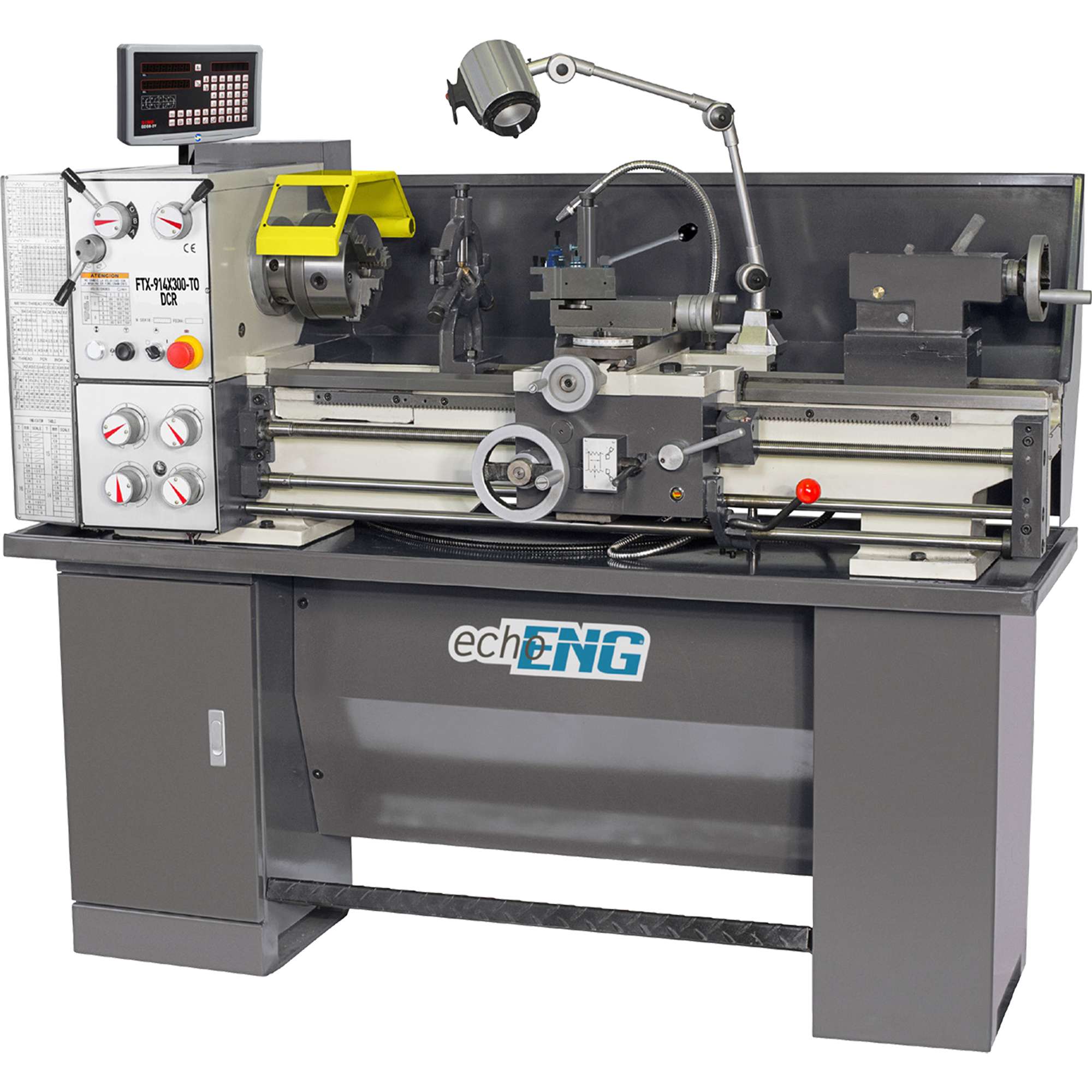

Parallel Lathe with Digital Readout FTX-914X300-TO DCR 400V
Professional-grade parallel lathe designed to deliver high performance, precision, and safety in mechanical machining operations. Sturdy construction with ground prismatic guideways and large turning capacity. Equipped with digital readout on X-Y axes for maximum machining accuracy.
Main features:
Lathe for mechanical machining, designed for professionals, robust design with hardened and ground prismatic guideways. Includes rear protection, cooling system, foot brake, and automatic gear change box in oil bath.
Rapid longitudinal and cross feeds
Emergency stop micro switch
Chuck and turret protection
Emergency stop button
Foot brake
Threading indicator
Longitudinal carriage travel stop
Standard quick-change tool post
Cooling system
Digital readout mounted as standard
Distribution chain guard
Machine built according to CE standards
Standard accessories:
• 3-jaw chuck Ø160 mm with bar capacity 82 mm
• 4-jaw chuck Ø200 mm
• Face plate
• Fixed and follow rests
• Tailstock MT3
• Fixed tailstock MT3
• Work lamp
• MT3 spindle
• Quick-change turret
• Telescopic guard for feed bar
• Cooling system
• Tool set
• User and maintenance manual
Technical specifications:
| Feature | FTX-914X300-TO DCR |
|---|---|
| Digital readout X-Y | Yes |
| Voltage | 400 V / 50 Hz |
| Power | 1.1 kW |
| Transmission | Gears |
| Max. swing over bed | 300 mm |
| Max. swing over gap | 430 mm |
| Max. swing over cross slide | 190 mm |
| Spindle bore | 38 mm |
| Distance between centers | 914 mm |
| Spindle taper | MT5 |
| Tailstock taper | MT3 |
| Tailstock sleeve diameter | 32 mm |
| Tailstock sleeve travel | 90 mm |
| Number of speeds | 18 |
| Spindle speed range | 65 – 1810 RPM |
| Longitudinal feeds | 0.079 – 1.291 mm/rev |
| Cross feeds | 0.017 – 0.276 mm/rev |
| Metric threads | 36 pitches / 0.4 – 7 mm |
| Inch threads | 36 pitches / 4 – 60 TPI |
| Weight | 540 kg |
| Dimensions | 1850 × 750 × 1460 mm |
| Barcode | 8423640964624 |
