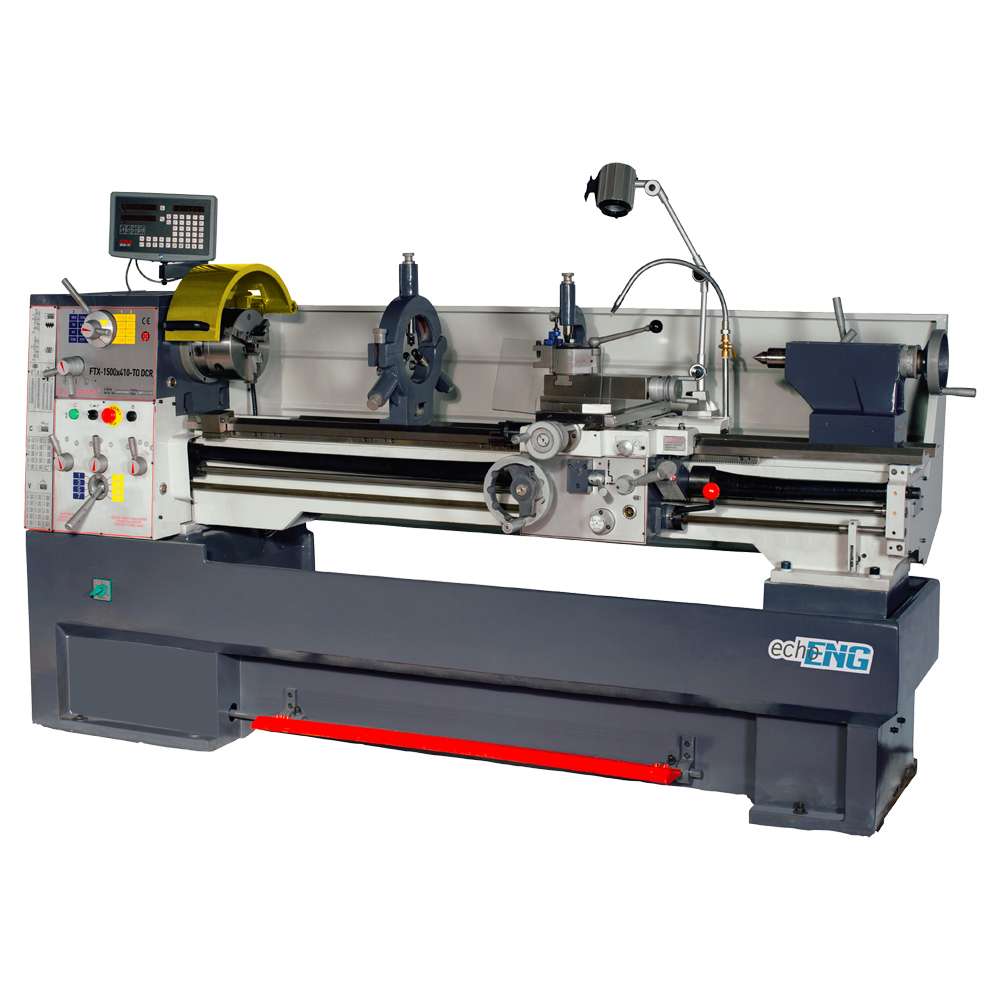

Parallel Lathe with Digital Readout FTX-1500X410-TO DCR 400V ENG PRO
The FTX-1500X410-TO DCR is a parallel lathe designed for professional machining applications. Featuring a robust design and complete equipment, it ensures precision, safety, and reliability. Ideal for general turning, workshops, and industrial maintenance, it includes a digital readout and a wide range of standard accessories.
Main Features
- Lathes for professional machining use, robust design with hardened and ground prismatic guideways.
- Emergency stop microswitch
- Spindle and turret guards.
- Emergency stop button.
- Foot brake.
- Threading indicator.
- Longitudinal carriage travel stop.
- Machines manufactured according to CE standards.
Standard Accessories
- 3-jaw chuck Ø200 mm (with bar capacity Ø52 mm)
- 4-jaw chuck Ø250 mm
- Faceplate Ø320 mm
- Fixed and traveling steady rests
- Coolant system
- Tailstock
- Lamp
- Metal spindle guard
- Tool set
- Base
- Telescopic guard for feed rod
Technical Specifications
| Digital Readout X-Y (DRO X-Y) | Yes |
| Power Supply | 400V - 50 Hz |
| Power | 2.2 / 3.3 kW |
| Transmission | Gears |
| Turning Diameter Over Gap | 580 mm |
| Turning Diameter Over Bed | 410 mm |
| Turning Diameter Over Cross Slide | 255 mm |
| Spindle Bore Diameter | 52 mm |
| Distance Between Centers | 1500 mm |
| Spindle Taper | MT6 |
| Tailstock Taper | MT4 |
| Tailstock Quill Diameter | 50 mm |
| Tailstock Quill Travel | 120 mm |
| Number of Speeds | 16 |
| Speed Range | 42–1800 RPM |
| Metric Threading | 39 threads / 0.2–14 mm |
| Inch Threading | 54 threads / 2–72 TPI |
| DP Threading Range | 21 threads / 8–44 TPI |
| Module Threading Range | 15 threads / 0.3–3.5 Mod |
| Longitudinal Feeds | 0.05–1.7 mm/rev |
| Cross Feeds | 0.025–0.85 mm/rev |
| Weight | 1600 kg |
| Machine Dimensions | 2560x1140x1640 mm |
| Product Code | 8423640293250 |
