Description

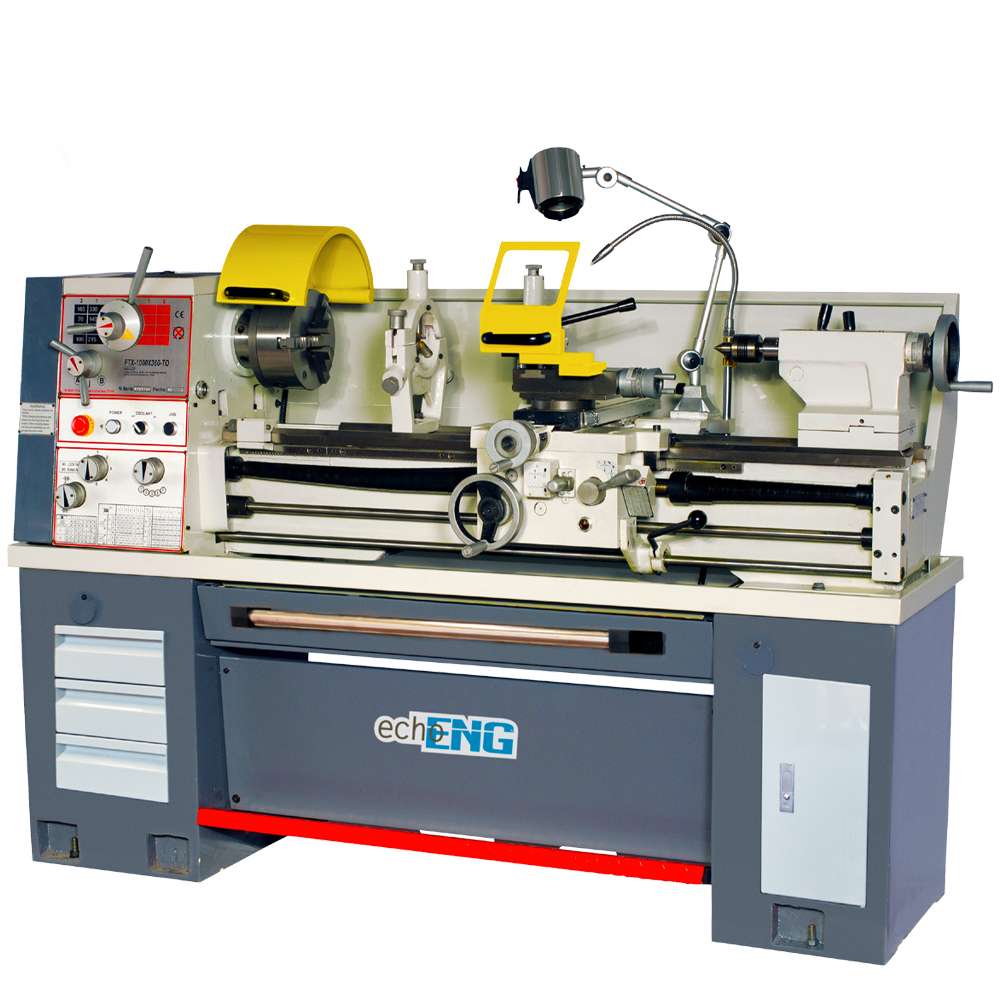

FTX-1000X360-TO 400V ENG PRO Parallel Lathe
The FTX-1000x360-TO is a parallel lathe designed for professional machining operations. Featuring a robust design and comprehensive equipment, it ensures precision, safety, and reliability. Ideal for general turning, workshops, and industrial maintenance.
Main Features
- Lathes for professional mechanical machining, robust design with hardened and ground prismatic guides.
- Emergency stop microswitch
- Chuck and turret guard
- Emergency stop button
- Foot brake
- Threading indicator
- Longitudinal carriage travel stop
- Brushless motor
- Machines manufactured in compliance with CE regulations
Standard Accessories
- 3-jaw chuck Ø200 mm
- 4-jaw chuck Ø200 mm
- Faceplate Ø300 mm
- Fixed and traveling steady rest
- Coolant system
- Tailstock
- Work light
- Metal chuck guard
- Tool set
- Machine base
- 4-position quick-change tool post
- Chip tray
- Three drawers
- Telescopic guard for leadscrew
Technical Specifications
| X-Y Digital Readout (DRO X-Y) | No |
| Power Supply | 400V - 50 Hz |
| Power | 1.5/2.2 kW |
| Transmission | Gears |
| Swing over gap | 506 mm |
| Swing over bed | 356 mm |
| Swing over carriage | 220 mm |
| Spindle bore diameter | 50 mm |
| Distance between centers | 1000 mm |
| Spindle taper | MT5 |
| Tailstock taper | MT3 |
| Tailstock diameter | 45 mm |
| Tailstock stroke | 120 mm |
| Number of speeds | 16 |
| Speed range | 45–1800 RPM |
| Metric threading | 39 threads / 0.4–7 mm |
| Inch threading | 42 threads / 4–56 TPI |
| Longitudinal feeds | 0.043–0.653 mm/rev |
| Cross feeds | 0.015–0.220 mm/rev |
| Weight | 800 kg |
| Machine dimensions | 1920x760x1450 mm |
| Product code | 8423640400351 |
