Description

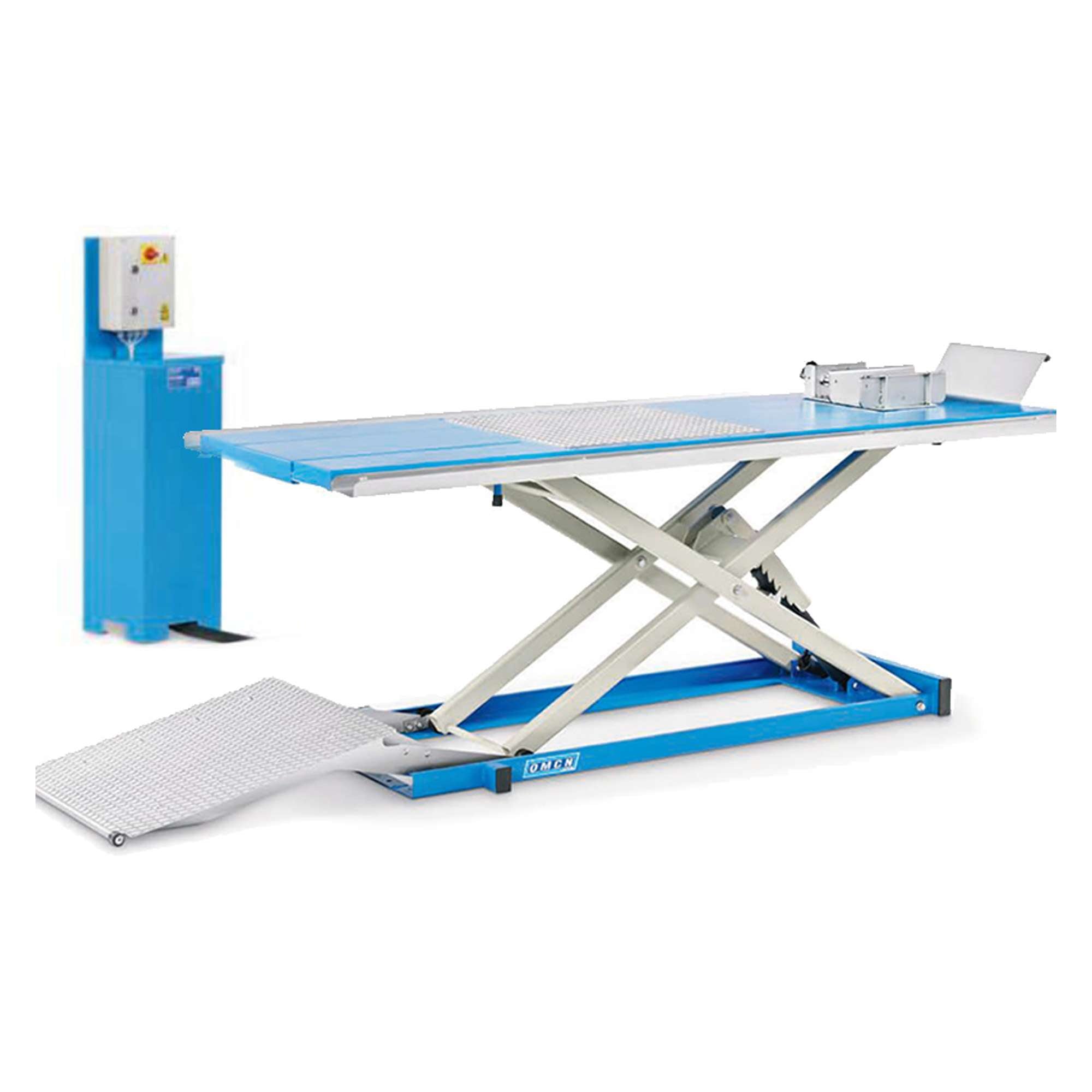

OMCN floor-mounted electro-hydraulically operated lift with powerful three-phase 400V - 50Hz motor and complete with fully retractable front platform to facilitate positioning of the motorbike and to eliminate bulk when the bench is raised.
OMCN 196/PL is made of sturdy materials that guarantee reliability over time and is able to lift motorbikes weighing up to 500 kg.
power
control
The bridge is part of the TOP LINE Made in Italy CE certified series, indispensable in workshops and in the automotive sector, perfect for carrying out repairs, overhauls and periodic checks.
Technical construction layout
Removable rear window to facilitate wheel removal
Overhanging front wheel stop to facilitate positioning of the bike
Manual vice in lowered version
Sliding system on solid rollers
Pins complete with grease nipples
Aluminium non-slip central protection
Standard equipment trays
Complete with mechanical toothed safety rack
Dimensions and overall dimensions
Lift length excluding front footboard 2200 mm
Footboard width 700 mm
Maximum working height 1080 mm
Motor frequency 50HZ
Power supply 400V
Power output 1.5Kw
Delivery 10-15 days
