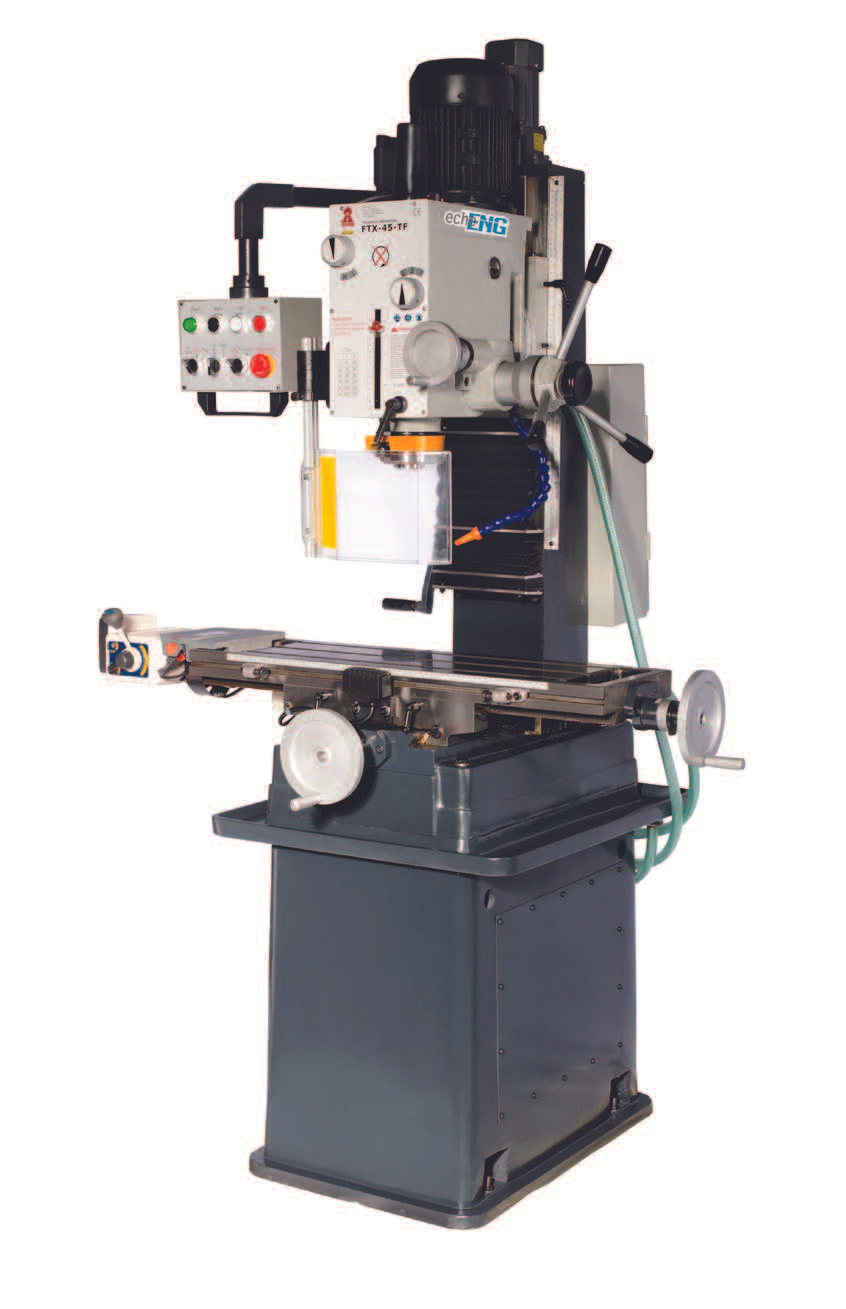

Industrial Drill Mill with Motorized X-Z Axes Drilling Capacity 40 mm – FTX-45-TFS 400V
Product Description
Professional industrial drill mill equipped with motorized feed on the X and Z axes. Ideal for drilling operations up to 40 mm. Robust construction with a cast iron base, high precision guaranteed by calibrated rack and variable-speed automatic feed system. CE compliant.
Main Features
• Square pedestal ensures maximum rigidity
• Articulated arm control box
• Quiet operation
• Supplied with low voltage safety circuit
• Spindle protection
• Head elevation via ground guides
• Head elevation by manual or motorized control
• Table lock on X-Y axes
• Taper gib key on X, Y, and Z axes
• Large diameter shaft with tapered roller bearings
• Calibrated rack and pinion for precise feed
• Spindle depth lock
• Variable-speed automatic table feed
• Coolant system
• Head tiltable ± 90º
• Safety micro switch protection
• Machine built according to CE standards
Standard Accessories
• Coolant system
• B16 drill chuck / 1-13 mm
• Cast iron base
• Automatic longitudinal feed
• MT4-MT3 reducer
• MT3-MT2 reducer
• Tool box
Technical Specifications
| Description | Value |
|---|---|
| Input voltage | 400 - 50 V |
| Power | 1.1 kW |
| Transmission | Gears |
| Number of speeds | 12 |
| Spindle speed | 75 - 3,200 R.P.M. |
| Max drilling capacity | 40 mm |
| Max vertical drilling diameter | 32 mm |
| Max horizontal drilling diameter | 80 mm |
| Distance spindle to column | 260 mm |
| Max spindle-to-table distance | 470 mm |
| Morse taper | MT4 |
| Quill travel | 120 mm |
| Longitudinal travel (X) | 560 mm |
| Cross travel (Y) | 230 mm |
| Vertical travel (Z) | 300 mm |
| T-slot dimensions | 3x14 mm |
| Overall height | 1,750 mm |
| Table dimensions | 800 x 240 mm |
| Machine dimensions | 1,020 x 940 x 2,100 mm |
| Weight | 580 kg |
| Barcode | 8423640093201 |
