Description
-

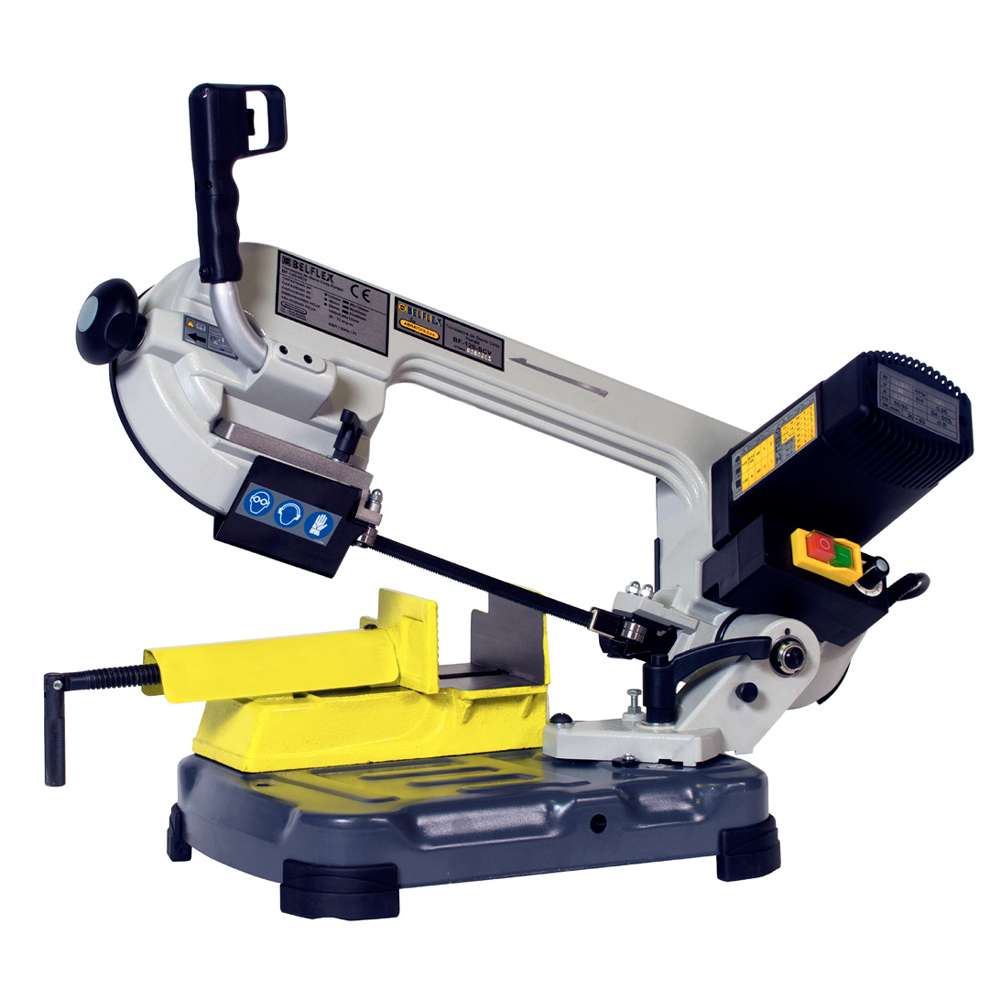

Manual Bandsaw with Swivelling Head 60° — Belflex ENG PRO BF-120-SCV2
The Belflex BF-120-SCV2 ENG PRO is a manual bandsaw designed for precise and versatile cutting thanks to its swivelling head up to 60°.
Equipped with a wide base for maximum stability, blade guide supported by ball bearings, electronic speed regulator and direct transmission, it ensures constant performance and safe operation with the emergency stop switch.
Main features
Easy adjustment of cutting angle (0–60°)
Wide base for excellent stability
Blade guide supported by ball bearings
Emergency stop switch
Electronic speed regulator with constant speed
Direct transmission
Machine manufactured according to CE standards
Technical specifications
| Specifications | Value |
|---|---|
| Power supply | 230V / F1 |
| Power | 2 – 2.70 kW – Hp |
| Cutting speed | 45 – 65 VARIO m.p.m. |
| Cutting capacity 90° (round/rect./square) | Ø150 / 150x80 / 135x135 mm |
| Cutting capacity 45° (round/rect./square) | Ø90 / 80x120 / 85x85 mm |
| Cutting capacity 60° (round/rect./square) | Ø50 / 50x60 / 50x50 mm |
| Cutting capacity 45° left | - mm |
| Vice opening | 155 mm |
| Blade size | 1735 x 0.9 x 20 mm |
| Net / Gross weight | 34 / 38 kg |
| Dimensions | 980 x 430 x 550 mm |
