Description

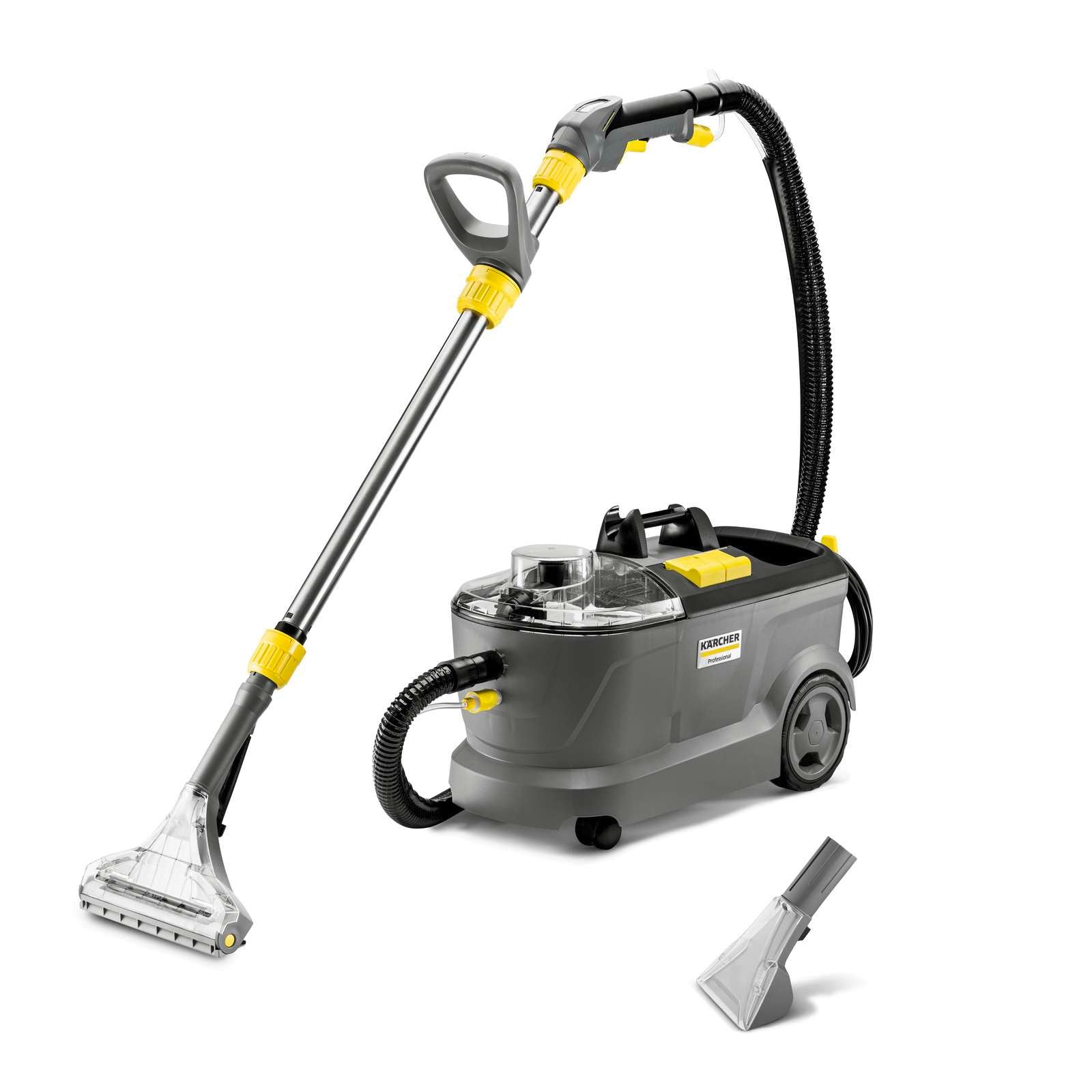

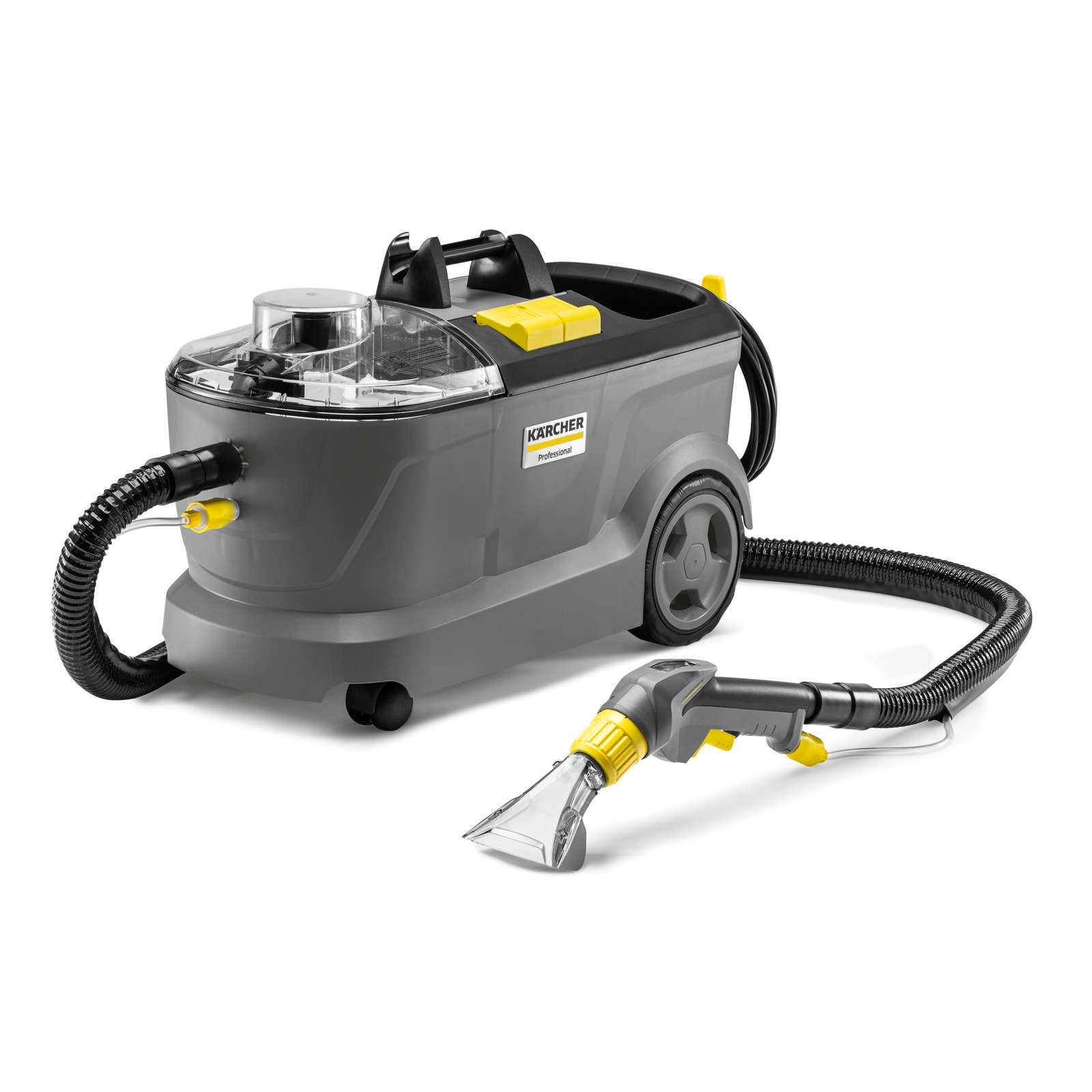

Professional carpet and upholstery cleaner Puzzi 10/1

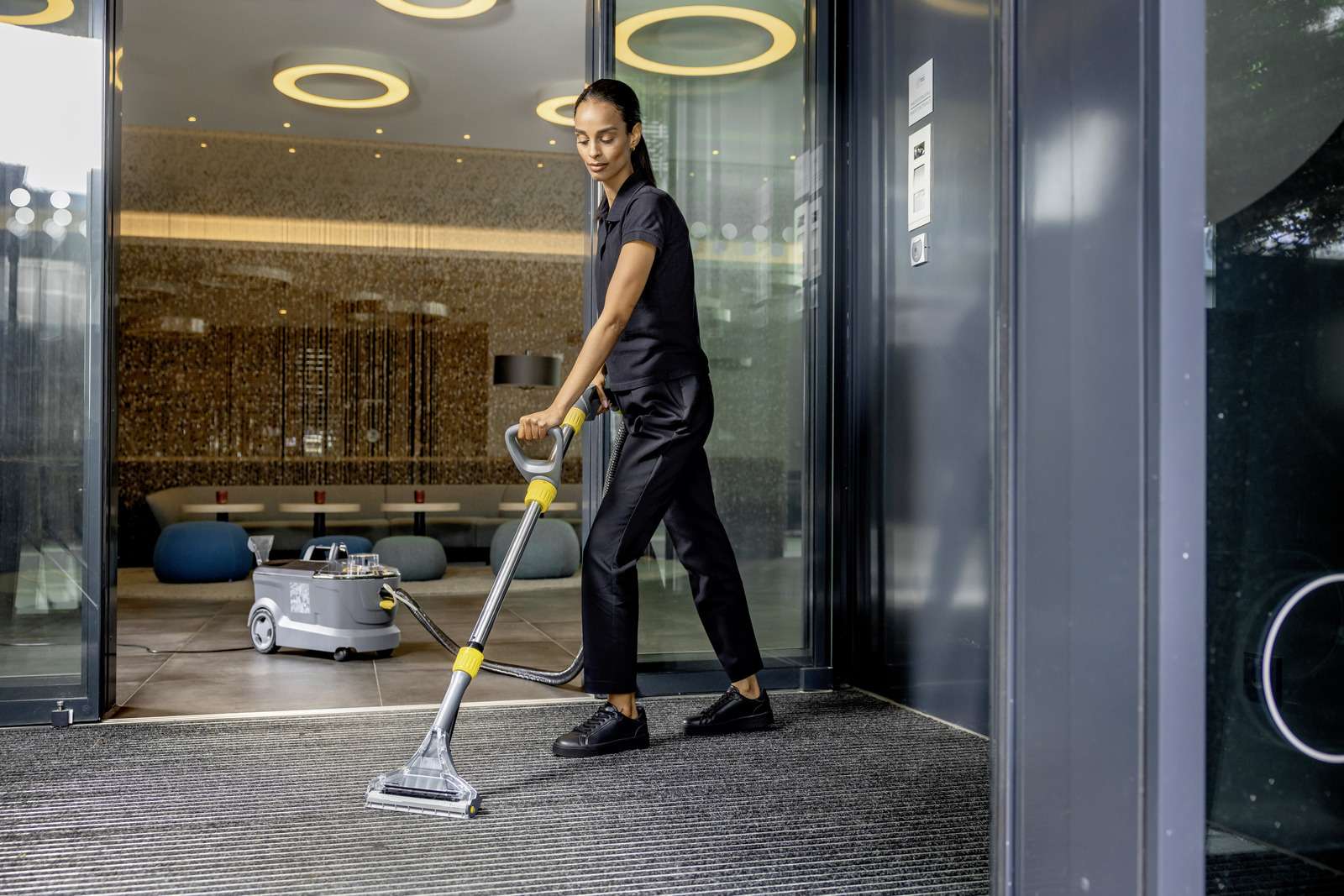

The Puzzi 10/1 spray-extraction machine is ideal for cleaning armchairs, carpets, and textile surfaces in automotive environments, conference halls, or hotels. Spray-extraction machine with flexible suction, compact and robust polypropylene housing, impact-resistant and corrosion-resistant. The 10 L clean water tank features a practical filter to protect the pump, with a maximum level indicator. Liquid suction shut-off is automatic, and the dirty water tank is removable for easy emptying.
Technical data
| Max. area performance (m²/h) | 20 - 25 |
| Air flow rate (l/s) | 74 |
| Vacuum (mbar/kPa) | 254 / 25.4 |
| Water spray rate (l/min) | 1 |
| Water spray pressure (bar) | 1 |
| Clean/dirty water tank (l) | 10 / 9 |
| Turbine power (W) | 1250 |
| Pump power (W) | 40 |
| Power supply (V/Hz) | 220 - 240 / 50 - 60 |
| Cable length (m) | 7.5 |
| Color | anthracite |
| Weight without accessories (kg) | 10.5 |
| Weight with packaging (kg) | 16.1 |
| Dimensions (L x W x H) (mm) | 690 x 325 x 440 |
Scope of supply
- Upholstery nozzle
- Detergents: RM 760 Tabs, 2 piece(s)
- Spray-extraction hose (m): 2.5 m
- Cable hook
- Floor nozzle: 240 mm

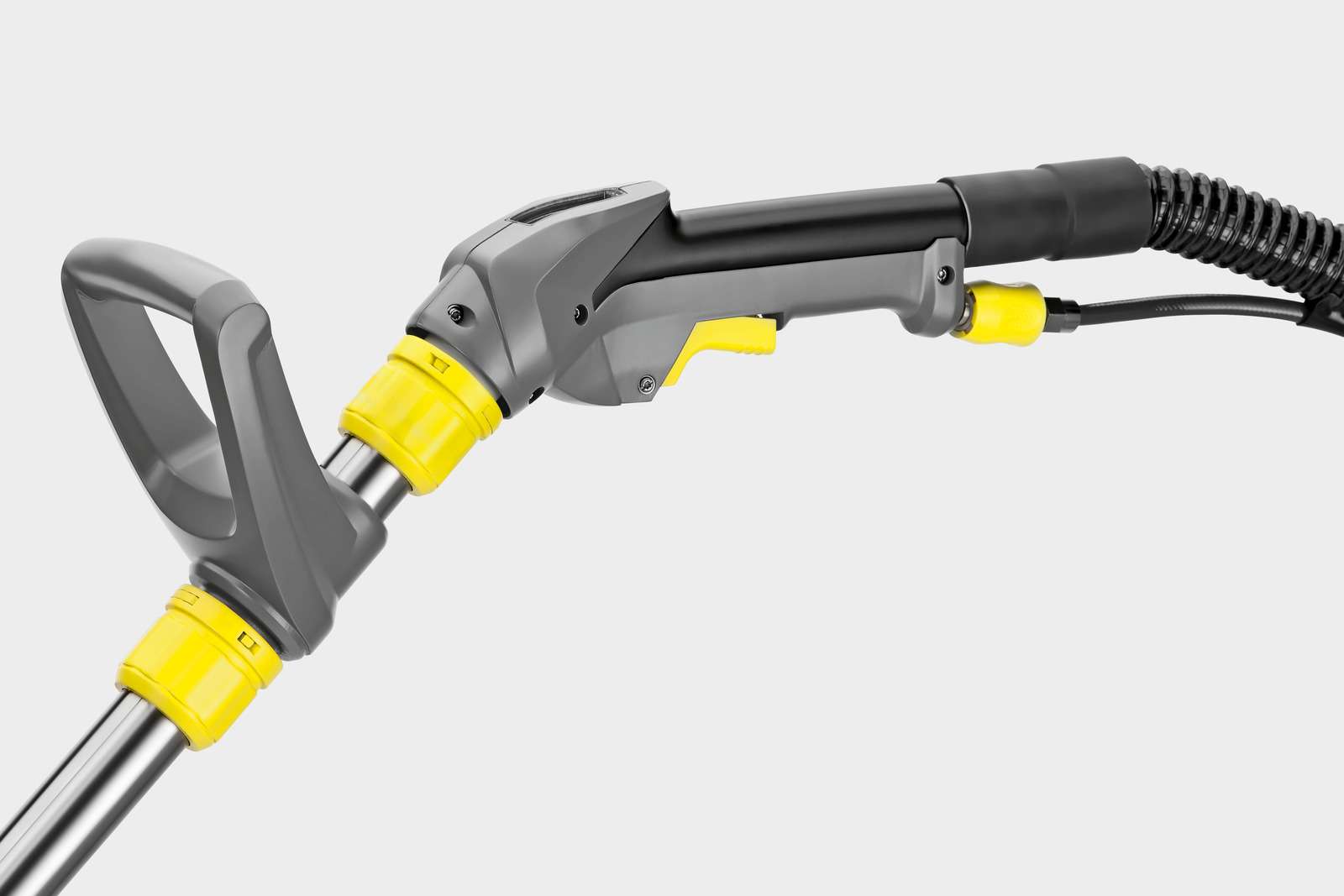

- Spray/suction gun
- D-handle for spray/suction hose
- Removable 2-in-1 container
- Spray-extraction hose: 1 piece(s)
Equipment

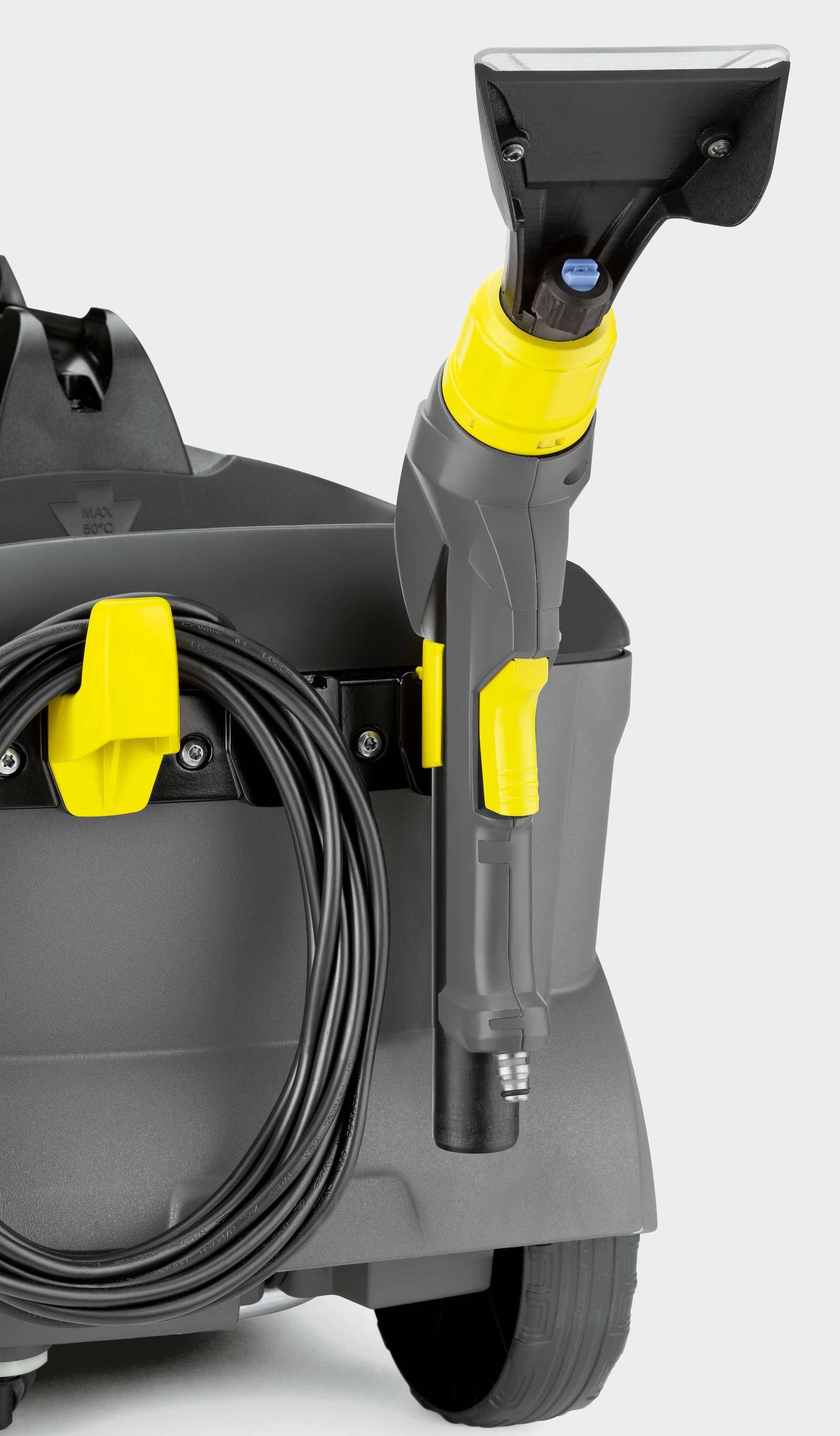

- Integrated holder for upholstery nozzle/cleaning nozzle
- Integrated holder for floor nozzle
- Nozzle: upholstery nozzle, blue
