Description
HDS 10/21-4 M high-pressure cleaner
User-friendly, powerful hot water high-pressure cleaner with water-cooled 4-pole electric motor, eco!efficiency mode and 2 detergent tanks. The HDS 10/21-4 M is one of the most powerful hot water high-pressure cleaners in the mid-range and also impresses with its sophisticated ergonomics and high level of user-friendliness. The low-speed, 4-pole, water-cooled electric motor, the robust 3-piston axial pump with ceramic piston, and the eco!efficiency mode ensure maximum performance and reliable, economical operation. The energy-saving EASY!Force Advanced HP trigger gun with servo control and the 1050-millimeter-long spray lance with patented nozzle technology, as well as the EASY!Lock quick-release fasteners, are included as standard for effortless and time-saving work. Many other equipment and performance details are also impressive, such as the optimized burner design, the 2 detergent tanks, the convenient mobility concept, the extensive safety technology, the simple operation with a single switch, and the smart accessory storage options.
Technical data
Electrical connection (Ph/V/Hz) |
3 / 400 / 50 |
Flow rate (l/h) |
500 - 1000 |
Working pressure (bar/MPa) |
30 - 210 / 3 - 21 |
Temperature (12°C feed) (°C) |
min. 80 - max. 155 |
Connected power (kW) |
8 |
Fuel oil consumption, at full load (kg/h) |
7.3 |
Diesel consumption in eco!efficiency mode (kg/h) |
5.8 |
Electric cable (m) |
5 |
Fuel tank (l) |
25 |
Weight (with accessories) (kg) |
160.2 |
Weight with packaging (kg) |
170.1 |
Dimensions (L x W x H) (mm) |
1330 x 750 x 1060 |
Scope of supply
Gun: EASY!Force Advanced
High-pressure hose length: 10 m
High-pressure hose type: Longlife
High-pressure hose specifications: DN 8,400 bar
Spray lance: 1050 mm
Power nozzle
Servo Control
Equipment

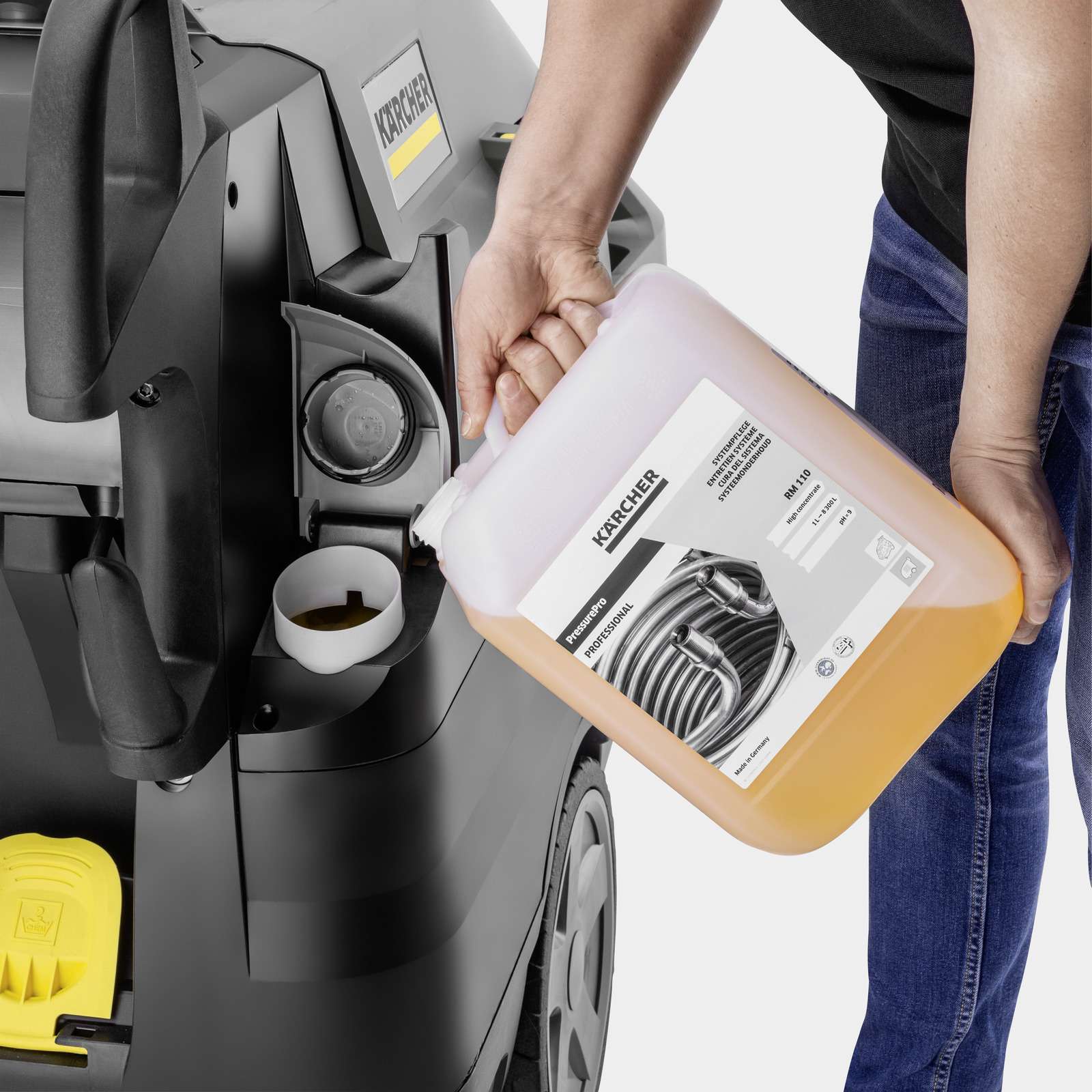

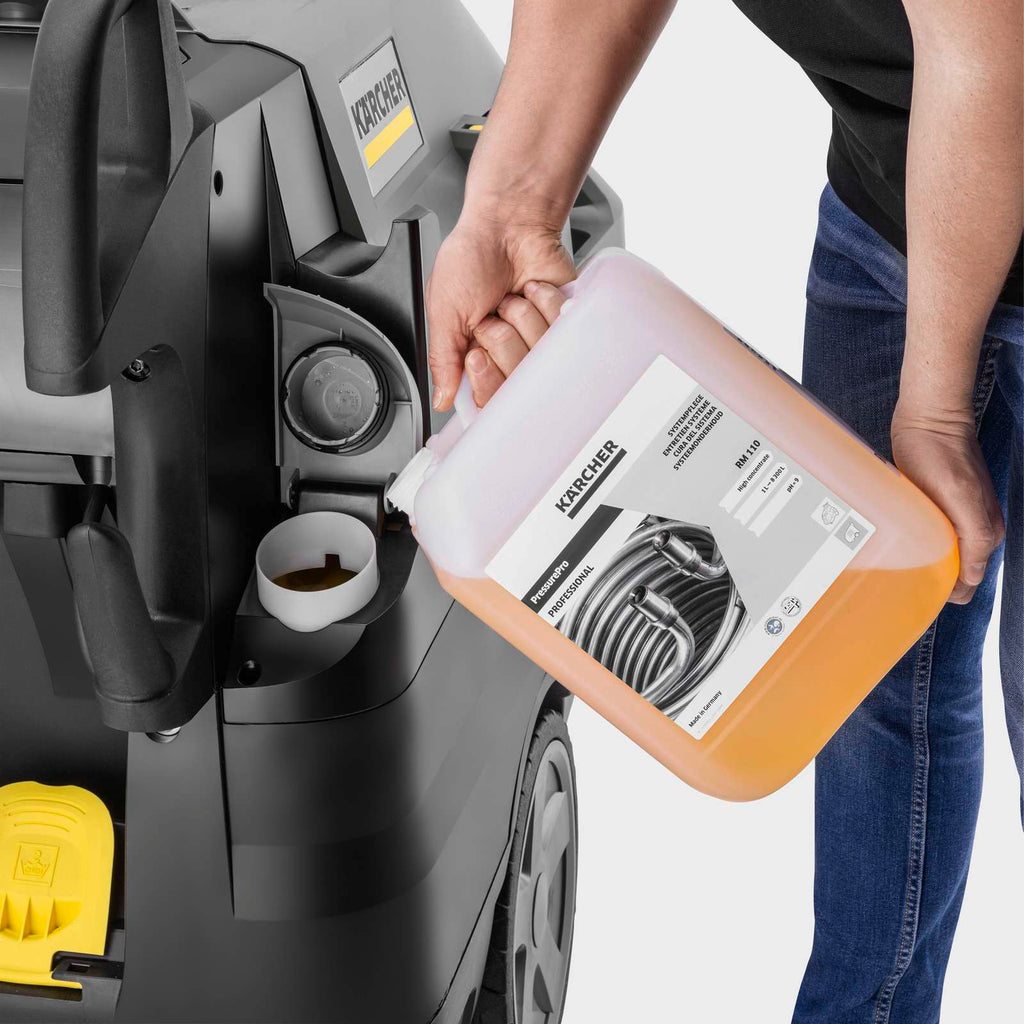

Cleaning agent function: 10-liter tank
ANTI!Twist (anti-twist)
Externally refillable tanks: cleaning agent, pro
Controls with indicator lights
Pressure switch
Plug for polarity reversal (three-phase)
2 cleaning agent tanks
Protection against dry running
