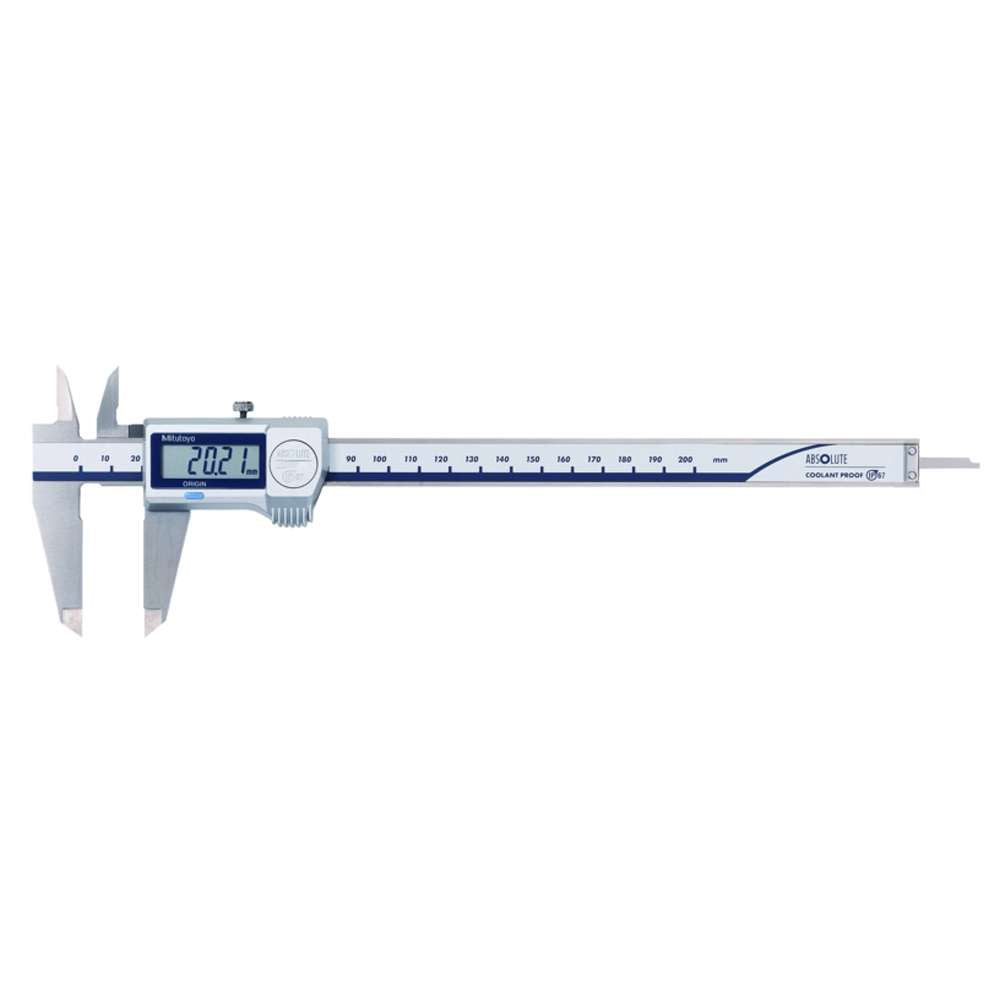

IP67 Waterproof ABS Caliper 0–200 mm, Blade Type

The IP67 waterproof ABS 0–200 mm blade-type caliper, without data output, is a measuring instrument designed to provide precision, reliability, and durability even in the most demanding work environments. Thanks to its IP67 certification, this caliper is fully protected against liquids and dust, allowing accurate measurements even in the presence of lubricants, coolants, and metal dust.

Compliant with EN60529 standards, the instrument can be temporarily fully immersed in water without sustaining damage, making it ideal for machine shops, industrial maintenance departments, and applications in challenging environmental conditions.

The ABS (absolute) system allows measurements to start immediately upon power-on, without the need for zero-setting, while the smooth-sliding slider ensures stable, precise, and fluid movement. The high-contrast LCD display, with 9 mm characters, facilitates easy reading and reduces eye strain even during prolonged work sessions.

Thanks to the long-lasting battery, up to approximately 5 years under normal use, this IP67 caliper ensures extended autonomy and minimal maintenance, guaranteeing efficiency and continuity in daily operations.

Technical Specifications

• Model: CD-P20P

• Measuring range: 0 – 200 mm

• Resolution: 0.01 mm

• Maximum permissible error (full range): ±0.02 mm

• Maximum permissible error S MPE: ±0.04 mm

• Depth rod: flat

• Response speed: unlimited

• Display: high-contrast LCD, 9 mm character height

• ABS system (absolute): yes

• Automatic power-off after 20 minutes of inactivity: yes

• Low battery alarm: yes

• Data output: no

• Battery life: approx. 5 years

• Weight: 198 g

• Supplied with: protective case and 1 battery included
