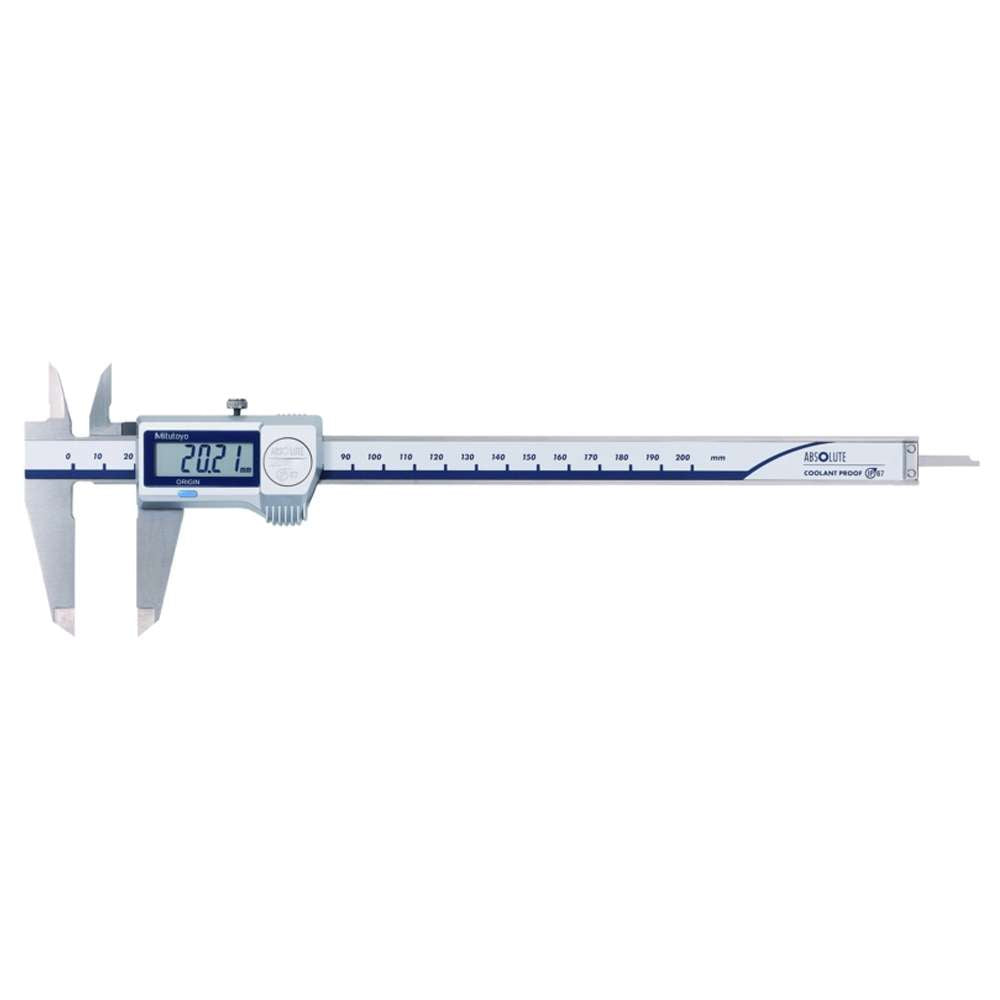

IP67 Waterproof ABS Caliper 0–200 mm, Blade Type

The IP67 waterproof ABS 0–200 mm blade-type caliper, without data output, is a measuring instrument designed to provide precision, reliability, and durability even in the most demanding work environments. Thanks to its IP67 certification, the caliper is protected against liquids and dust, allowing reliable measurements even in the presence of lubricants, coolants, and metal dust.

Compliant with EN60529 standards, the instrument can be temporarily fully immersed in water without sustaining damage, making it ideal for machine shops, industrial maintenance departments, and applications in challenging environmental conditions.

The ABS (absolute) system allows measurements to start immediately upon power-on, without the need for zero-setting, while the smooth-sliding slider ensures stable and precise movement. The high-contrast LCD display, with 9 mm characters, provides clear readings and reduces eye strain, even during prolonged work sessions.

Thanks to the exceptional battery life, up to approximately 5 years under normal usage conditions, this IP67 caliper provides long-lasting performance with minimal maintenance, ensuring continuity and efficiency in daily operations.

Technical Specifications

• Model: CD-P20P

• Measuring range: 0 – 200 mm

• Resolution: 0.01 mm

• Maximum permissible error (full range): ±0.02 mm

• Maximum permissible error S MPE: ±0.04 mm

• Depth rod: flat

• Response speed: unlimited

• Display: high-contrast LCD, 9 mm character height

• ABS system (absolute): yes

• Automatic power-off after 20 minutes of inactivity: yes

• Low battery alarm: yes

• Data output: no

• Battery life: approx. 5 years

• Weight: 198 g

• Supplied with: protective case and 1 battery included
