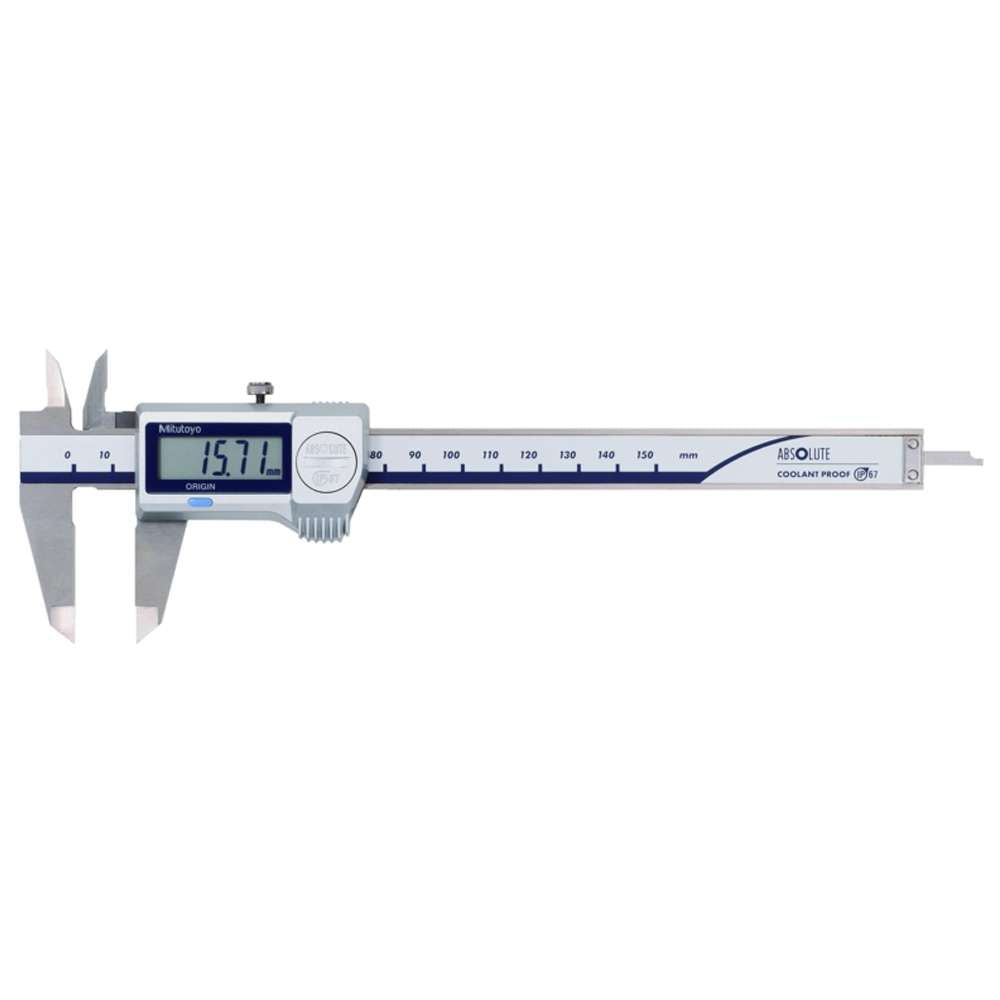

IP67 Waterproof ABS Caliper 0–150 mm, Blade Type

The IP67 waterproof ABS 0–150 mm blade-type caliper, without data output, is a measuring instrument designed to provide precision, reliability, and durability even in the most demanding environments. Thanks to its IP67 certification, the caliper resists liquids and dust, allowing reliable measurements even in the presence of lubricants, coolants, and metal dust.

Compliant with EN60529 standards, the instrument can withstand temporary full immersion in water without damage, making it ideal for machine shops, industrial maintenance departments, and applications in challenging environmental conditions.

The ABS (absolute) system allows measurements to start immediately upon power-on, without the need for zero-setting, while the smooth-sliding slider ensures stable and precise movement. The high-contrast LCD display, with 9 mm characters, makes readings clear and reduces eye strain even during prolonged use.

Thanks to the exceptional battery life, up to approximately 5 years under normal usage conditions, the IP67 caliper provides long-lasting performance with minimal maintenance, ensuring efficiency and continuity in daily operations.

Technical Specifications

• Model: CD-P15P

• Measuring range: 0 – 150 mm

• Resolution: 0.01 mm

• Maximum permissible error (full range): ±0.02 mm

• Maximum permissible error S MPE: ±0.04 mm

• Depth rod: flat

• Response speed: unlimited

• Display: high-contrast LCD, 9 mm character height

• ABS system (absolute): yes

• Automatic power-off after 20 minutes of inactivity: yes

• Low battery alarm: yes

• Data output: no

• Battery life: approx. 5 years

• Weight: 168 g

• Supplied with: protective case and 1 battery included
