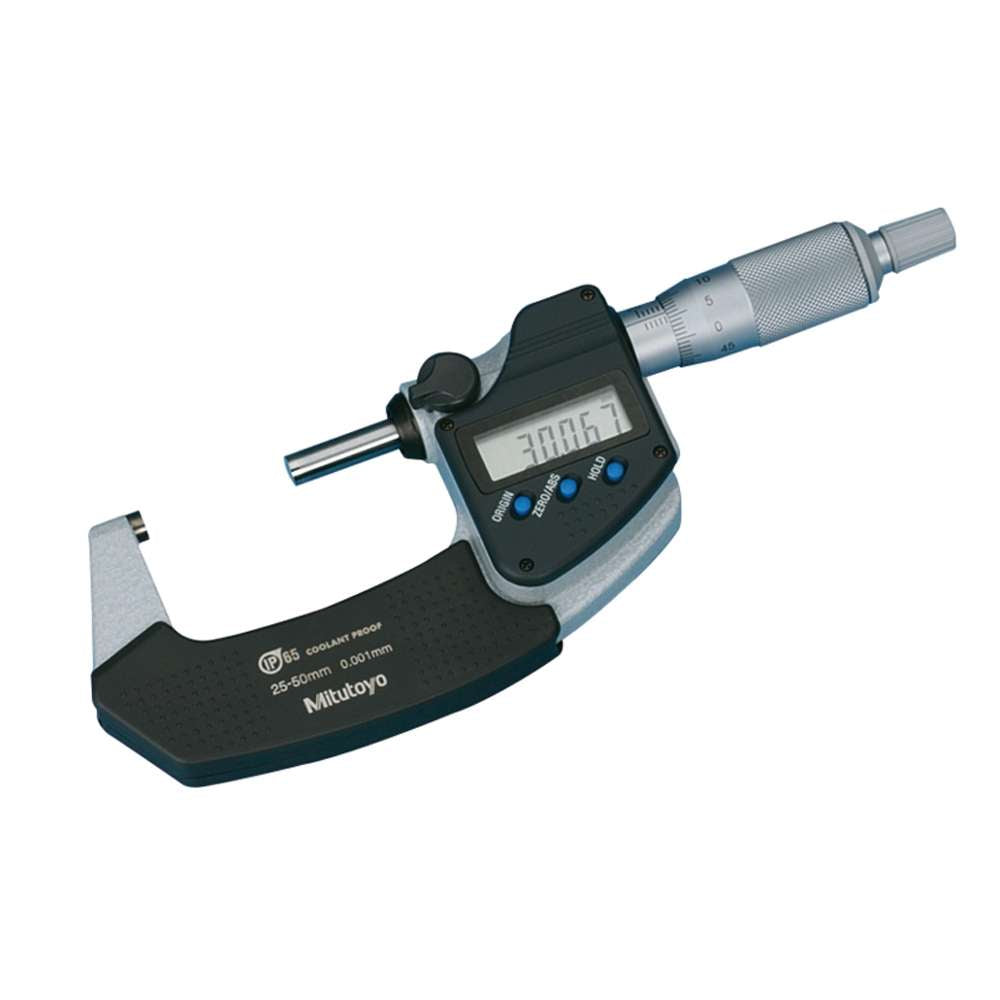

IP65 Digital Micrometer 25–50 mm – Without Data Output

The IP65 digital micrometer 25–50 mm is a professional measuring instrument designed to provide maximum precision, reliability, and durability even in the most demanding industrial environments. Its IP65 rating ensures complete protection against dust and water splashes, making it ideal for workshops and production areas where coolant fluids are present.

Constructed with oil-resistant materials for all plastic parts, this micrometer combines robustness with long operational life. The high-capacity battery allows up to 2.4 years of use, while the precision lapped hardened steel measuring surfaces ensure reliable and consistent readings.

The micrometer does not feature a data output, but includes advanced functions such as ZERO/ABS, spindle lock, HOLD, and automatic shut-off after 20 minutes, providing convenience and safety during daily operations.

Key Features:

• Model: MDC-50PX

• Digital / Analog: Digital

• Units: Metric

• Measuring range: 25–50 mm

• Resolution: 0.001 mm

• Maximum permissible error J MPE: ±1 µm

• Flatness: 0.3 µm

• Parallelism: 1 µm

• LCD Display, digit height 7.5 mm

• Measuring surfaces: precision lapped hardened steel

• Spindle: with lock, Ø 6.35 mm, thread pitch 0.5 mm

• Scale: matte chrome-plated thimble and sleeve, Ø 18 mm

• Measuring force: 5–10 N

• Power supply: SR-44 battery, approx. 2.4 years battery life

• Functions: ZERO/ABS, HOLD, LOCK, auto shut-off, battery warning

• Data output: No

• Weight: 330 g

• Includes: case, wrench, 1 battery, reference rod (from 25 mm), Inspection Certificate (0–50 mm range)

This IP65 digital micrometer is the ideal choice for those seeking precision, durability, and convenience in professional and industrial measurement applications.
